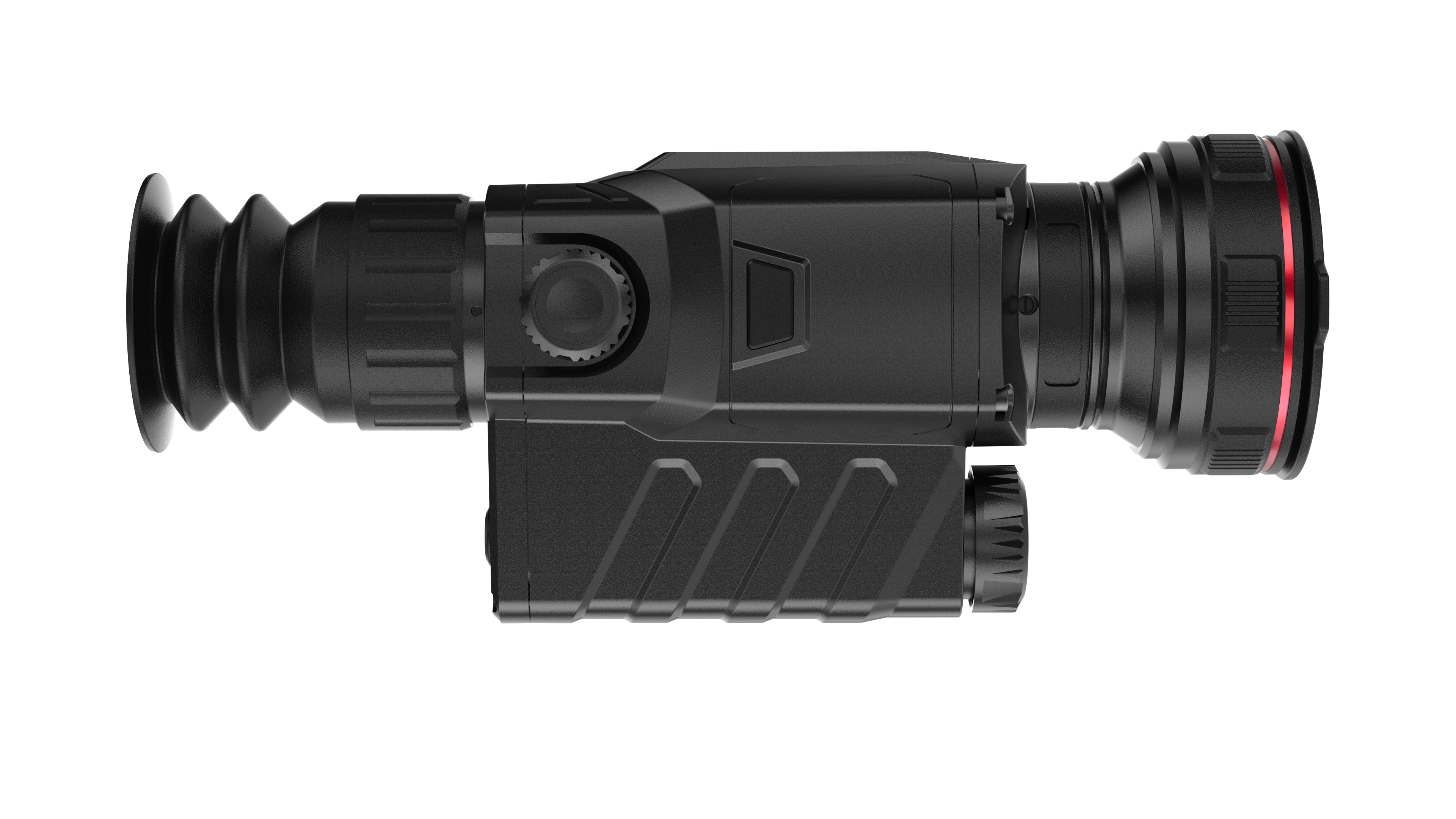

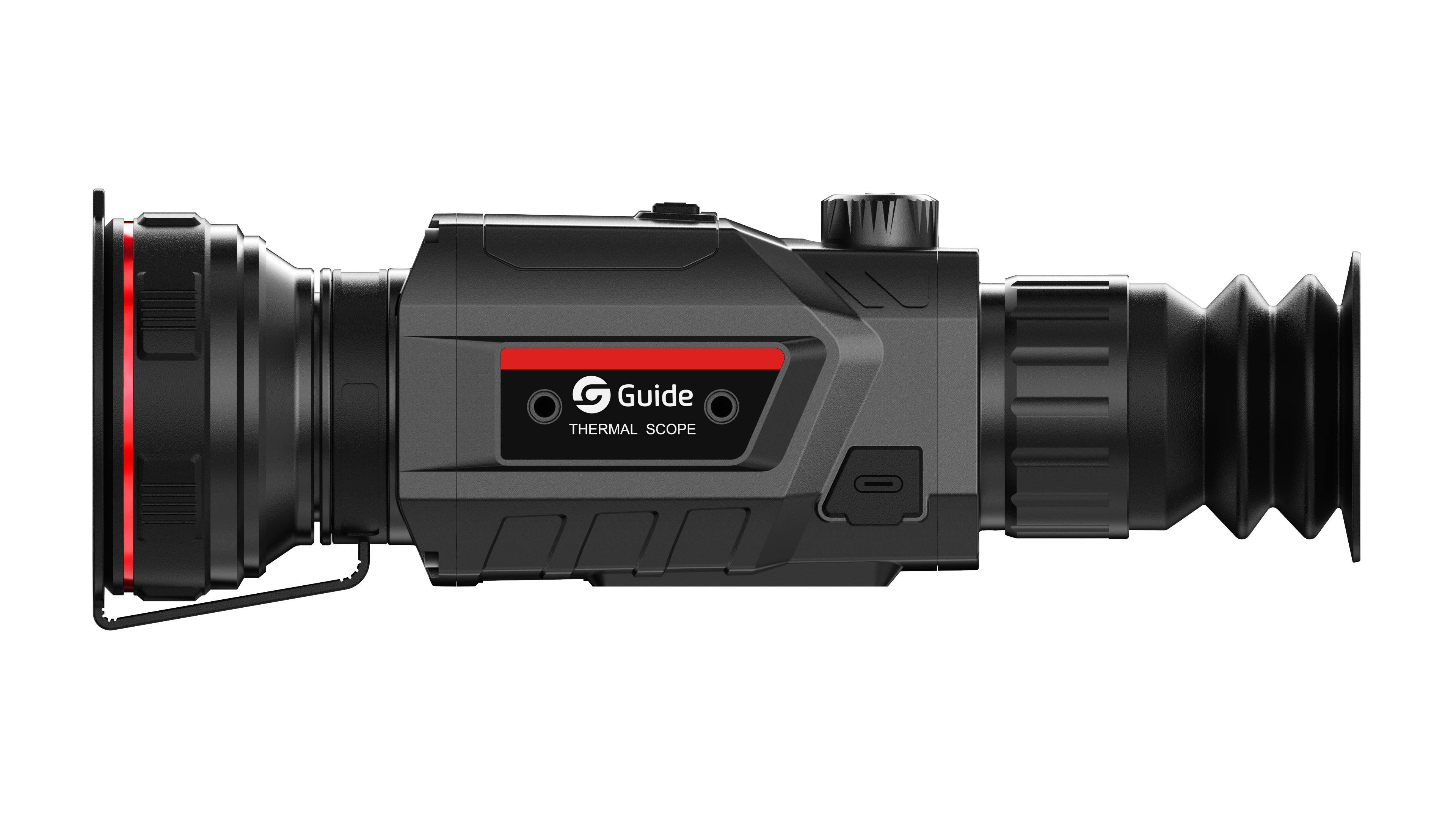

GUIDE Thermal Scope TR Series 384x288
€ 2.099,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TR420
Product information "GUIDE Thermal Scope TR Series 384x288"
TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 384 × 288 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.
TR420
384×288IR resolution
25mm F1.0Focal length
10.44°×7.87°FOV
1024×768OLED display
TR430
384×288IR resolution
35mm F1.0Focal length
7.50°×5.64°FOV
1024×768OLED display
TR420
384×288IR resolution
25mm F1.0Focal length
10.44°×7.87°FOV
1024×768OLED display
TR430
384×288IR resolution
35mm F1.0Focal length
7.50°×5.64°FOV
1024×768OLED display
TR450
384×288IR resolution
50mm F1.0Focal length
5.27°×3.95°FOV
1024×768OLED display
384×288IR resolution
50mm F1.0Focal length
5.27°×3.95°FOV
1024×768OLED display
High Definition Detector:
TR Series uses high-quality 12µm thermal imaging detectors with 384×288 resolution to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.
Full-color HD OLED Display:
The full-color 0.39-inch HD OLED display with 1024×768 pixels delivers sharp, richly contrasted, and vivid images that capture every moment in perfect detail.
One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
External Laser Range Finder: With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.
Six Color Palettes: The 6 color palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, and Blue Hot help increase chances for recognition and identification.
IP67 Protection Rating: With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.
OTA Upgrade: Support device firmware updates by connecting TargetIR for high efficiency.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 384×288, 12 μm NETD ≤30mK
Frame rate 50 Hz
Lens
Focal length 25 mm, F1.0, 35 mm, F1.0, 50 mm, F1.0
Field of angle 10.44°×7.87°, 7.50°×5.64°, 5.27°×3.95°
Optical zoom 2.4x, 3.3x, 4.7x
Digital zoom 1x ~ 4x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution 1024×768
Eyepiece Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x
Video output Analog video
Range Performance
Detection range 1000 m, 1400 m, 2000 m
Functions
Scene modes Enhanced, Highlight and Natural
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Others PIP, Hot spot tracking, Rough ranging
Power
Battery type Single, replaceable 18650 battery
Operating time ≥ 8 hours
Interface USB USB Type-C
Mechanical interface Picatinny
System Language settings English / Russian / German / French / Italian / Spanish / Japanese / Korean
Memory capacity 32GB
Environmental Operating temperature -30°C to 50°C
Storage temperature -45°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 800 G at 1 ms half sine pulse (as per IEC60068-2-27) Drop 1m
Encapsulation IP67
Certification IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3
Physical
Weight ≤540 g, ≤540 g, ≤590 g
Size 202×88×66 mm, 202×88×66 mm, 219×88×66 mm
Standard Device, Sight base (Choose from two specifications), Type C cable, 5V2A adapter (US, Britain, Australia and Europe),18650 battery, Battery charger, lens cap, eye mask, quick start guide, warranty card
Optional 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder
One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
External Laser Range Finder: With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.
Six Color Palettes: The 6 color palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, and Blue Hot help increase chances for recognition and identification.
IP67 Protection Rating: With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.
OTA Upgrade: Support device firmware updates by connecting TargetIR for high efficiency.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 384×288, 12 μm NETD ≤30mK
Frame rate 50 Hz
Lens
Focal length 25 mm, F1.0, 35 mm, F1.0, 50 mm, F1.0
Field of angle 10.44°×7.87°, 7.50°×5.64°, 5.27°×3.95°
Optical zoom 2.4x, 3.3x, 4.7x
Digital zoom 1x ~ 4x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution 1024×768
Eyepiece Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x
Video output Analog video
Range Performance
Detection range 1000 m, 1400 m, 2000 m
Functions
Scene modes Enhanced, Highlight and Natural
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Others PIP, Hot spot tracking, Rough ranging
Power
Battery type Single, replaceable 18650 battery
Operating time ≥ 8 hours
Interface USB USB Type-C
Mechanical interface Picatinny
System Language settings English / Russian / German / French / Italian / Spanish / Japanese / Korean
Memory capacity 32GB
Environmental Operating temperature -30°C to 50°C
Storage temperature -45°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 800 G at 1 ms half sine pulse (as per IEC60068-2-27) Drop 1m
Encapsulation IP67
Certification IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3
Physical
Weight ≤540 g, ≤540 g, ≤590 g
Size 202×88×66 mm, 202×88×66 mm, 219×88×66 mm
Standard Device, Sight base (Choose from two specifications), Type C cable, 5V2A adapter (US, Britain, Australia and Europe),18650 battery, Battery charger, lens cap, eye mask, quick start guide, warranty card
Optional 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder
