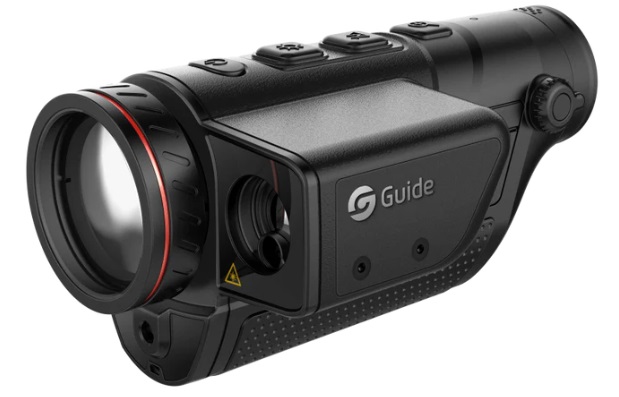

GUIDE Thermal Monocular TD Series Gen2 640x480
€ 2.069,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TD631LRF
Product information "GUIDE Thermal Monocular TD Series Gen2 640x480"
The TD Gen2 LRF Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.
Sensor
Lens
Display
Hardware
Power
Environmental
Physical
- 640x480IR Resolution
- 35mm/F1.0 Focal
- Length 640x400 AMOLED Display
- 8 Hours Battery Life
Sensor
- Type Uncooled VOx Infrared Detector, 8 to 14 μm
- Resolution 640×480@12μm
- NETD 35mK
- Frame rate 50Hz
Lens
- Objective lens 35mm, F1.0
- Field of view 12.5°×9.4°
- Magnification 1.7x~13.6x
- Detection range 1400m/yd
Display
- Display type 0.23’’ AMOLED 640×400
- Eyepiece Exit pupil distance 12 mm; Diopter: -4 to +2;
- Zoom: 18x
Hardware
- Laser rangefinder 600m/yd
- WIFI 2.4G
- Interface USB Type-C
Power
- Battery type Single, replaceable 18650 battery
- Operating time 8 hours
Environmental
- Encapsulation IP66
Physical
- Weight 330g
- Size 153×77×74mm
- Standard A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card
