GUIDE Thermal Clip-On TB Pro Series 640x512
€ 2.199,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TB650P

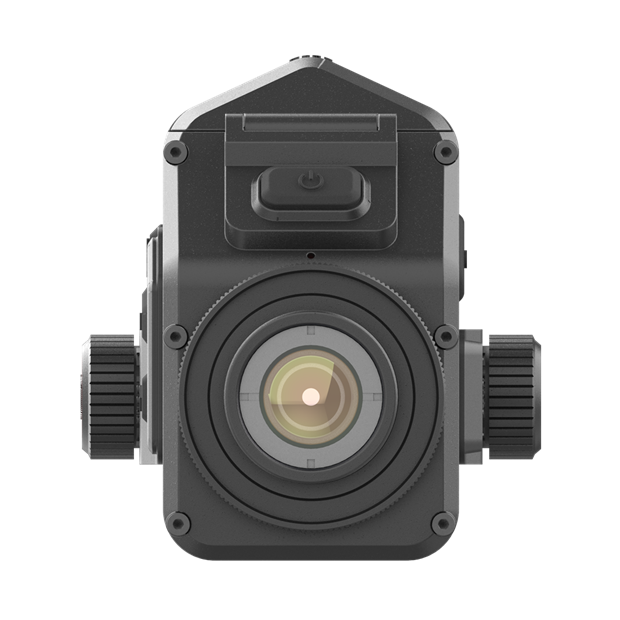

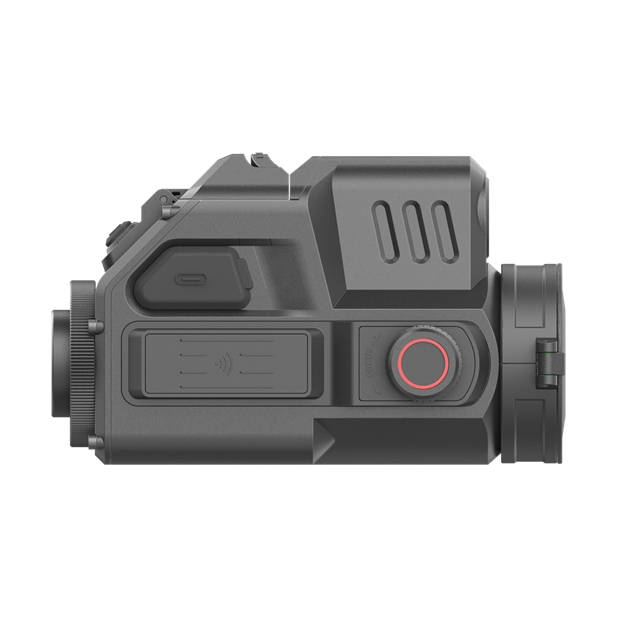

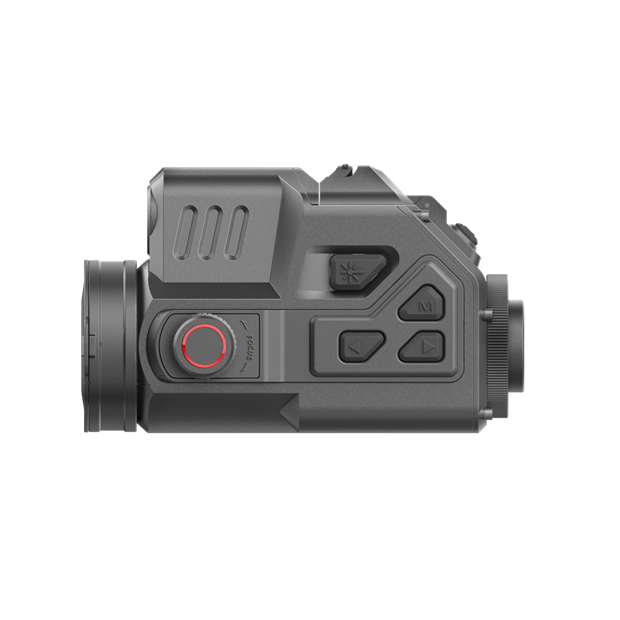

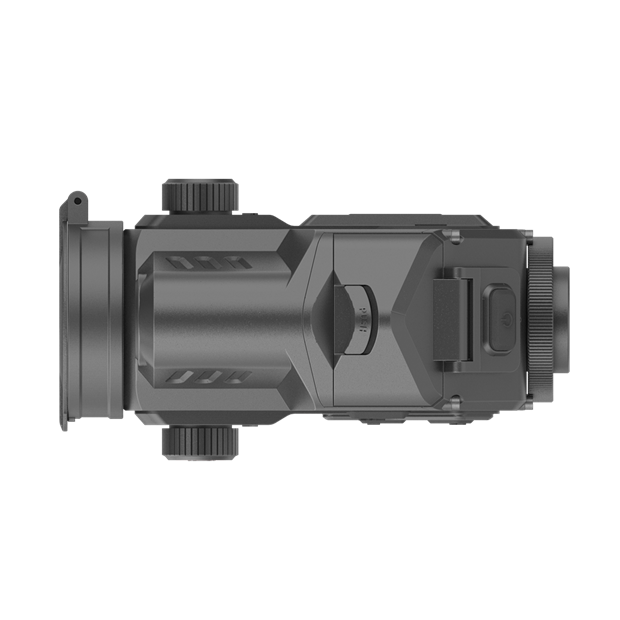

Product information "GUIDE Thermal Clip-On TB Pro Series 640x512"
The TB Pro Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than Guide's previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting
- NETD20mK
- AMOLED display1920×1080
- Detection Range2600m
- EncapsulationIP68
12um infrared detector
TB Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.
50mm focal length TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm.
2600m detection range A maximum detection range of 2600m, is capable of detecting targets in a long distance, which will help you to see farther and observe more in the outdoors.
50mm focal length TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm.
2600m detection range A maximum detection range of 2600m, is capable of detecting targets in a long distance, which will help you to see farther and observe more in the outdoors.
High protective iP68
The high protective features of lP68 dustproof and waterproof, 1000G/ms shock resistance, support your outdoor observation, hunting, or rescue tasks even in rain, fog, or mist weather.
FuII-HD AMOLED display
The 0.39"1920x1080 high-definition AMOLED screen, allows for a visual experience with vibrant colors and excellent image quality, significantly enhancing the comfort of observation.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×6.6°
FOV m @100m 15×12
Magnification 1x
Detection range 2600m/ 2800yd
Display
Display type 0.39'' AMOLED 1920x1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Exit pupil distance 20mm; Zoom: 6.8x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 9 hours
Environmental
Operating temp. -20 °C to 50 °C/ -4°F to +122°F
Shock 1000 G at 1 ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight(g/ oz) 582/ 20.53
Size(mm/ in) 161×89×97/ 6.34×3.50×3.82
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×6.6°
FOV m @100m 15×12
Magnification 1x
Detection range 2600m/ 2800yd
Display
Display type 0.39'' AMOLED 1920x1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Exit pupil distance 20mm; Zoom: 6.8x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 9 hours
Environmental
Operating temp. -20 °C to 50 °C/ -4°F to +122°F
Shock 1000 G at 1 ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight(g/ oz) 582/ 20.53
Size(mm/ in) 161×89×97/ 6.34×3.50×3.82
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
