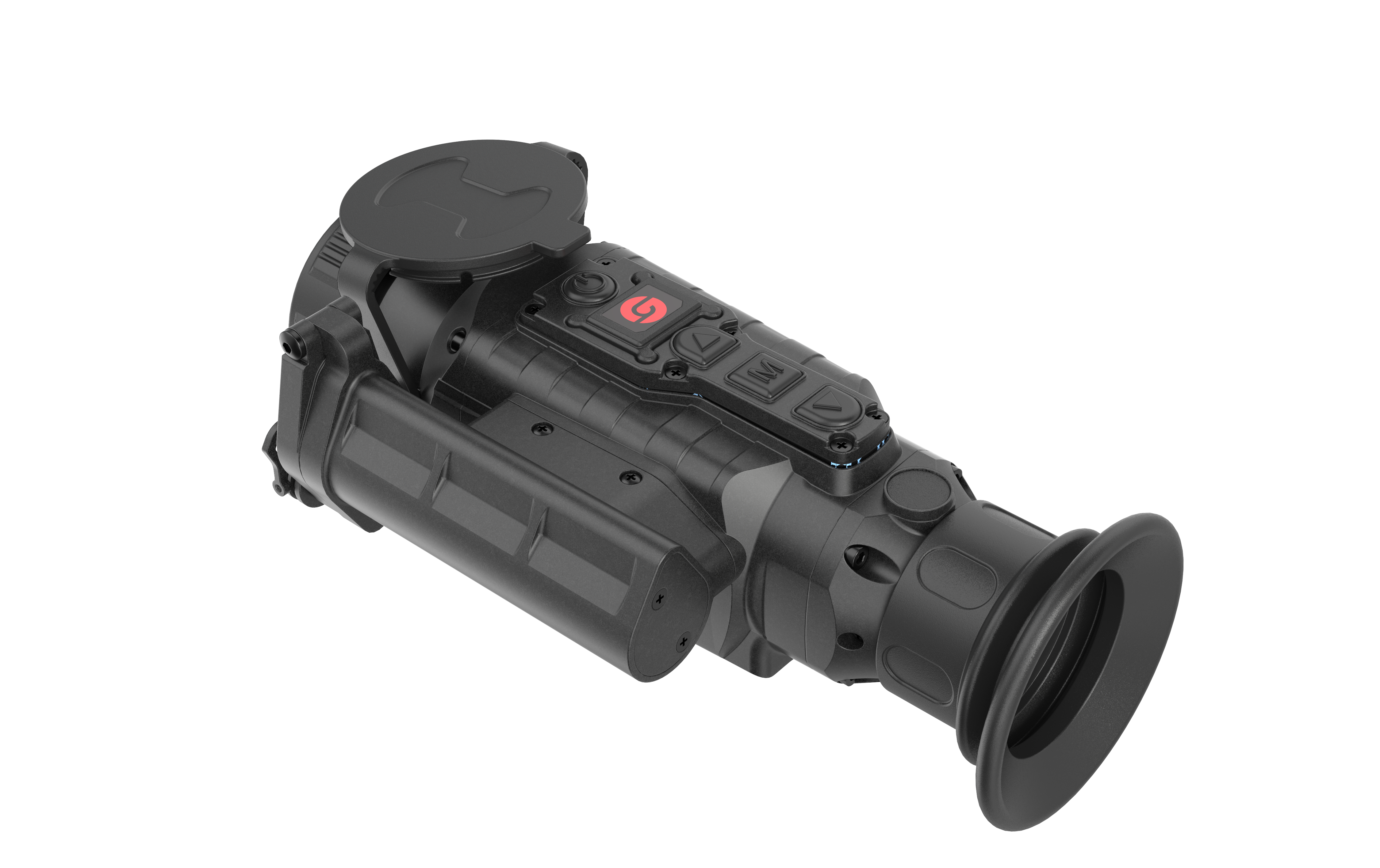

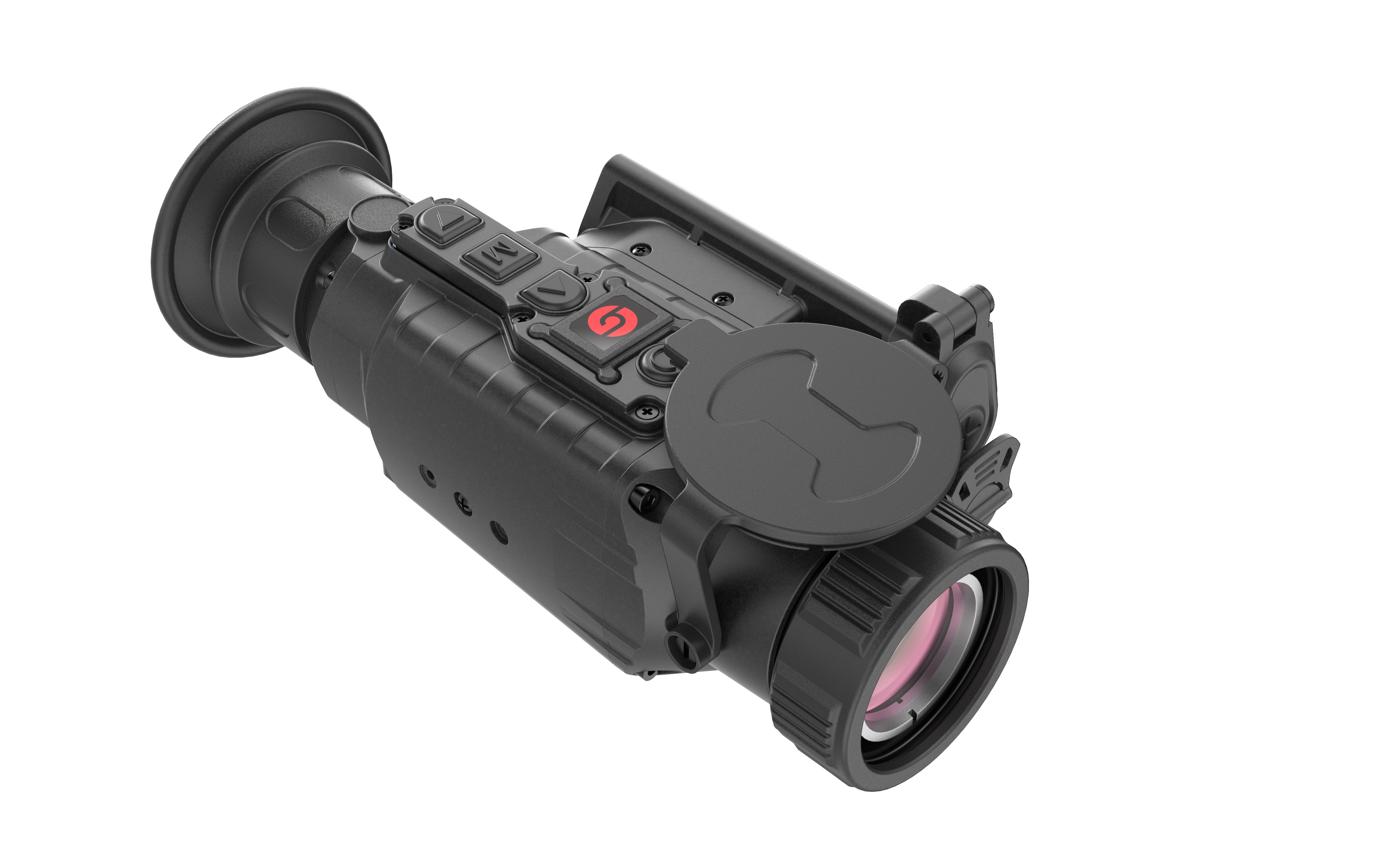

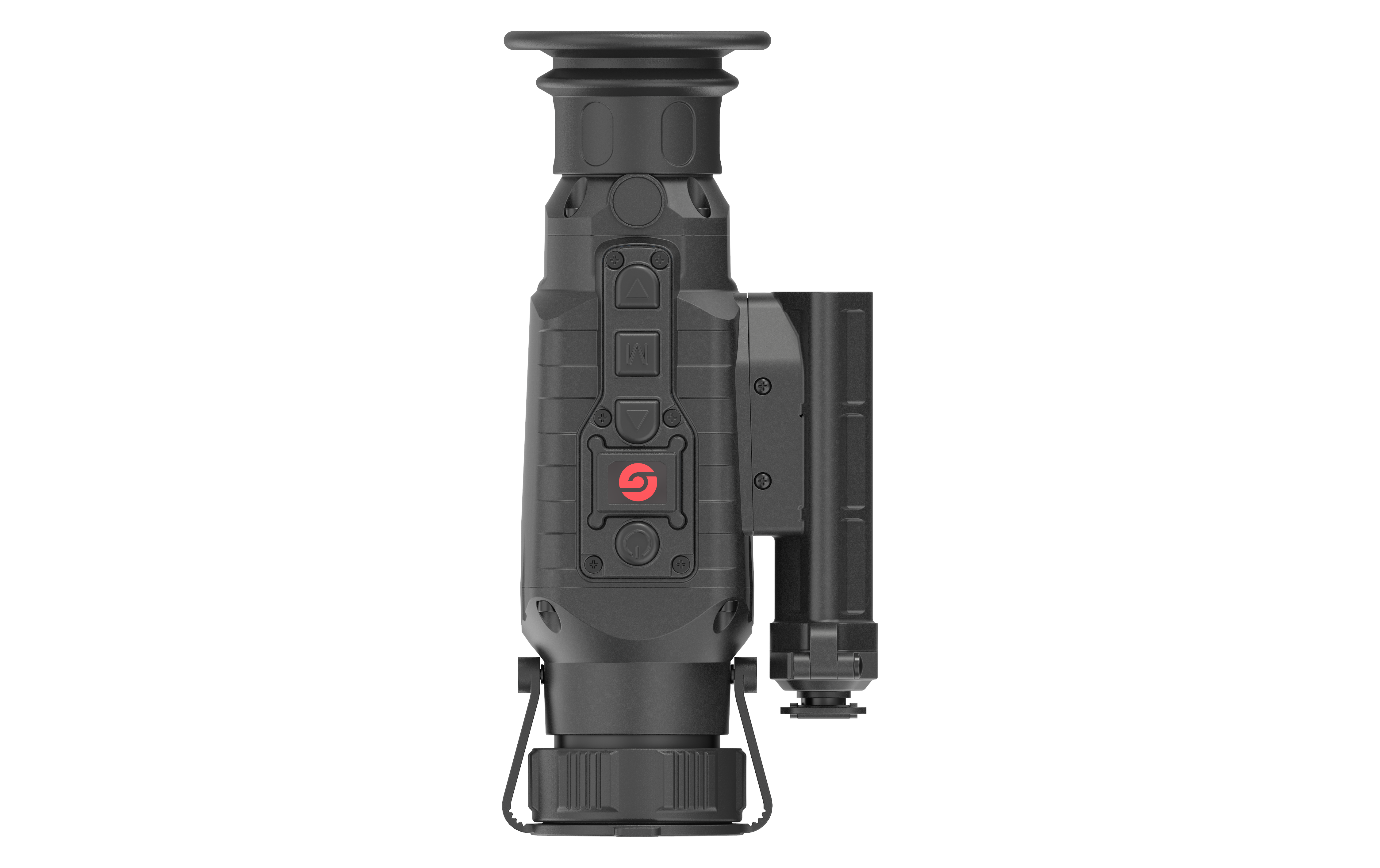

GUIDE Thermal Clip-On TA Series Gen2 384x288
€ 2.099,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TA421
Product information "GUIDE Thermal Clip-On TA Series Gen2 384x288 "

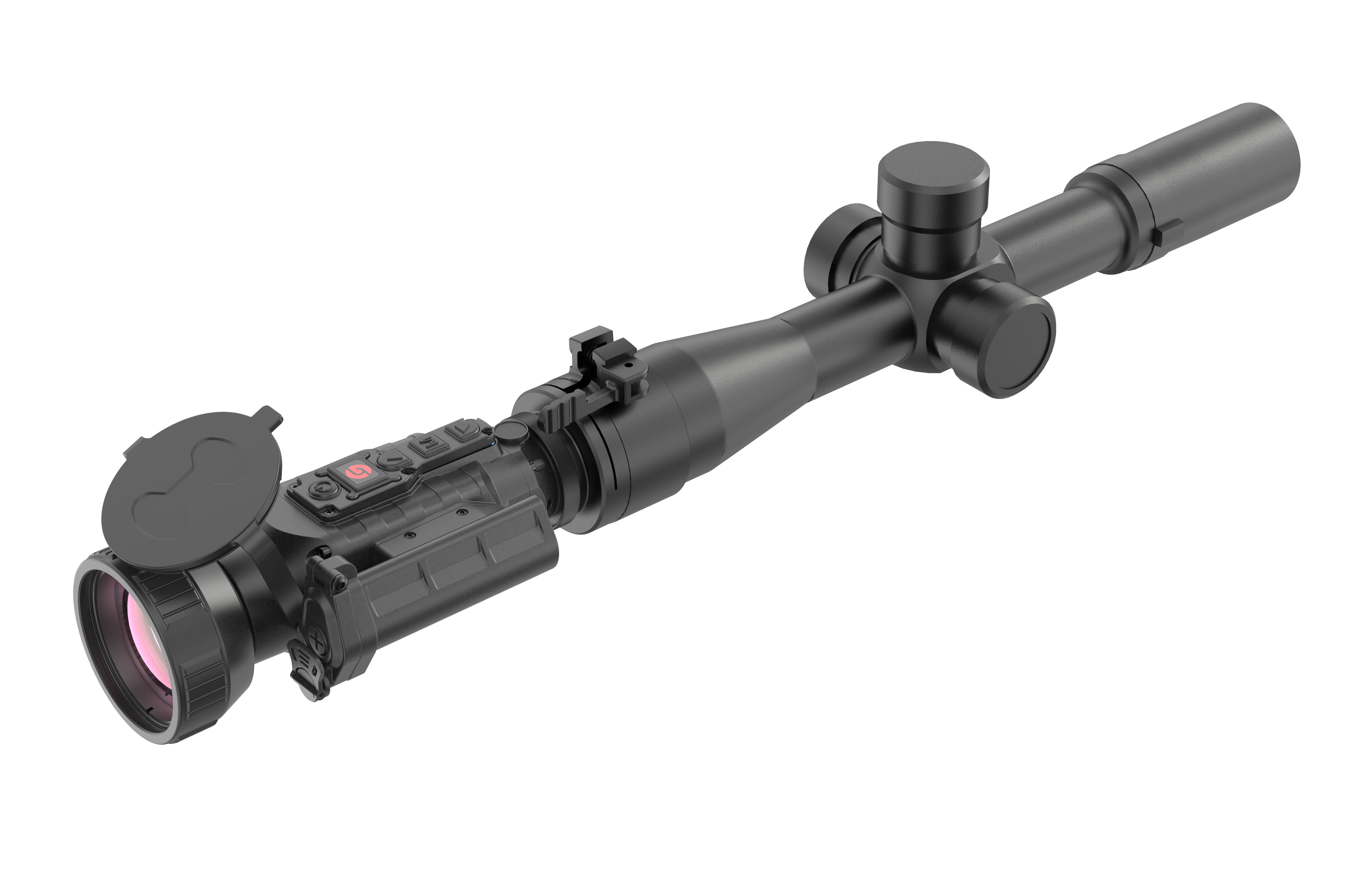

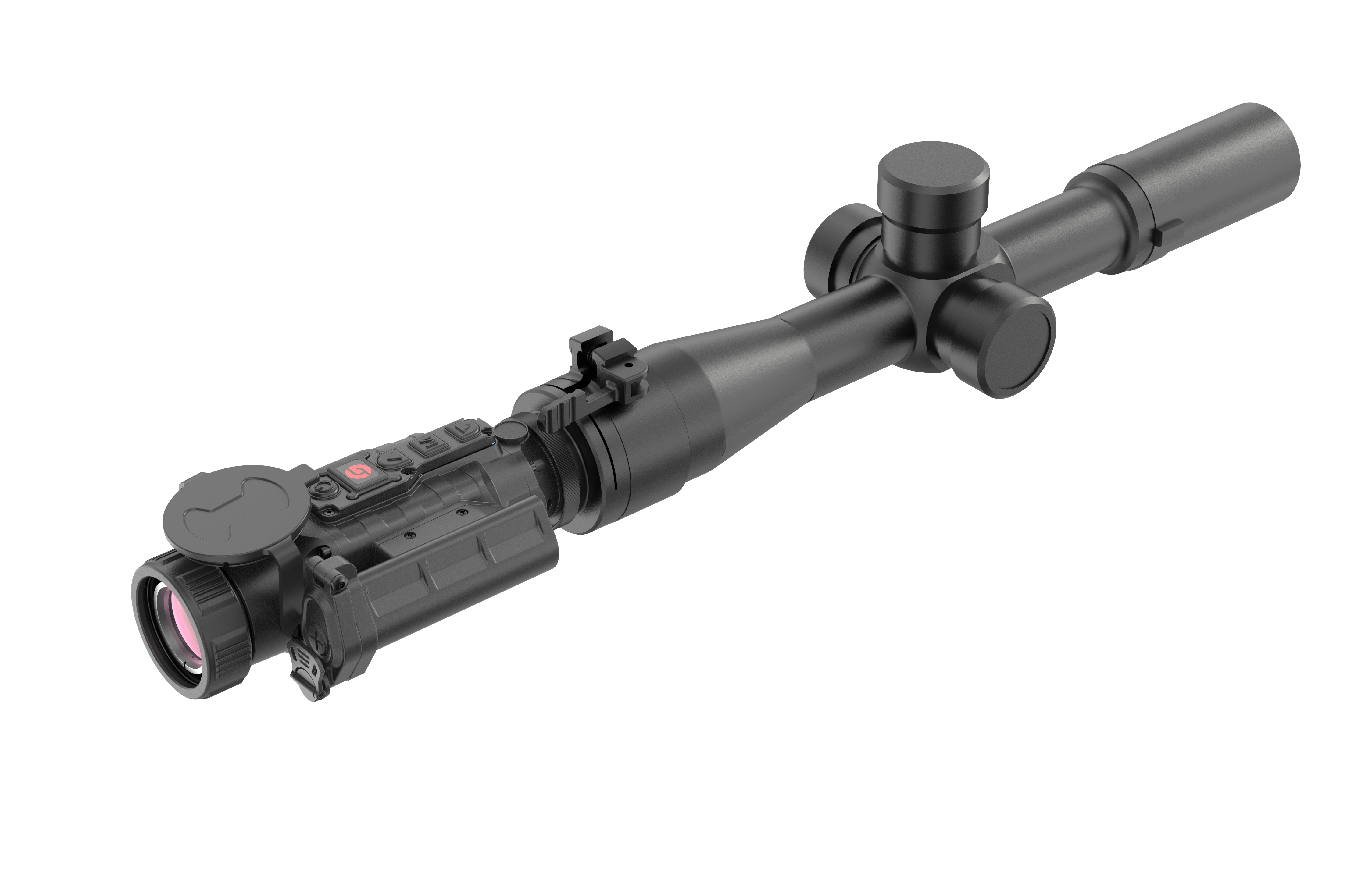

Featuring high-resolution thermal imaging detectors with with 400×300 and 640x480 pixel resolutions repsectively and HD OLED displays, TA Gen2 offers image of exceptional quality with high contrast and rich detail. While still being lightweight and modest in size, the attachment's revolutionary battery technology enables it to operate for a prolonged period of time. With other numerous useful features, it is a true thermal upgrade turning day scopes into powerful thermal imaging aiming systems.
TA421
384x288 IR Resolution
25mm; F1.1 Focal Length
14.9°×11.2°FOV
≥ 7 Hours Battery Life
TA431
384x288 IR Resolution
35 mm; F1.2 Focal Length
10.7°×8° FOV
≥ 7 HoursBattery Life
TA451
384x288 IR Resolution
50 mm; F1.2 Focal Length
7.5°×5.6° FOV
≥ 7 HoursBattery Life
TA421
384x288 IR Resolution
25mm; F1.1 Focal Length
14.9°×11.2°FOV
≥ 7 Hours Battery Life
TA431
384x288 IR Resolution
35 mm; F1.2 Focal Length
10.7°×8° FOV
≥ 7 HoursBattery Life
TA451
384x288 IR Resolution
50 mm; F1.2 Focal Length
7.5°×5.6° FOV
≥ 7 HoursBattery Life
Upgraded Detector:
The TA Gen2 uses high quality 17μm and 12 µm thermal imaging detectors with 400×300 and 640x480 pixel resolution respectively to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.

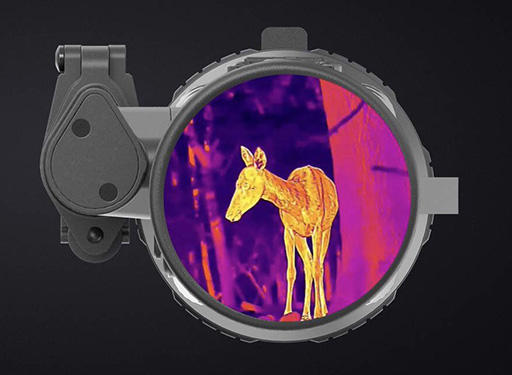

Double algorithm: The TDE-Tech and PureIR bring crisp, richly contrasted thermal imaging for enhanced identification of targets, their extremities and even the smallest details.
7 hours Super Long Battery Life: The standard 18650 battery provides enough power for up to 7 hours of operation time. Quick and simple battery replacement ensures continuous observation without disruptions.
Multiple scene modes, Highlight Target Clearly: "Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.

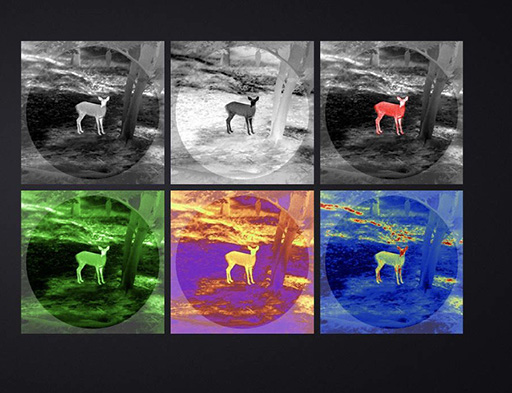

Multiple Color Palettes to Highlight the Target: Six color palettes: white hot, black hot, red hot, green hot, iron red, blue hot. Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.
One-click compensation to make image clearer: Two compensation methods are available to eliminate pepper noise, image jitter, stripe noise, etc., making images clearer.
IP67 Rated, Rugged and Durable: With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C to 50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC，ECA certification, etc.

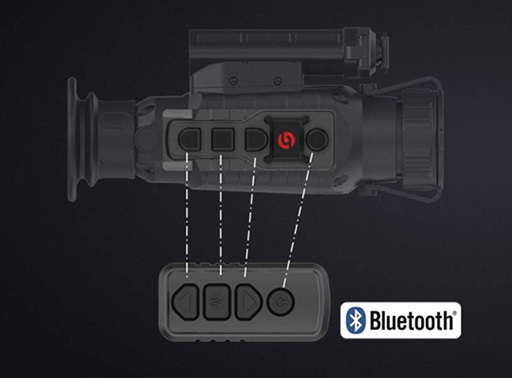

Wireless remote control: An optional Bluetooth Controller supports the remote control of the device. It has buttons same as those of the device.

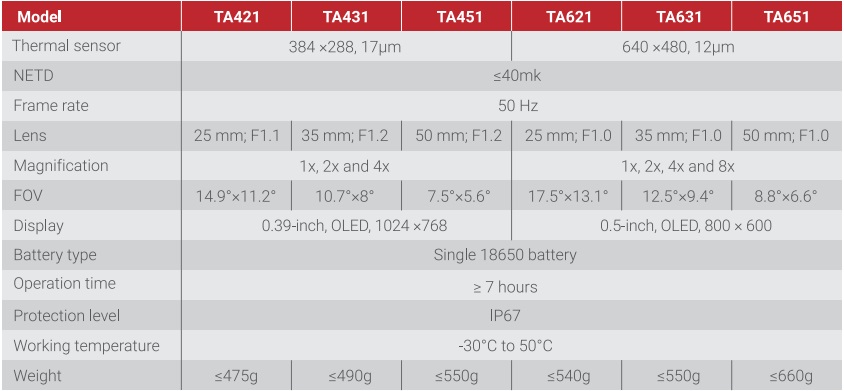

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 384×288, 17 μm
NETD ≤40mK
Frame rate 50 Hz
Lens
Focal length 25, 35, 50 mm
Field of angle 14.9°×11.2°, 10.7°×8°, 7.5°×5.6°
Optical zoom 1x
Digital zoom 1x, 2x and 4x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution 1024×768
Eyepiece Exit pupil distance ≥ 10 mm
Video output Analog video
Range Performance
Detection range 700 m, 1000 m, 1400 m
Functions
Scene modes Enhanced, Highlight and Natural
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
Supported Application TargetIR
Others Hot spot tracking
Power
Battery type Single 18650 battery
Operating time ≥ 7 hours
Interface
Video interface LEMO
Mechanical interface Picatinny
Environmental Operating temperature -30°C to 50°C
Storage temperature -45°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 500 G at 1 ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Certification IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport
Physical
Weight ≤475 g, ≤490 g, ≤550 g
Size 153×57×79 mm, 157×58×79 mm, 178×62×83 mm
Standard Device×1, Eye mask×1, Carry bag×1, 7-pin LEMO to USB cable×1, Battery charger×1, 18650 battery×1, Quick start guide×1, Warranty card×1
Optional External eyepiece, Adapter ring, Picatinny rail, Bluetooth remote control (with hook-and-loop fastener), 7-pin LEMO to USB and AV cable
Double algorithm: The TDE-Tech and PureIR bring crisp, richly contrasted thermal imaging for enhanced identification of targets, their extremities and even the smallest details.
7 hours Super Long Battery Life: The standard 18650 battery provides enough power for up to 7 hours of operation time. Quick and simple battery replacement ensures continuous observation without disruptions.
Multiple scene modes, Highlight Target Clearly: "Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.
Multiple Color Palettes to Highlight the Target: Six color palettes: white hot, black hot, red hot, green hot, iron red, blue hot. Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.
One-click compensation to make image clearer: Two compensation methods are available to eliminate pepper noise, image jitter, stripe noise, etc., making images clearer.
IP67 Rated, Rugged and Durable: With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C to 50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC，ECA certification, etc.
Wireless remote control: An optional Bluetooth Controller supports the remote control of the device. It has buttons same as those of the device.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 384×288, 17 μm
NETD ≤40mK
Frame rate 50 Hz
Lens
Focal length 25, 35, 50 mm
Field of angle 14.9°×11.2°, 10.7°×8°, 7.5°×5.6°
Optical zoom 1x
Digital zoom 1x, 2x and 4x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution 1024×768
Eyepiece Exit pupil distance ≥ 10 mm
Video output Analog video
Range Performance
Detection range 700 m, 1000 m, 1400 m
Functions
Scene modes Enhanced, Highlight and Natural
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
Supported Application TargetIR
Others Hot spot tracking
Power
Battery type Single 18650 battery
Operating time ≥ 7 hours
Interface
Video interface LEMO
Mechanical interface Picatinny
Environmental Operating temperature -30°C to 50°C
Storage temperature -45°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 500 G at 1 ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Certification IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport
Physical
Weight ≤475 g, ≤490 g, ≤550 g
Size 153×57×79 mm, 157×58×79 mm, 178×62×83 mm
Standard Device×1, Eye mask×1, Carry bag×1, 7-pin LEMO to USB cable×1, Battery charger×1, 18650 battery×1, Quick start guide×1, Warranty card×1
Optional External eyepiece, Adapter ring, Picatinny rail, Bluetooth remote control (with hook-and-loop fastener), 7-pin LEMO to USB and AV cable
