GUIDE Thermal Binocular TN Series 400x300
€ 2.899,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TN430
Product information "GUIDE Thermal Binocular TN Series 400x300"
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
TN430
400×300IR resolution
35mm/F1.2Focal Length
≤30mKNETD
2.3X~9.2XMagnification
TN450
400×300IR resolution
50mm/F1.2Focal Length
≤30mKNETD
3.2X~12.8XMagnification

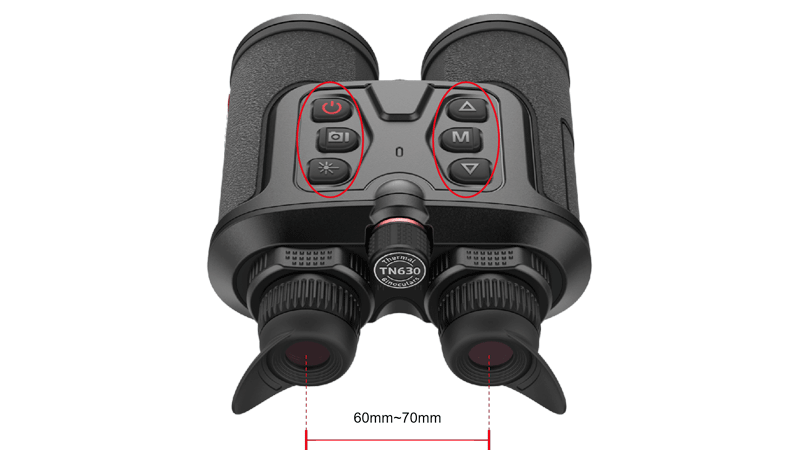

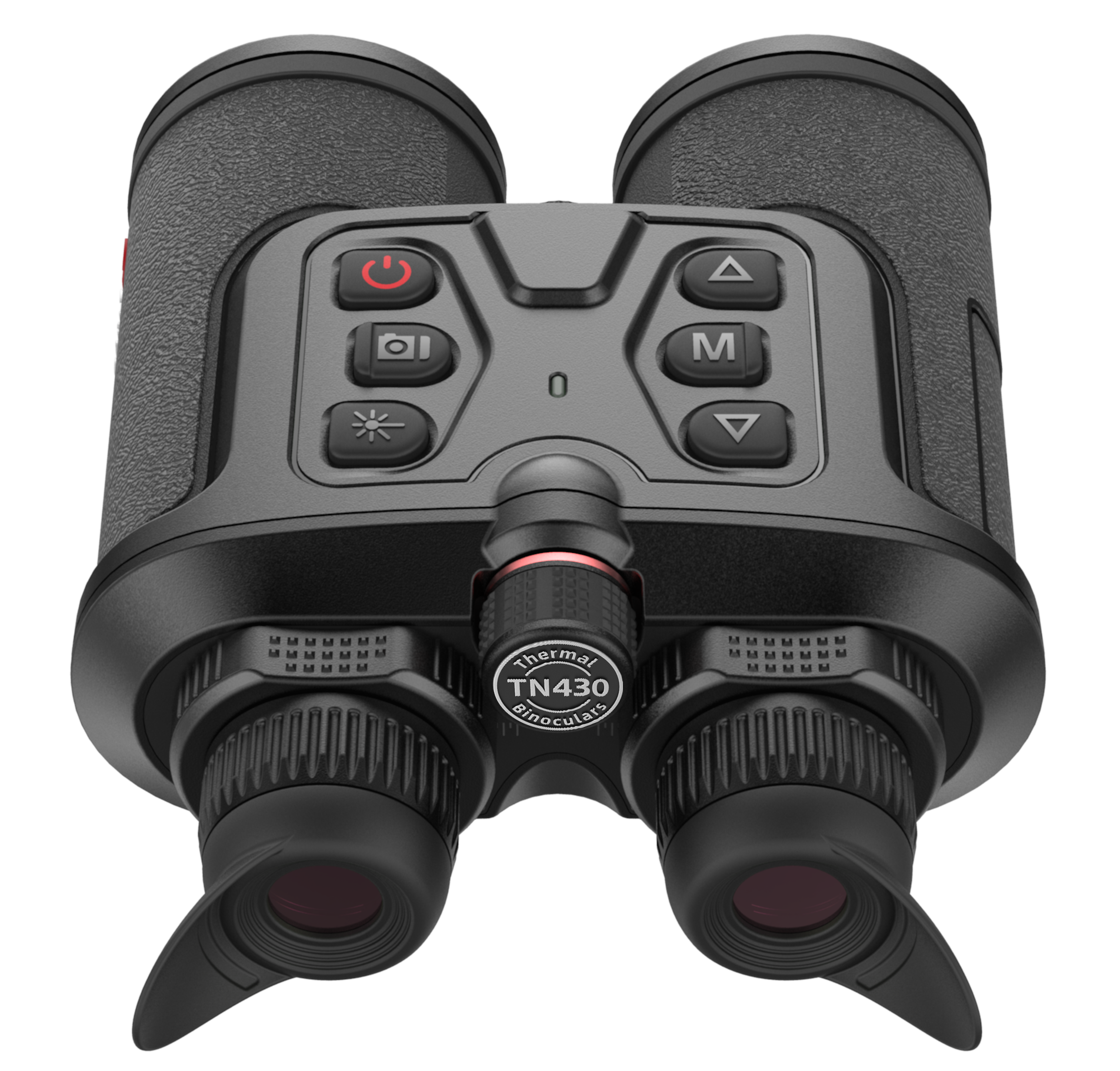

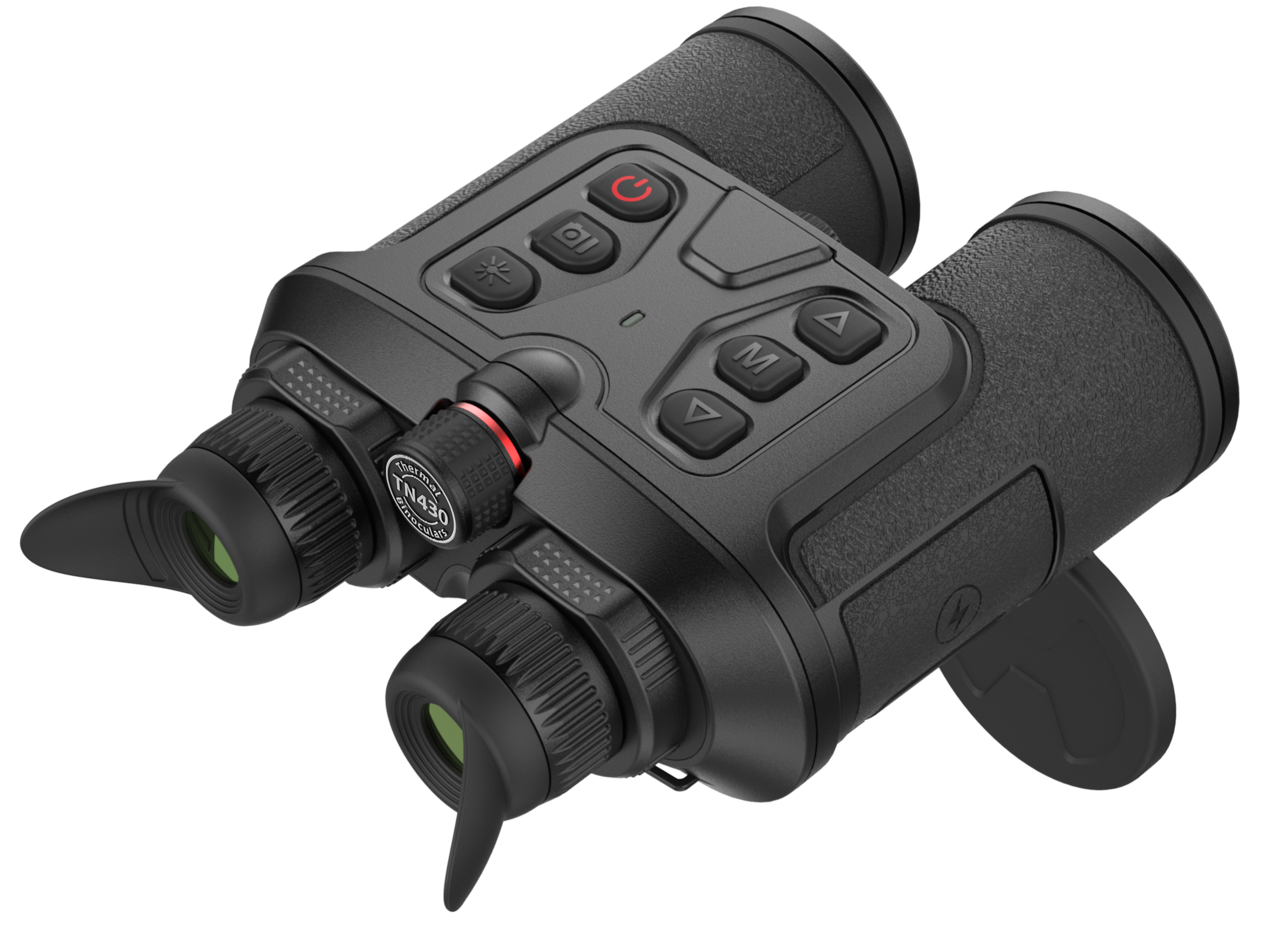

Ergonomic design Easy observation: Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.

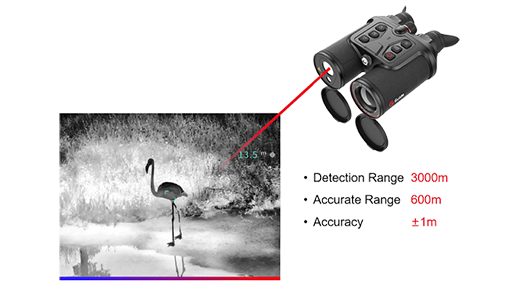

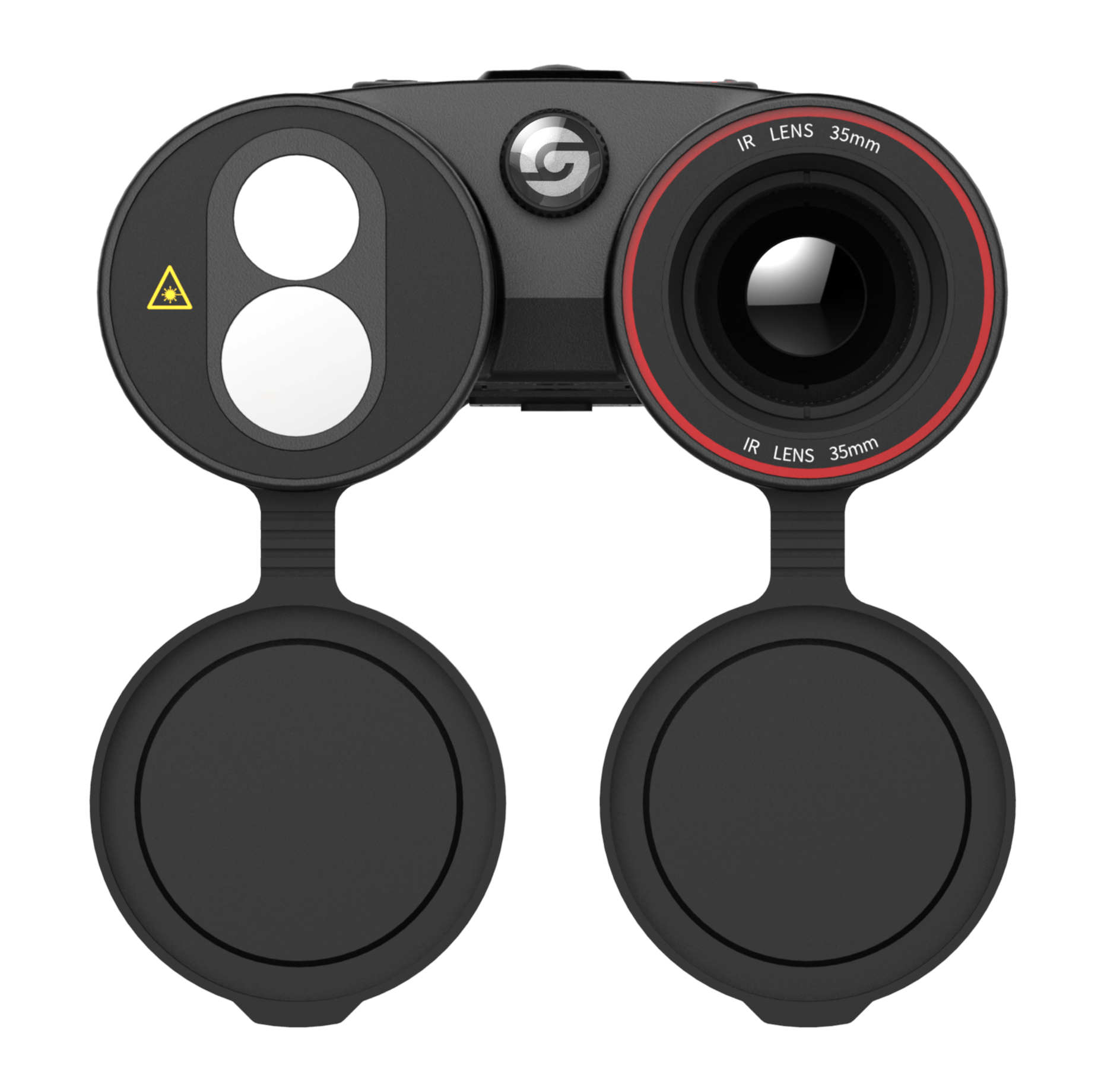

Quick location, All new experience: In the dark, laser ranging ensures accurate location with distance information.
High Quality Imaging In Day and Night: Up to 640 × 480 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.

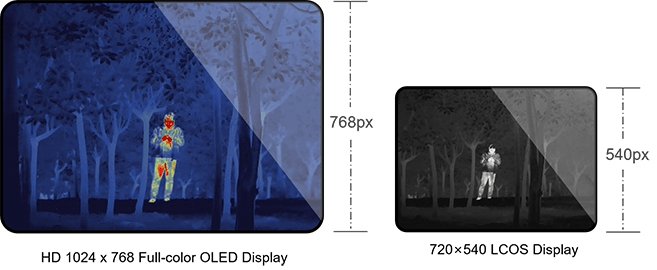

Full-color OLED display: 1024 x 768 Full-color OLED, High contrast, image details boost, Improving viewing comfort.

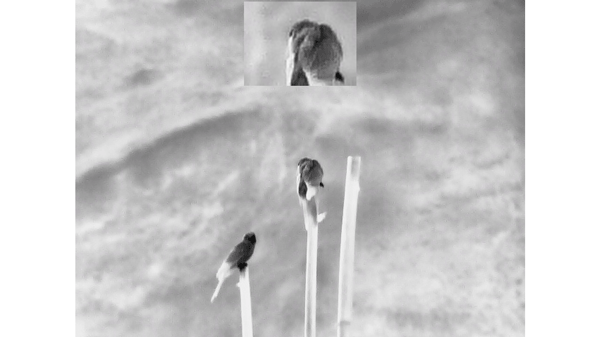

Well-designed PIP mode, highlighting the target PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor.

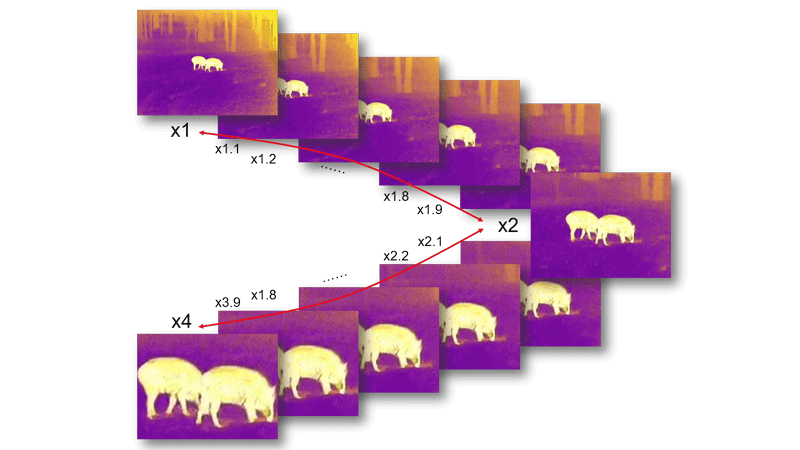

Smooth Zoom For Flexible Searching: Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly.

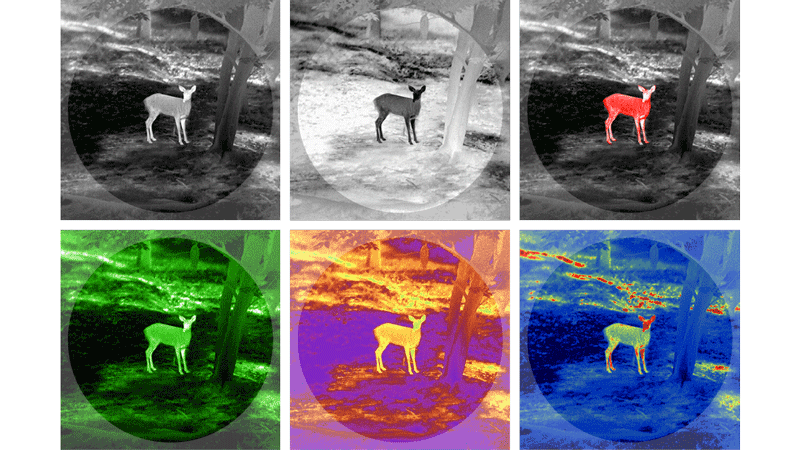

Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

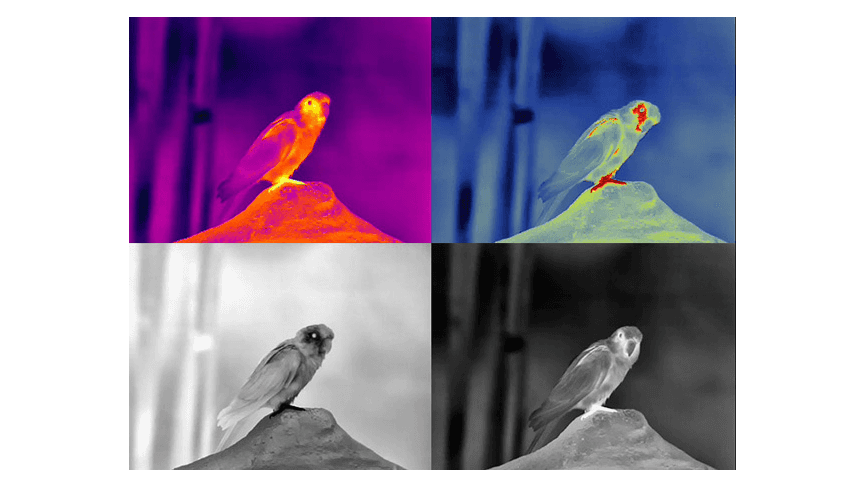

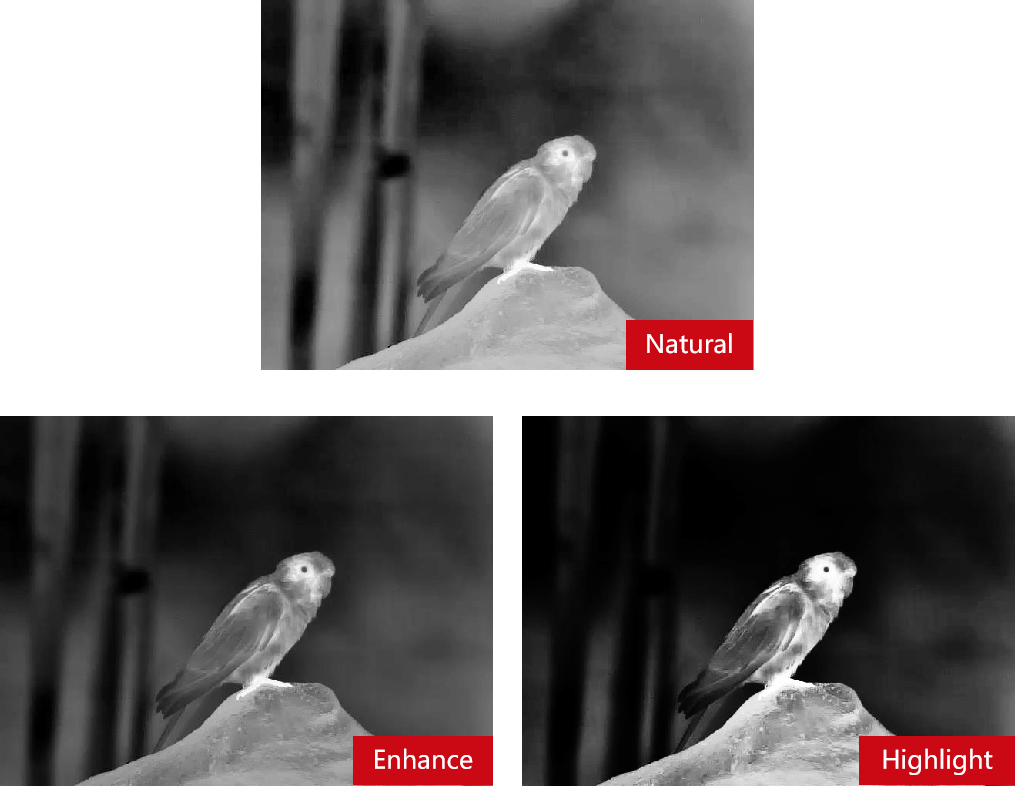

Multiple scene modes,Highlight Target Clearly: “Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.

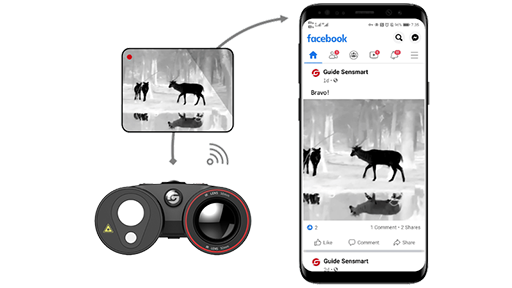

Photo and Video Recording: Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.

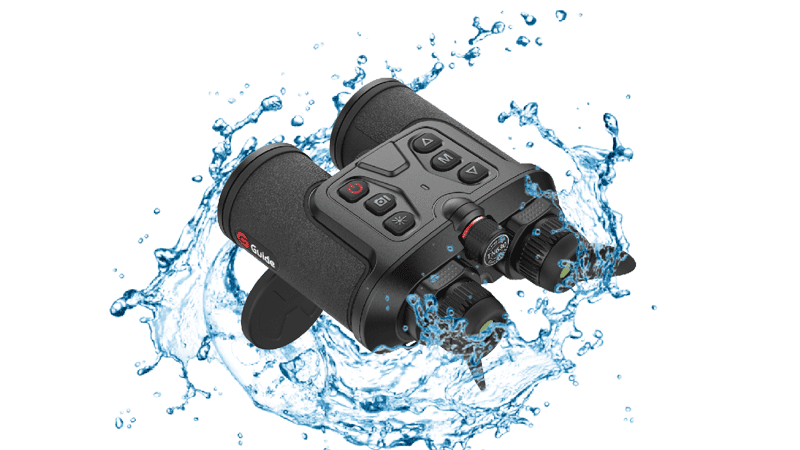

IP66, 1-meter Drop test: With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 400×300, 17 μm
NETD ≤30mK
Frame rate 50Hz
Lens
Focal length 35 mm, F1.2
Field of view 11.1°×8.33°
Optical zoom 2.3x
Digital zoom 1 ~ 4x
Focus Manual
Display
Display type 0.39’’ AMOLED×2
Resolution 1024×768
Eyepiece Exit pupil distance≥16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x
Video output Digital video
Range Performance
Detection range 1000 m
Hardware
Laser rangefinder Max. measuring range: 1000m
Others PIP, Hot spot tracking
Functions
Scene modes Enhanced, Highlight and Natural
Color palettes Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
Recording function Photo/Video
WIFI 2.4 G
Supported Application TargetIR
Power
Battery type 2 replaceable 18650 batteries
Operating time ≥ 5.5 hours
Interface USB USB Type-C
Video interface micro HDMI
Mechanical interface UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface
System
Language settings Chinese / English / Russian / German / French
Memory capacity 16 GB Environmental
Operating temperature -30 °C to 50 °C
Storage temperature -40 °C to 60 °C
Humidity 10 % to 95 % non-condensing
Shock 30 G at 11 ms half sine pulse (as per IEC60068-2-27) Drop 1 m
Encapsulation IP66
Certification IP66, FCC, CE, RoHS, EAC, un38.3
Physical
Weight ≤860 g
Size 162×146×70 mm
Standard Power adapter (in compliance with FCC, CE, EAC, and ROHS), Type C cable, Micro HDMI cable, lens cap, shoulder strap, 2 detachable eye masks, carry bag, 2 replaceable 18650 batteries (UN38.3), Battery charger, quick start guide
Optional Extended bracket, Bluetooth remote control
