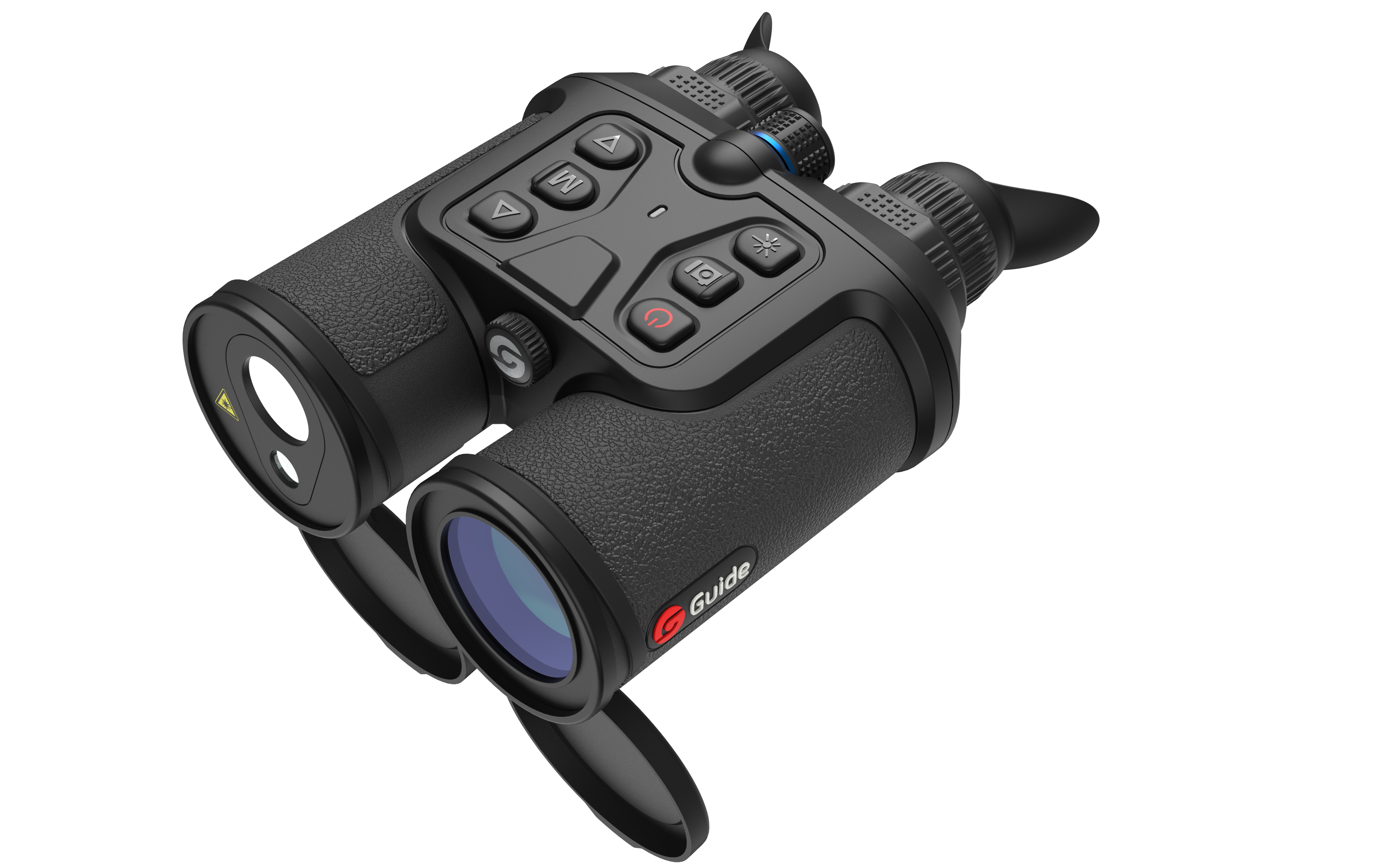

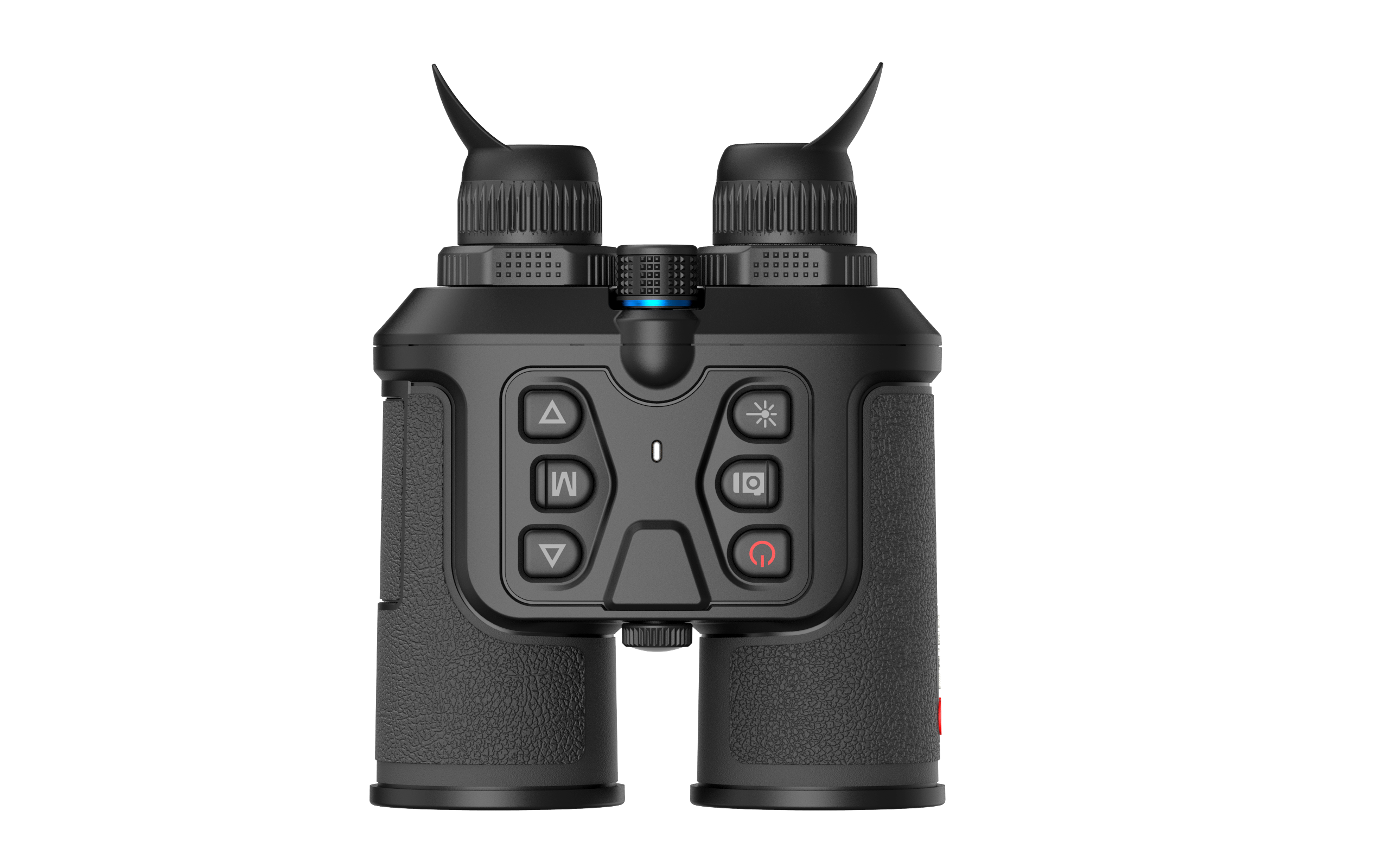

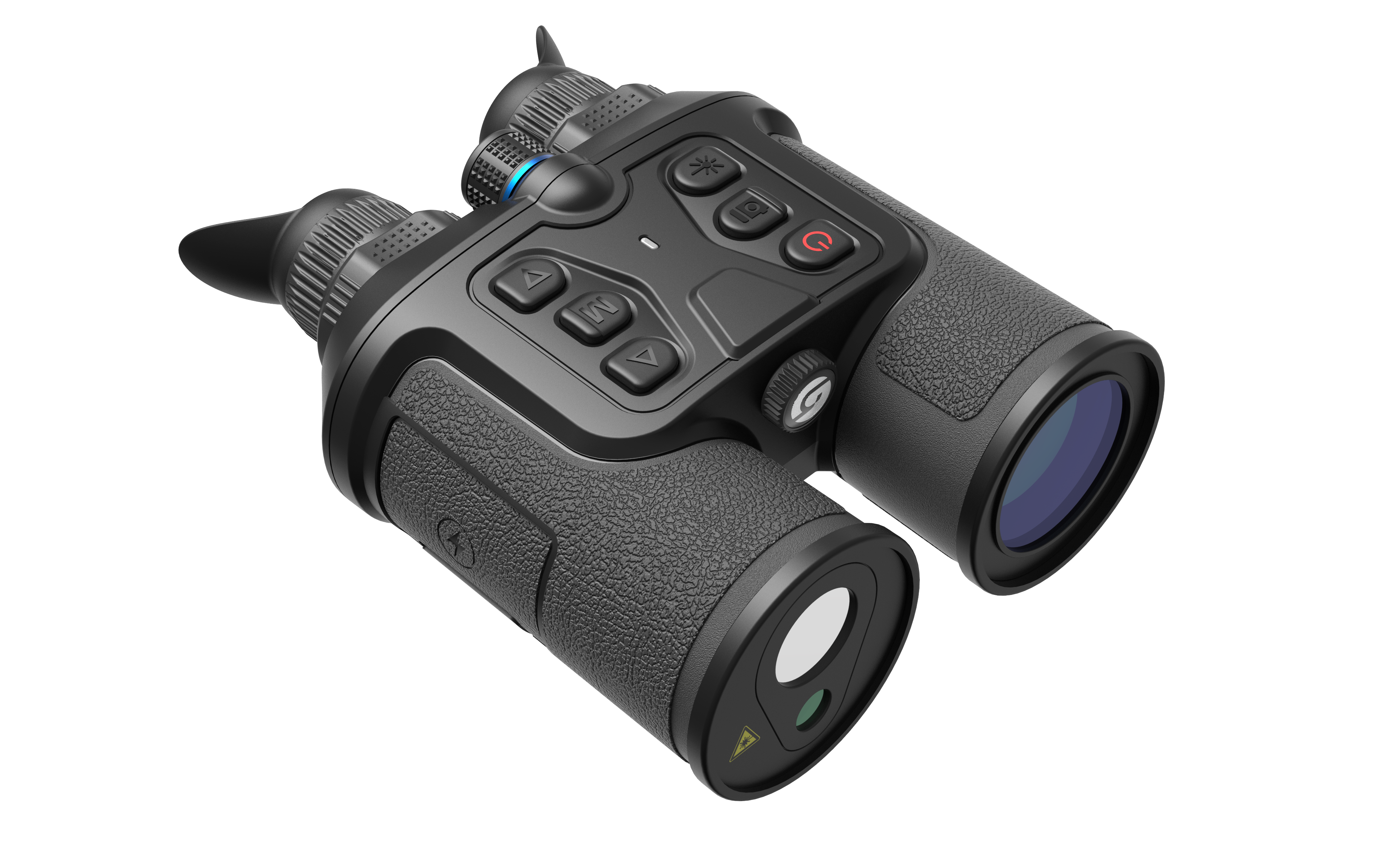

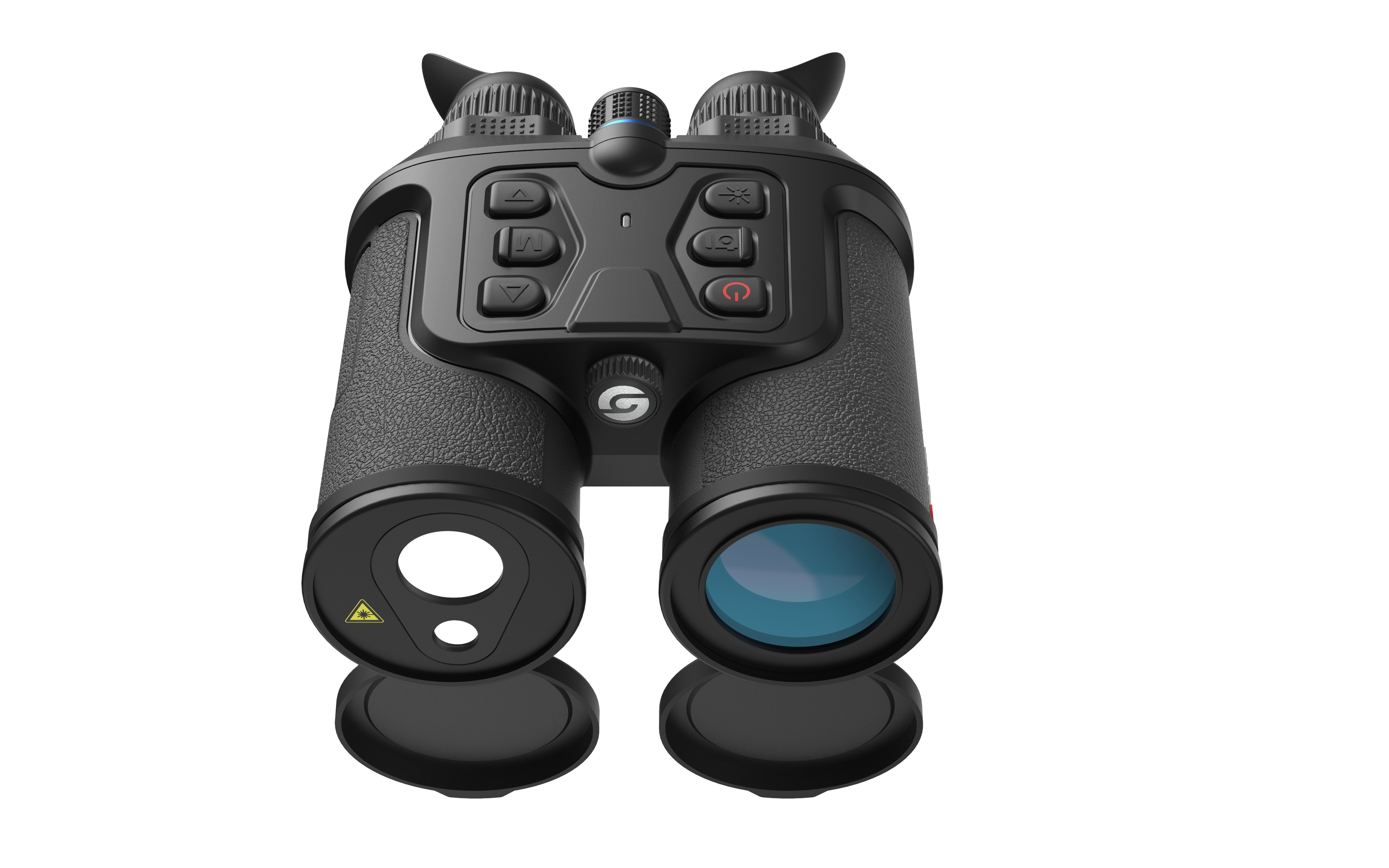

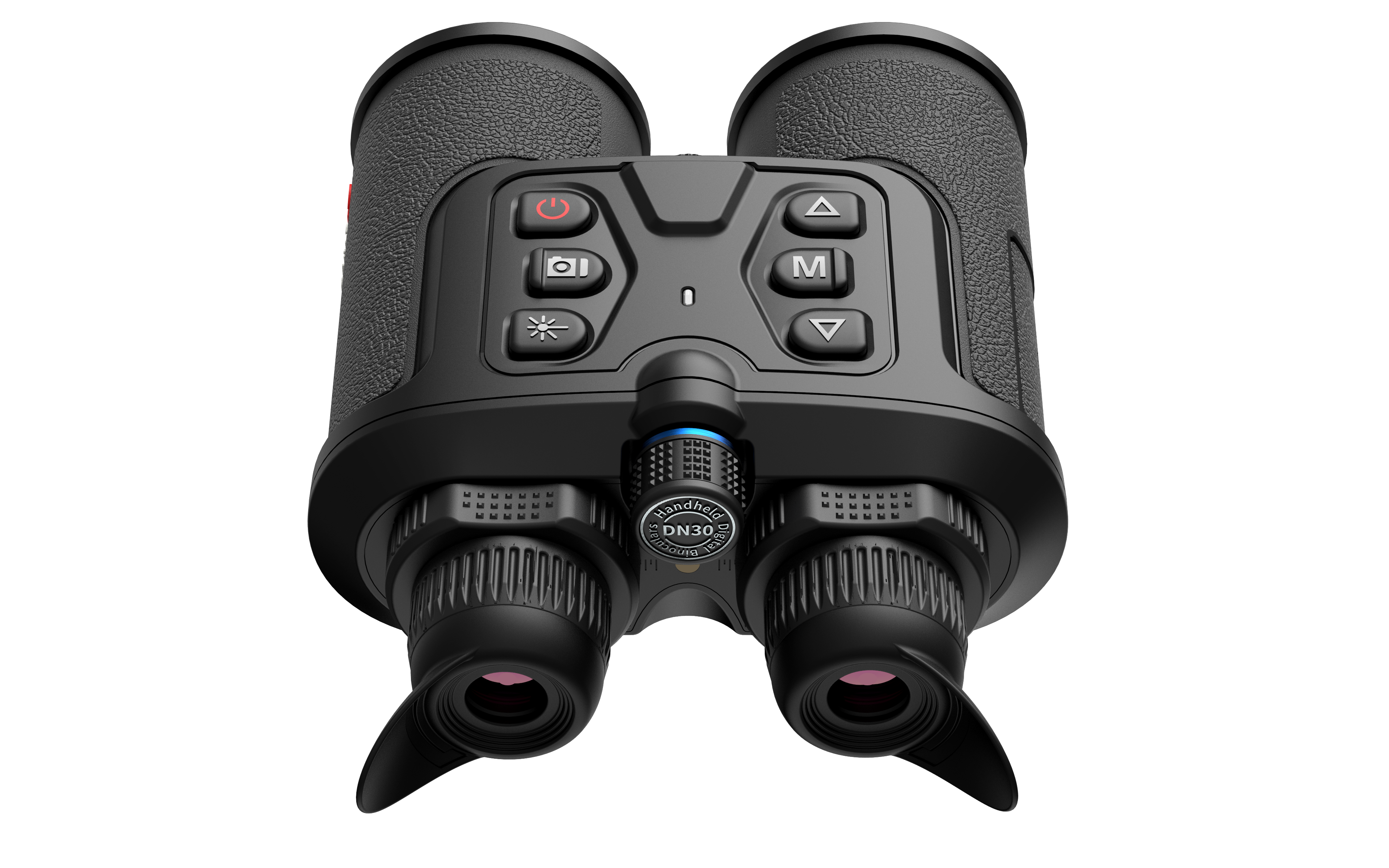

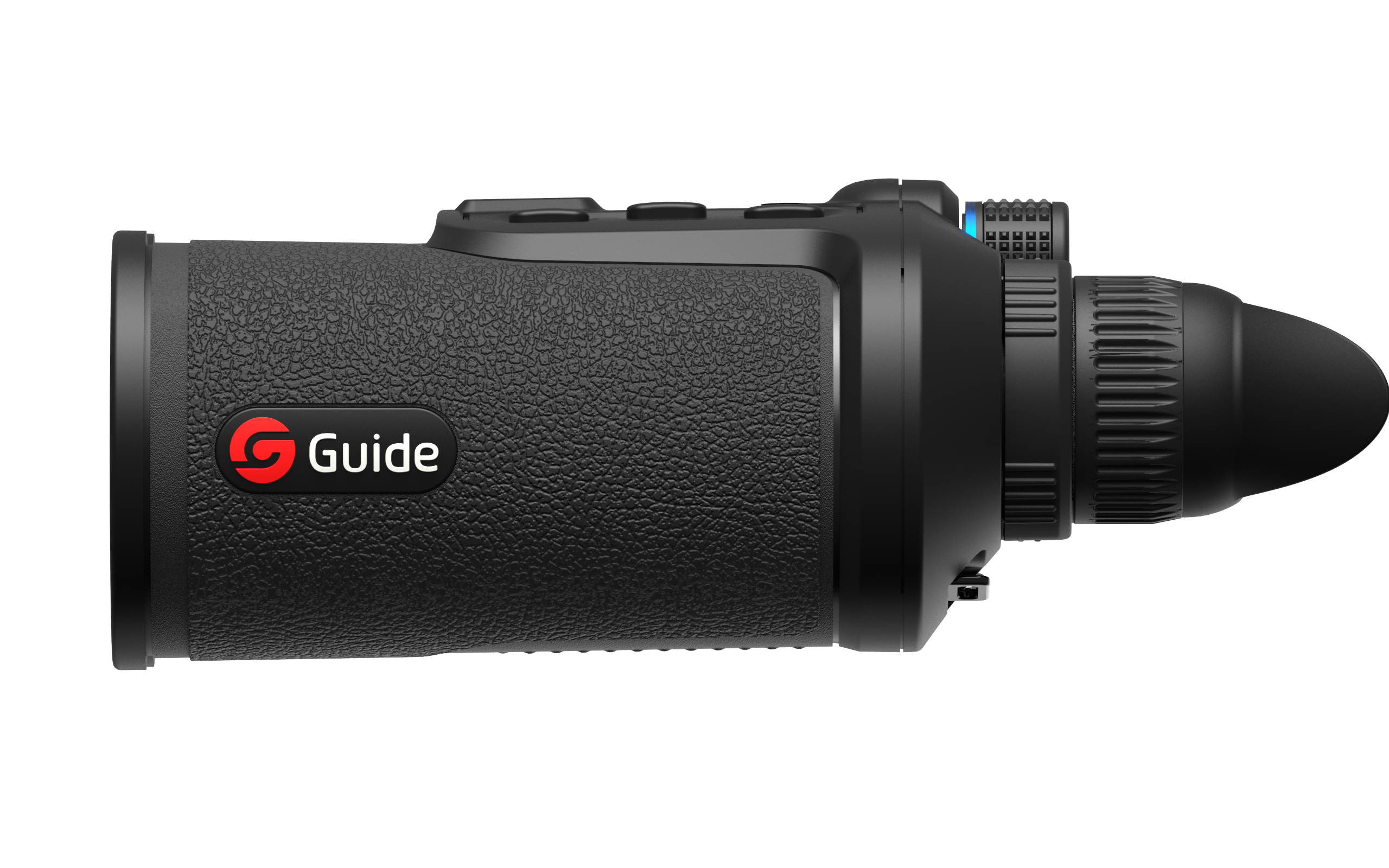

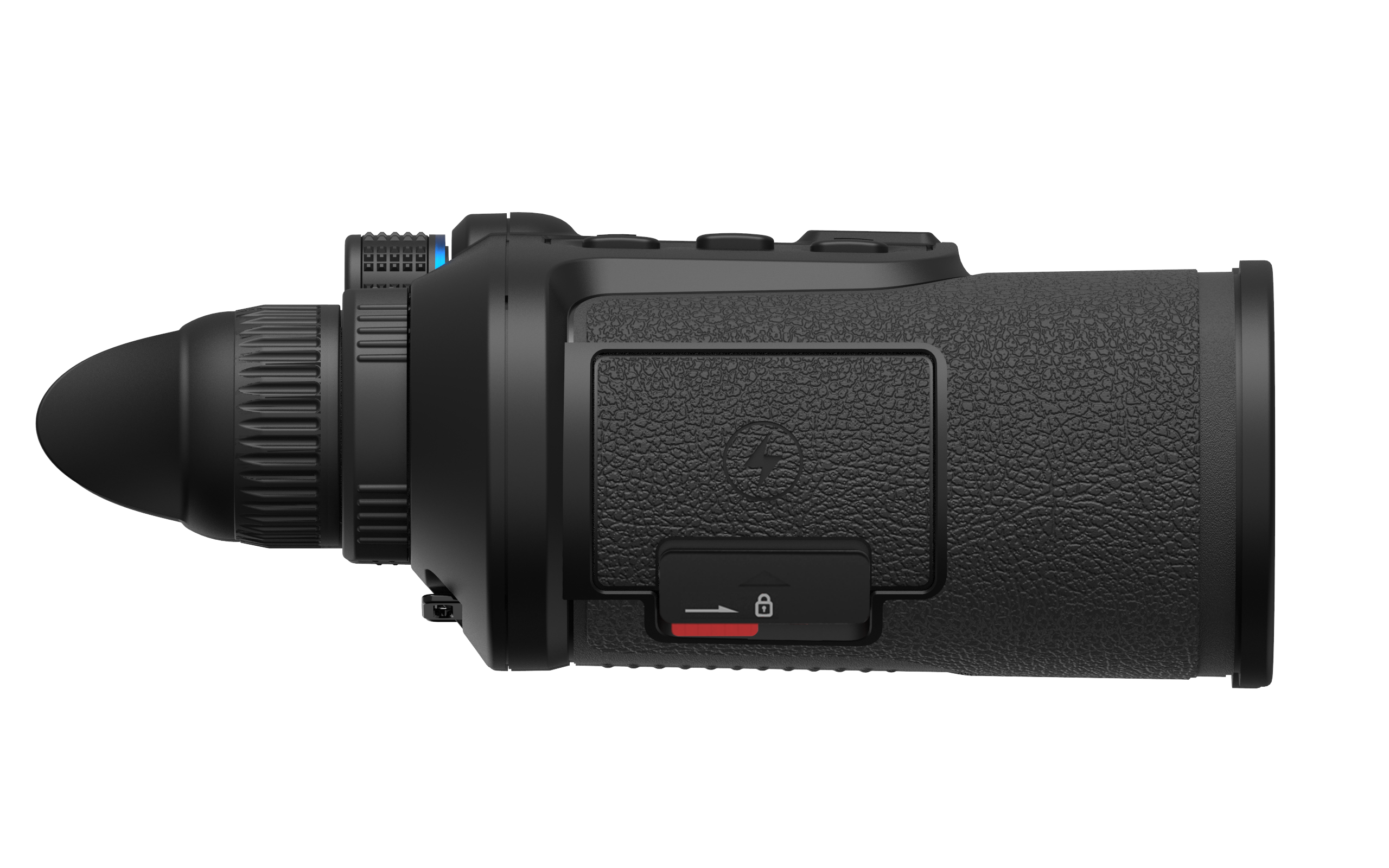

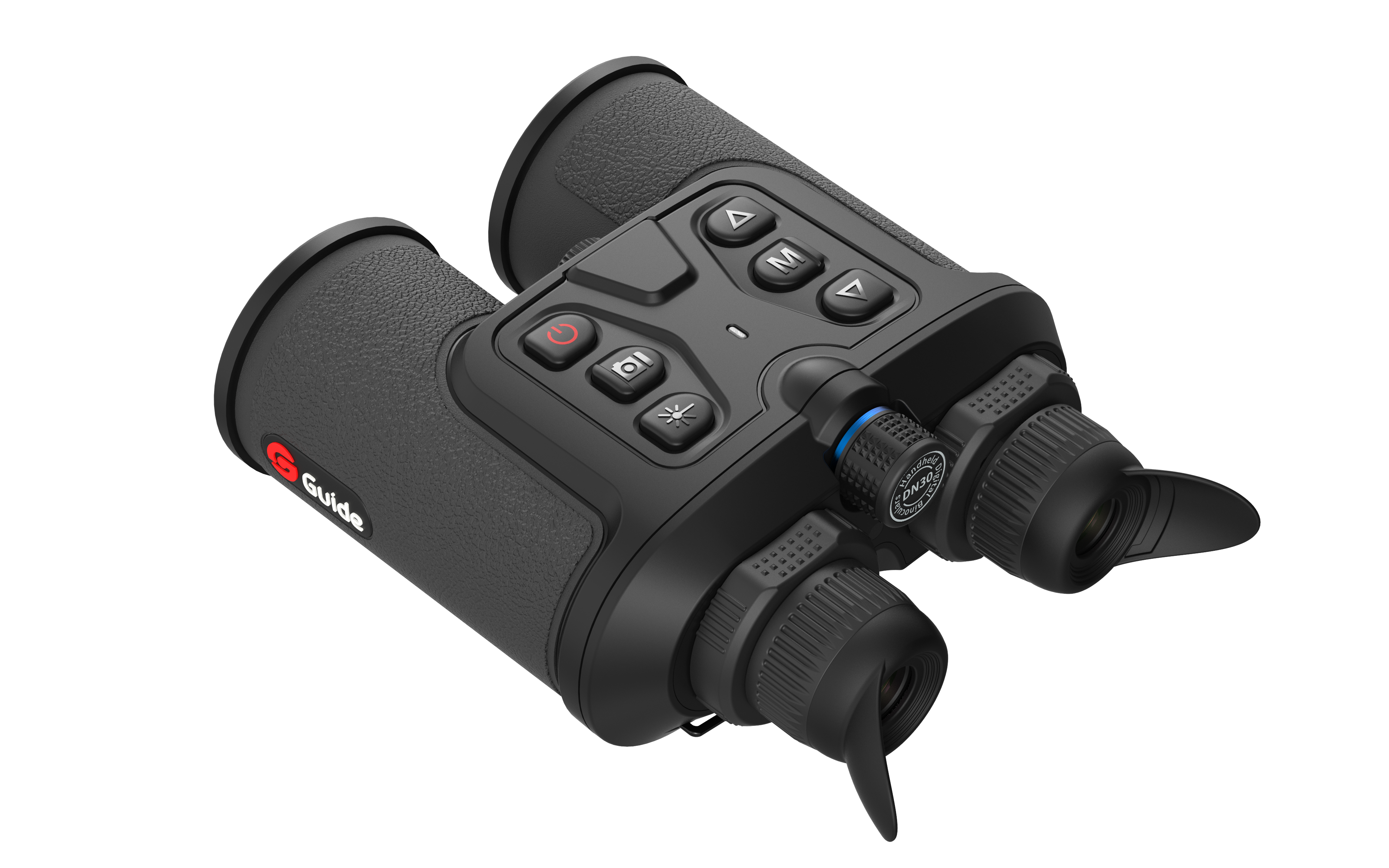

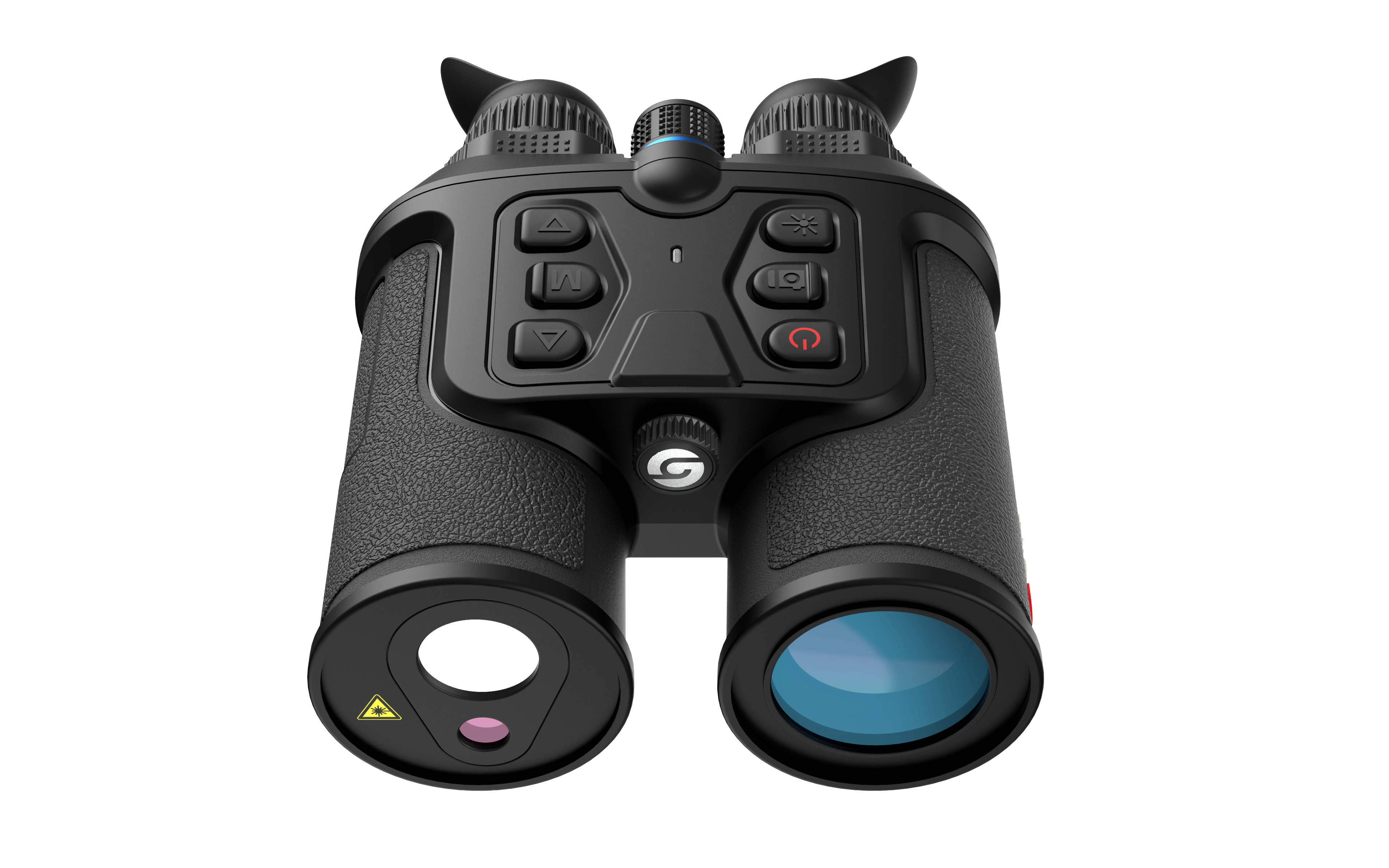

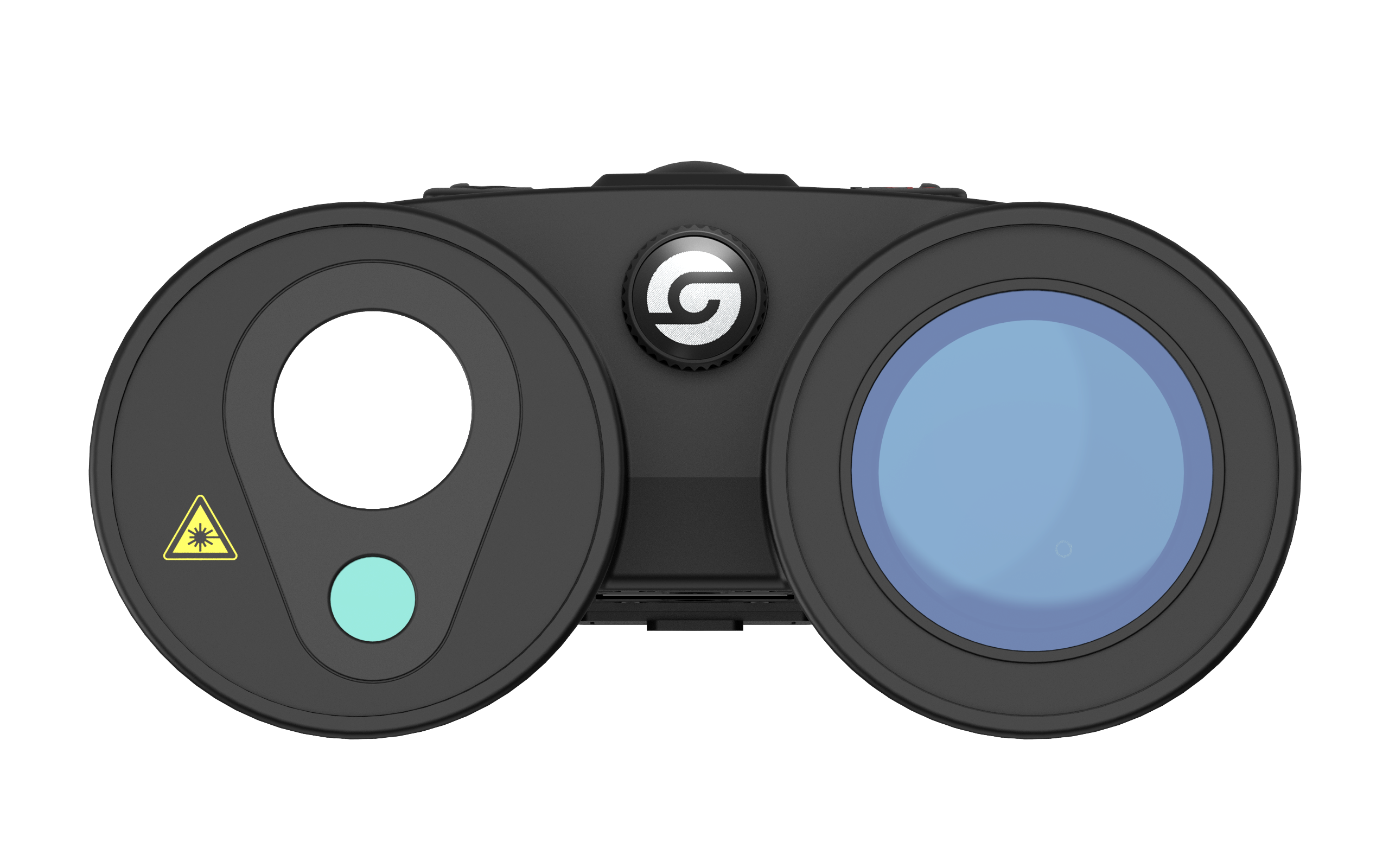

GUIDE Night Vision Binocular DN30
€ 1.259,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
DN30
Product information "GUIDE Night Vision Binocular DN30"
Handheld Digital Binoculars:
Experience 4K ultra-high-definition visuals with the DN Series. Its 3840x2160@2μm moonlight low-light CMOS sensor and 1920x1080 AMOLED display create stunning images day and night. In the case of sufficient light, the 4K low-light detector has a strong color rendition ability, presenting more delicate and colorful images; and in the morning, dusk, and night when there is insufficient light, turn on the infrared fill light, and you can “see through” the dark night from a long distance to observe, identify, and monitor hidden targets ahead.
3840×2160 @2µm 4K UHD sensor
1920×1080 AMOLED display
600/1000m Laser ranging
6 Hours Strong battery life
Core Sensor with Clear Imaging
Equipped with a 4K ultra-HD sensor, it captures clear images without being restricted by time and light, revealing the true appearance of animals in the darkness.
Photo and Video by One-touch
The DN Series can be used by outdoor enthusiasts to record beautiful moments and share happiness. Short press to take a photo and long press to make a video.
OTA Upgrade for Easy Updating
The device firmware can be upgraded remotely via the TargetIR App to improve and optimize functions and interactions, keep the product in the best condition, and bring users a better experience.
WIFI Interconnecting for Wonderful Sharing
Supports local WiFi connection with the TargetIR App, allowing peers to synchronize real-time previews and remote control. It's also easy to share the visuals on social media.
Ergonomics for Better Experience
The large field of view of the DN Series allows for comfortable observation, and its easy-to-grip is user-friendly.
Sensor
Type CMOS
Resolution 3840×2160@2μm
Minimum illuminance 0.001 lux
Frame rate 50Hz
Lens
Focal length 35mm F1
Field of view 12.57°×7.12°
Optical zoom 1.96x
Digital zoom 1x to 8x
Focus Manual
Display
Display type 0.39’’ AMOLED×2
Resolution FHD 1920×1080
Eyepiece Exit pupil distance≥16 mm; Diopter: -4 to+2; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x
Video output Digital video
Range Performance
Detection range 600m
Hardware
Laser rangefinder Max. measuring range: 1000m
IR illuminator 940 nm
Others GPS, Compass, Gyroscope, Bluetooth
Functions
Scene modes Day, Night and Low-light Modes
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Power
Battery type 2 replaceable 18650 batteries
Operating time 6 hours
Interface
USB USB Type-C
Video interface micro HDMI
Mechanical interface UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface
System
Language settings English, Russian, German, French
Memory capacity 32 GB
Environmental
Operating temperature -30°C to 50°C
Storage temperature -40°C to 60°C
Humidity 10 % to 95 % non-condensing
Encapsulation IP67
Certification CE, FCC, EAC, RoHS
Physical
Weight ≤940 g (without eye mask and battery)
Size ≤162×146×70 mm (without eye mask)

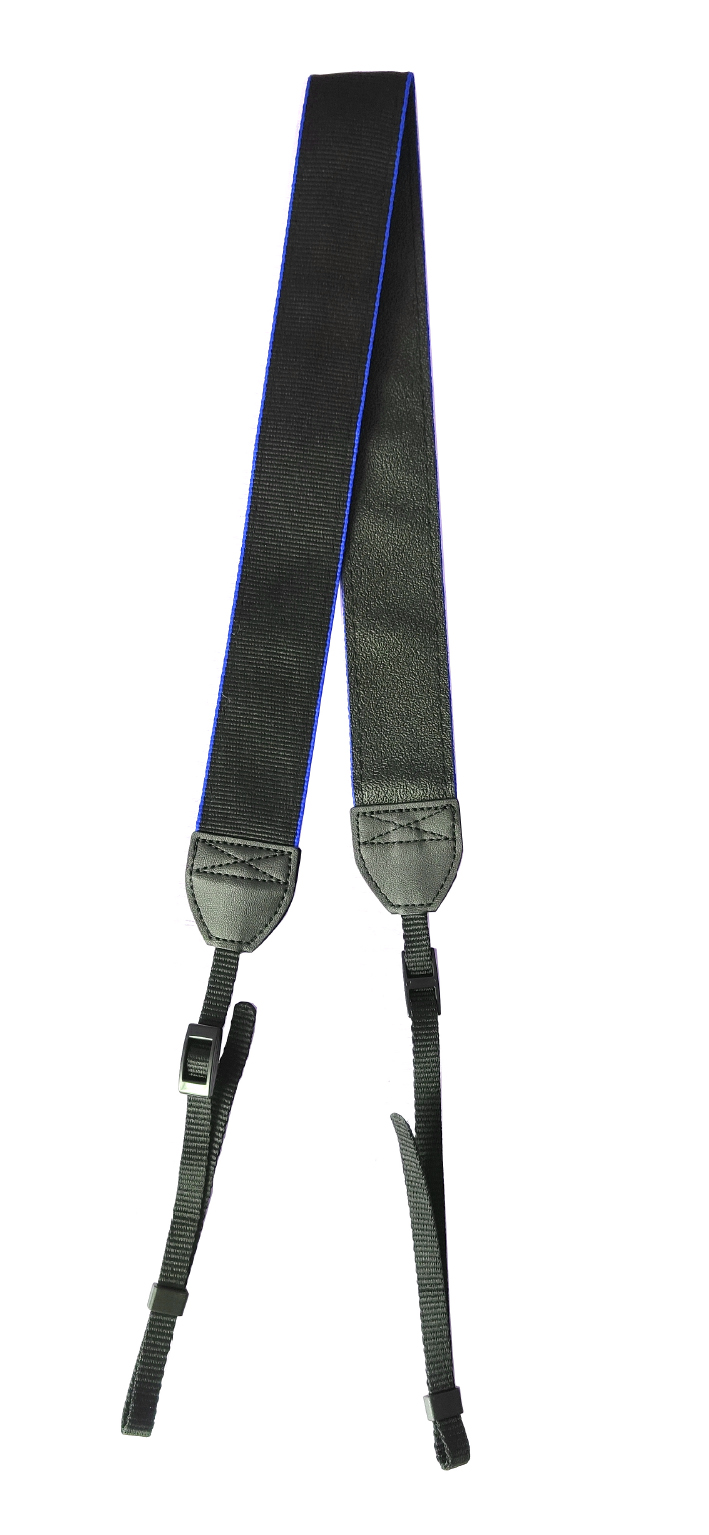

Standard: Device, lens cap, carry bag, shoulder strap, 2 detachable eye masks, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide
Optional Bluetooth remote control, Extended bracket
Experience 4K ultra-high-definition visuals with the DN Series. Its 3840x2160@2μm moonlight low-light CMOS sensor and 1920x1080 AMOLED display create stunning images day and night. In the case of sufficient light, the 4K low-light detector has a strong color rendition ability, presenting more delicate and colorful images; and in the morning, dusk, and night when there is insufficient light, turn on the infrared fill light, and you can “see through” the dark night from a long distance to observe, identify, and monitor hidden targets ahead.
3840×2160 @2µm 4K UHD sensor
1920×1080 AMOLED display
600/1000m Laser ranging
6 Hours Strong battery life
Core Sensor with Clear Imaging
Equipped with a 4K ultra-HD sensor, it captures clear images without being restricted by time and light, revealing the true appearance of animals in the darkness.
High-definition Display for the Ultimate Vision
A high-resolution, high-contrast, and high-gamut 0.39-inch display brings better image quality and visual effects.
Outdoor hunting with 24/7 animal observation
In outdoor or forest environments, DN Series can quickly search for, locate, and identify prey. Even at night, it is possible to see the physical characteristics of animals and determine their species.
Instant Possession of “X-ray Vision”
In dimly lit mornings, evenings, or nights, as long as there is a little moonlight, it can provide users with a clear field of vision and assist in discreet observation to leave no place for prey to hide.
Three Scene Modes to Choose
Users can choose different scene modes based on the light and time to ensure high-definition images caught by human eyes, and to reveal the target details. Day mode: Rich colors, restoring every moment of reality. Twilight mode: Green light, protecting your eyes and showing every detail. Night mode: Excellent sensitivity, capturing every frame of motion.
A high-resolution, high-contrast, and high-gamut 0.39-inch display brings better image quality and visual effects.
Outdoor hunting with 24/7 animal observation
In outdoor or forest environments, DN Series can quickly search for, locate, and identify prey. Even at night, it is possible to see the physical characteristics of animals and determine their species.
Instant Possession of “X-ray Vision”
In dimly lit mornings, evenings, or nights, as long as there is a little moonlight, it can provide users with a clear field of vision and assist in discreet observation to leave no place for prey to hide.
Three Scene Modes to Choose
Users can choose different scene modes based on the light and time to ensure high-definition images caught by human eyes, and to reveal the target details. Day mode: Rich colors, restoring every moment of reality. Twilight mode: Green light, protecting your eyes and showing every detail. Night mode: Excellent sensitivity, capturing every frame of motion.
Photo and Video by One-touch
The DN Series can be used by outdoor enthusiasts to record beautiful moments and share happiness. Short press to take a photo and long press to make a video.
OTA Upgrade for Easy Updating
The device firmware can be upgraded remotely via the TargetIR App to improve and optimize functions and interactions, keep the product in the best condition, and bring users a better experience.
WIFI Interconnecting for Wonderful Sharing
Supports local WiFi connection with the TargetIR App, allowing peers to synchronize real-time previews and remote control. It's also easy to share the visuals on social media.
Ergonomics for Better Experience
The large field of view of the DN Series allows for comfortable observation, and its easy-to-grip is user-friendly.
Sensor
Type CMOS
Resolution 3840×2160@2μm
Minimum illuminance 0.001 lux
Frame rate 50Hz
Lens
Focal length 35mm F1
Field of view 12.57°×7.12°
Optical zoom 1.96x
Digital zoom 1x to 8x
Focus Manual
Display
Display type 0.39’’ AMOLED×2
Resolution FHD 1920×1080
Eyepiece Exit pupil distance≥16 mm; Diopter: -4 to+2; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x
Video output Digital video
Range Performance
Detection range 600m
Hardware
Laser rangefinder Max. measuring range: 1000m
IR illuminator 940 nm
Others GPS, Compass, Gyroscope, Bluetooth
Functions
Scene modes Day, Night and Low-light Modes
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Power
Battery type 2 replaceable 18650 batteries
Operating time 6 hours
Interface
USB USB Type-C
Video interface micro HDMI
Mechanical interface UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface
System
Language settings English, Russian, German, French
Memory capacity 32 GB
Environmental
Operating temperature -30°C to 50°C
Storage temperature -40°C to 60°C
Humidity 10 % to 95 % non-condensing
Encapsulation IP67
Certification CE, FCC, EAC, RoHS
Physical
Weight ≤940 g (without eye mask and battery)
Size ≤162×146×70 mm (without eye mask)
Standard: Device, lens cap, carry bag, shoulder strap, 2 detachable eye masks, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide
Optional Bluetooth remote control, Extended bracket
