GUIDE Digital Day & Night Vision Scope DU50
€ 1199,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
DU50

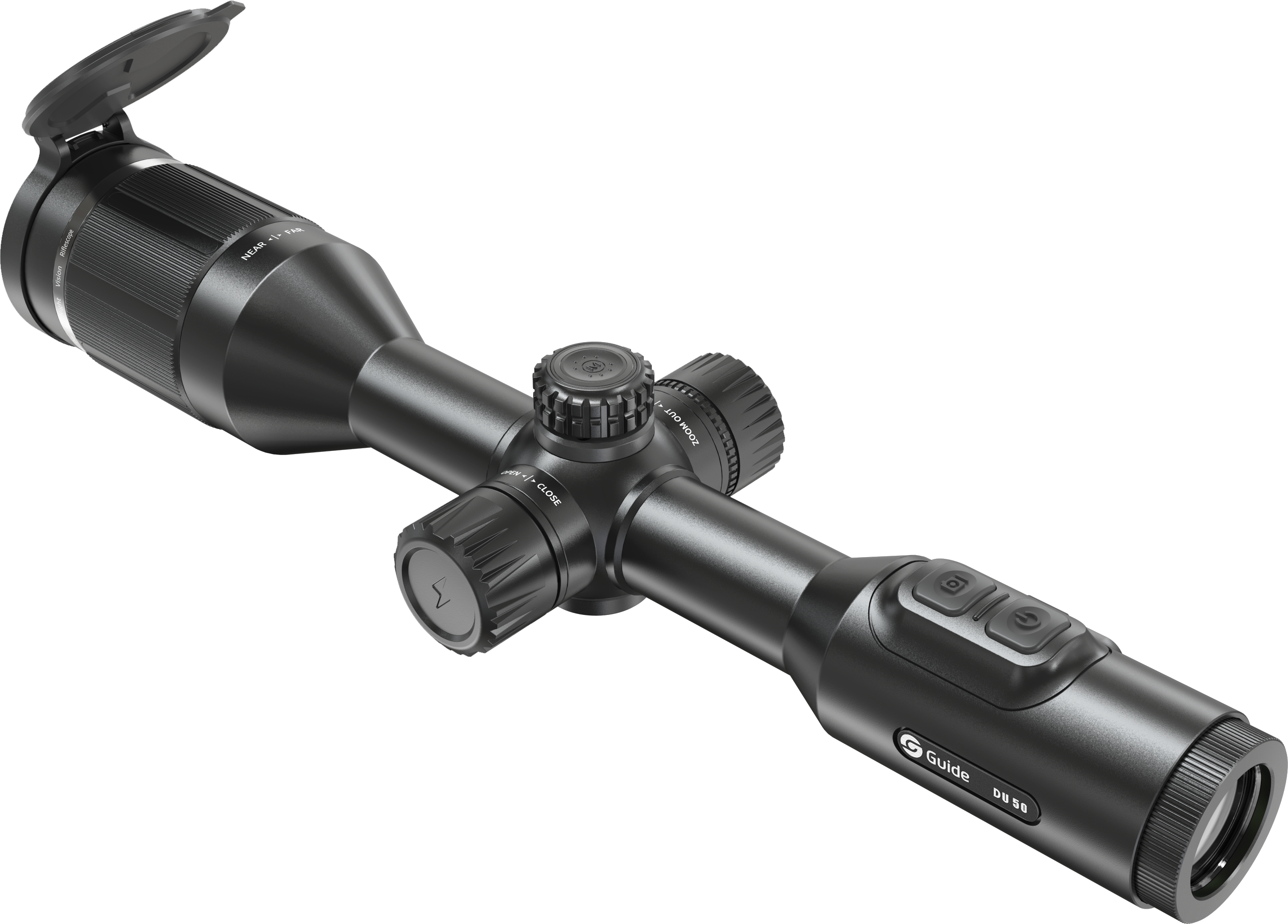

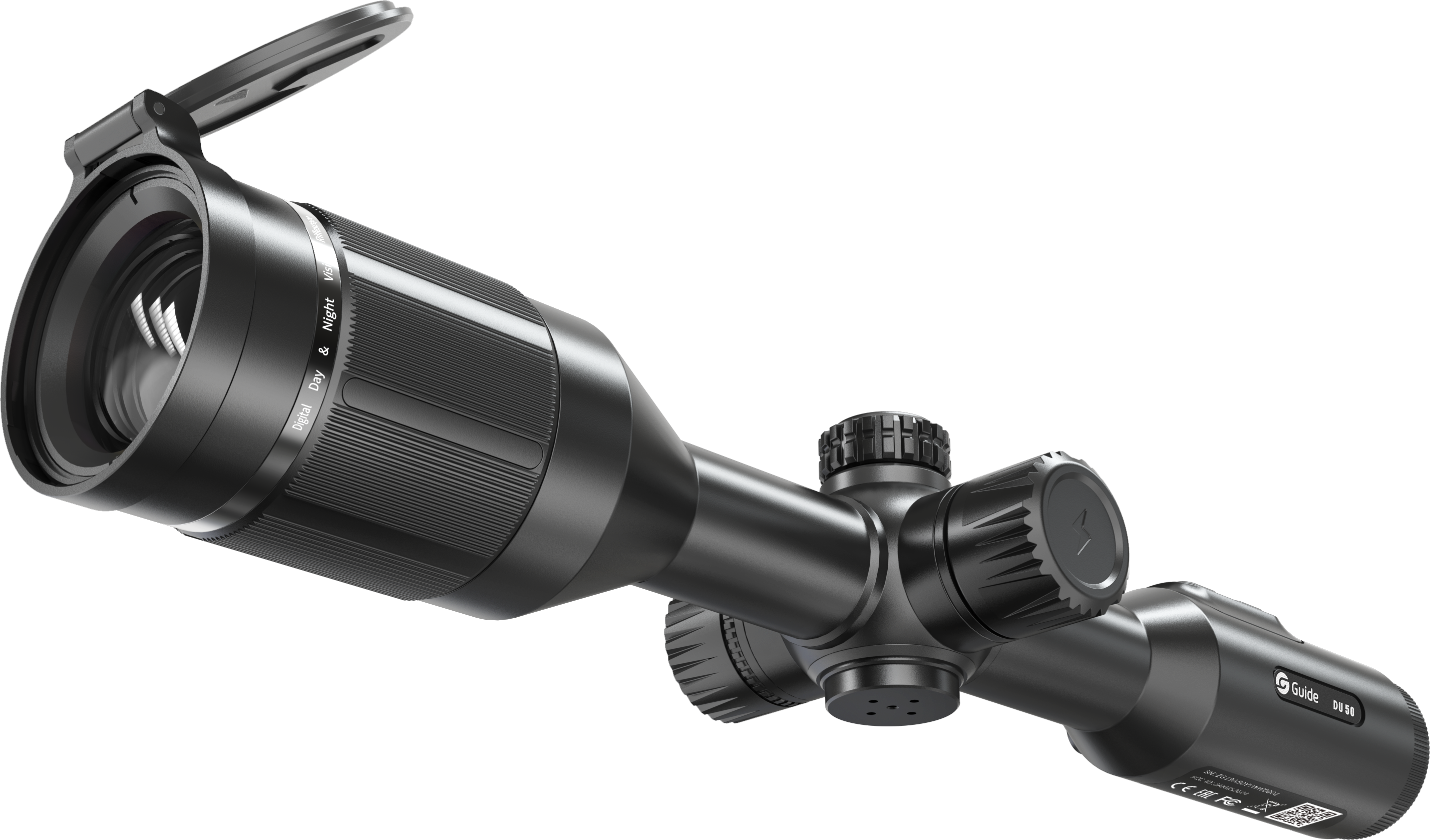

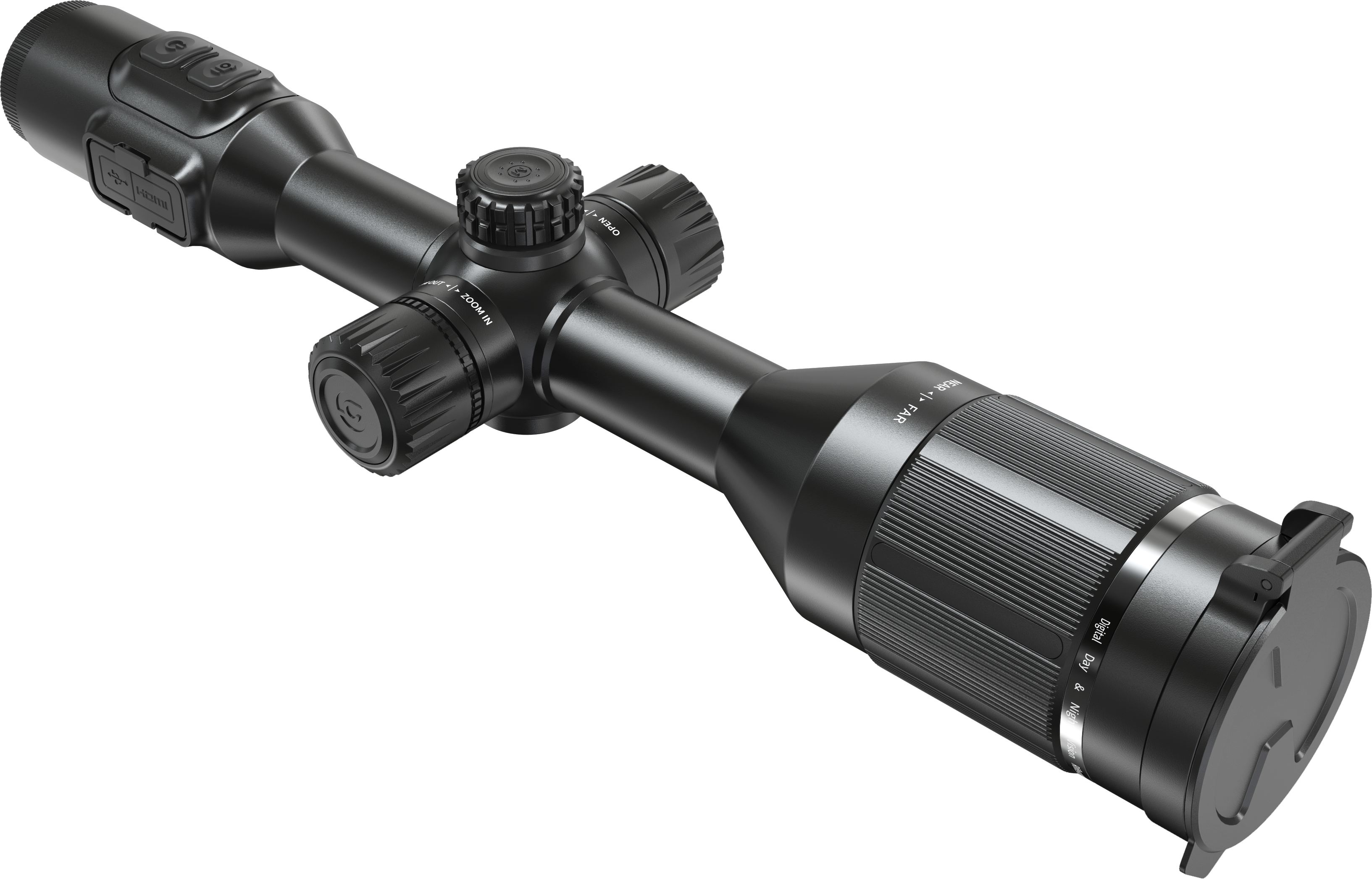

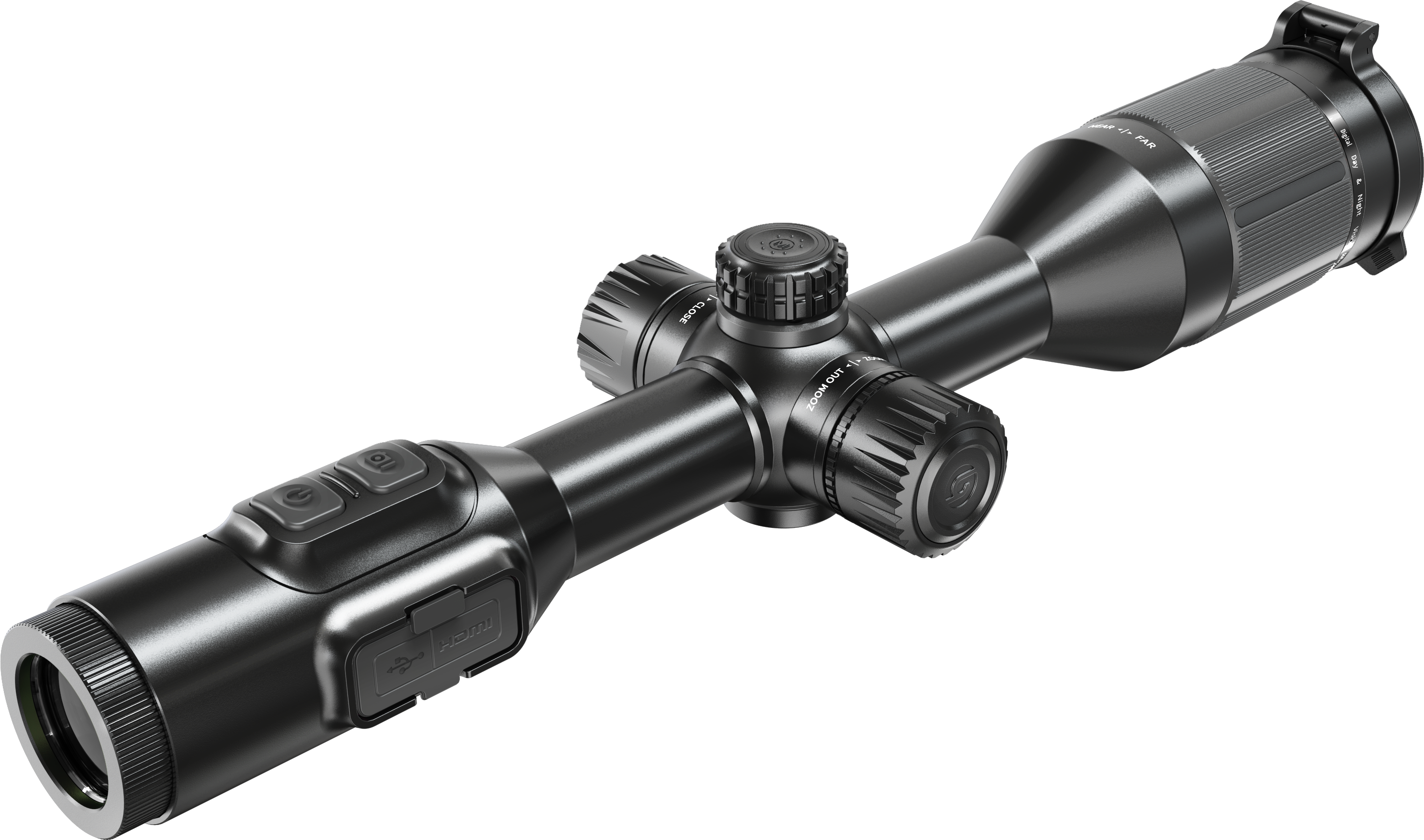

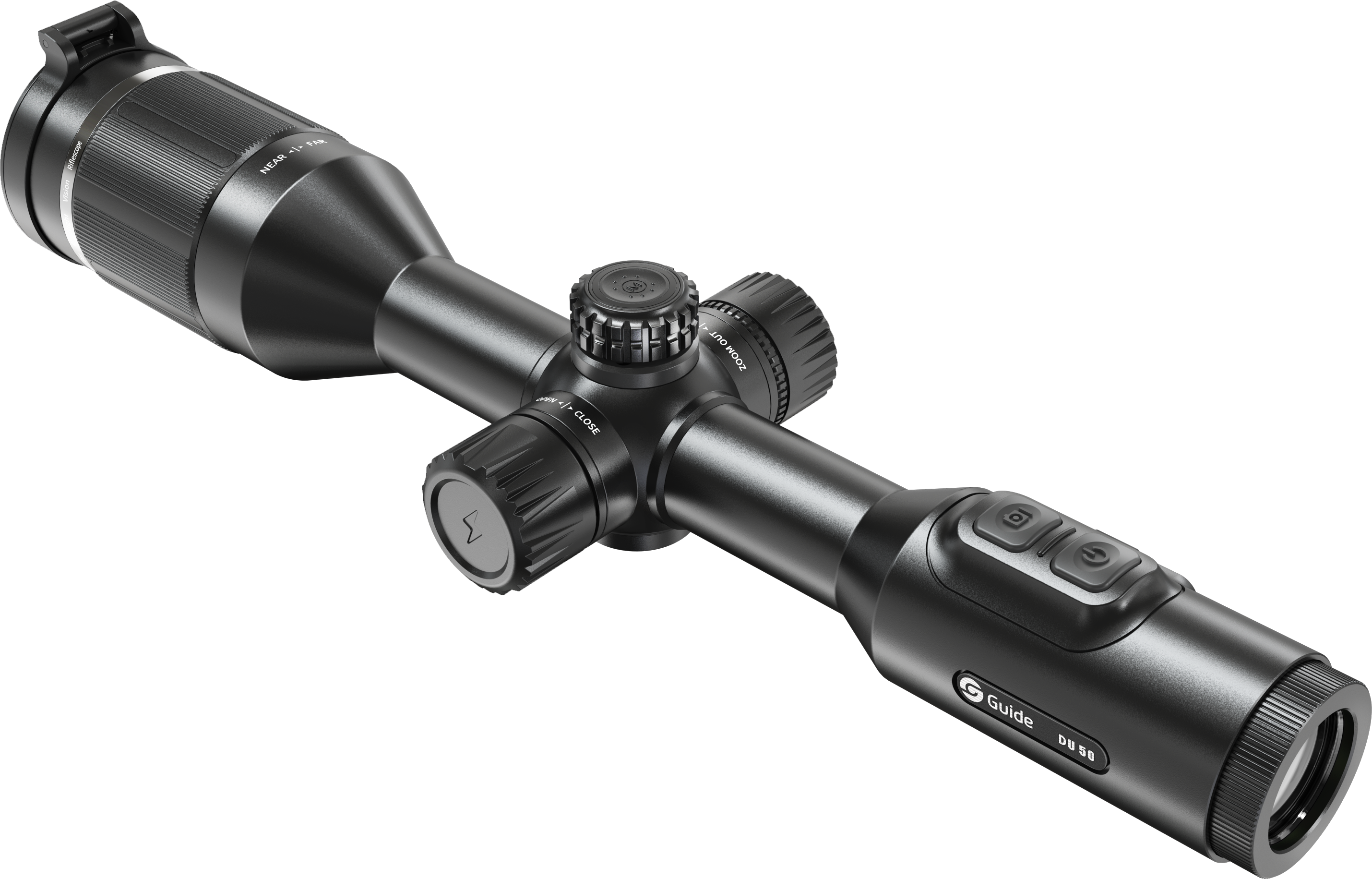

Product information "GUIDE Digital Day & Night Vision Scope DU50"
Guide DU Series is a high-performance Digital Day & Night Vision Scope designed for professional hunting. The high-sensitivity 1920x1080/4µm CMOS Sensor that offers outstanding image quality. The full-color HD 1920x1080 OLED display guarantees the smallest image detail with meticulous care to respect users' wishes. The advanced dual battery system provides up to 15 hours of non-stop use from day to night.
Flexible magnification from 3.125x to 25x: The base magnification of Guide DU50 scope increases eightfold – 3.125x to 25x. It makes the search more flexible and pinpoints the target more quickly while hunting.
Mounting on standard 30 mm rings: Like a traditional day sight in a 30mm housing from the outside, the Guide DU50 can be mounted on other devices with flexibility.
15 Hours Super Long Battery Life: Up to 15 hours of battery life are promised with a single charge, which is sufficient for the duration of intensive usage of the scope.
WiFi and APP Support: The built-in WiFi module connects the DU50 with an smartphone (Android or iOS ) through the Target IR mobile application, which supports real-time image transmission to the smartphone and remote control.
32 GB Storage for images and videos: The DU50 comes with larger storage capacities of 32GB for nearly 40,000 images and videos of several hours.
IP67 Protection Rating: With IP67 waterproof and dustproof rating, the Guide DU50 works in conditions of high humidity and heavy rain and protects from dust and impact.
Sensor
Type CMOS
Resolution 1920×1080@4μm
Minimum illuminance 0.001 lux
Frame rate 50 Hz
Lens
Focal length 50mm F1.2
Field of view 9°×5.2°
Optical zoom 3.125x-25x
Digital zoom 1x to 8x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution FHD 1920×1080
Eyepiece Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x
Video output Digital video
Range Performance
Detection range 600 (with IR 850 nm) / 550 (with IR 940 nm)
Hardware
IR illuminator 850 nm / 940 nm (Alternative)
Functions
Scene modes Day, Night and Low-light Modes
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Power
Battery type a built-in battery and a customized battery
Operating time 15 hours
Interface
USB USB Type-C
Video interface micro HDMI
Tube diameter Standard 30 mm
System
Language settings English, Russian, German, French, Chinese, Italian, Spanish, Japanese, Korean
Memory capacity 32 GB
Environmental Operating temperature -30°C to 50°C
Storage temperature -40°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 800G/1ms semi-sinosoidal IEC60068-2-27
Encapsulation IP67
Certification CE, FCC, EAC, RoHS
Physical
Weight ≤980 g (without eye mask and battery)
Size ≤371×107×68 mm (without eye mask)
Standard Device, lens cover, eye mask, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery×2, customized battery charger, USB Type-C cable, micro HDMI cable, clip×2, IR illuminator, IR illuminator bracket, quick start guide
Optional Customized battery, Laser rangefinder, Bluetooth controller, Dovetail rail
