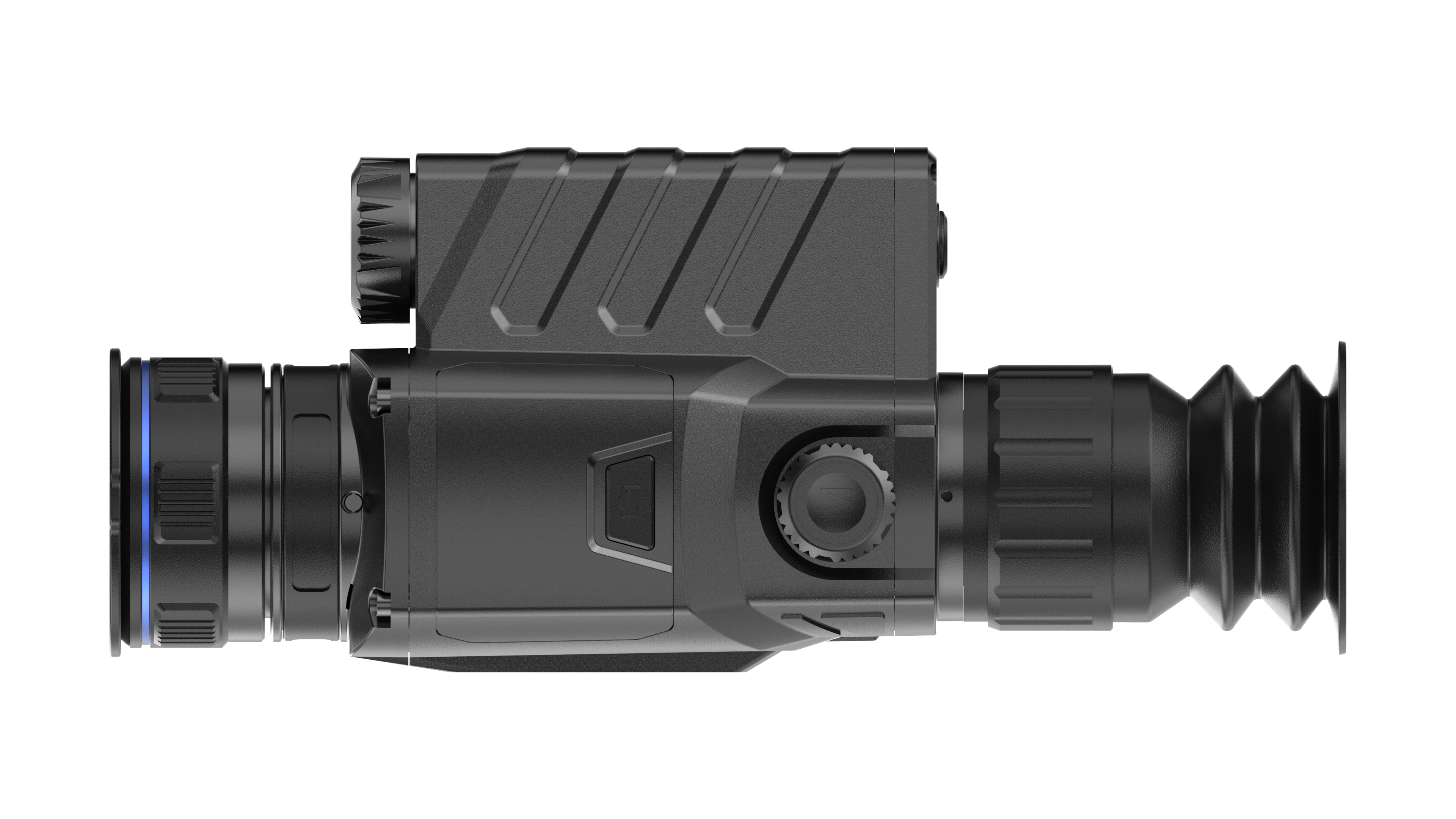

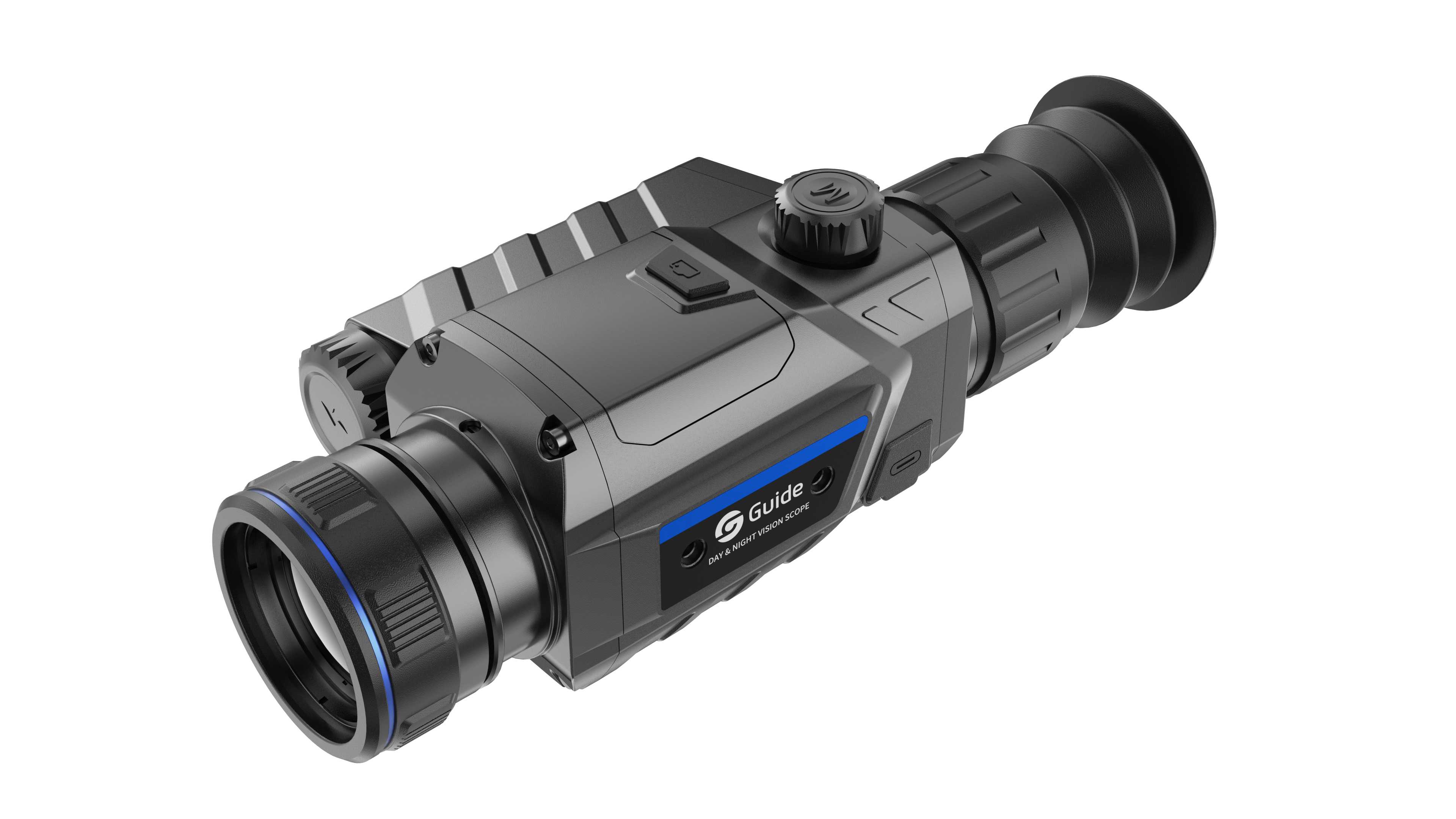

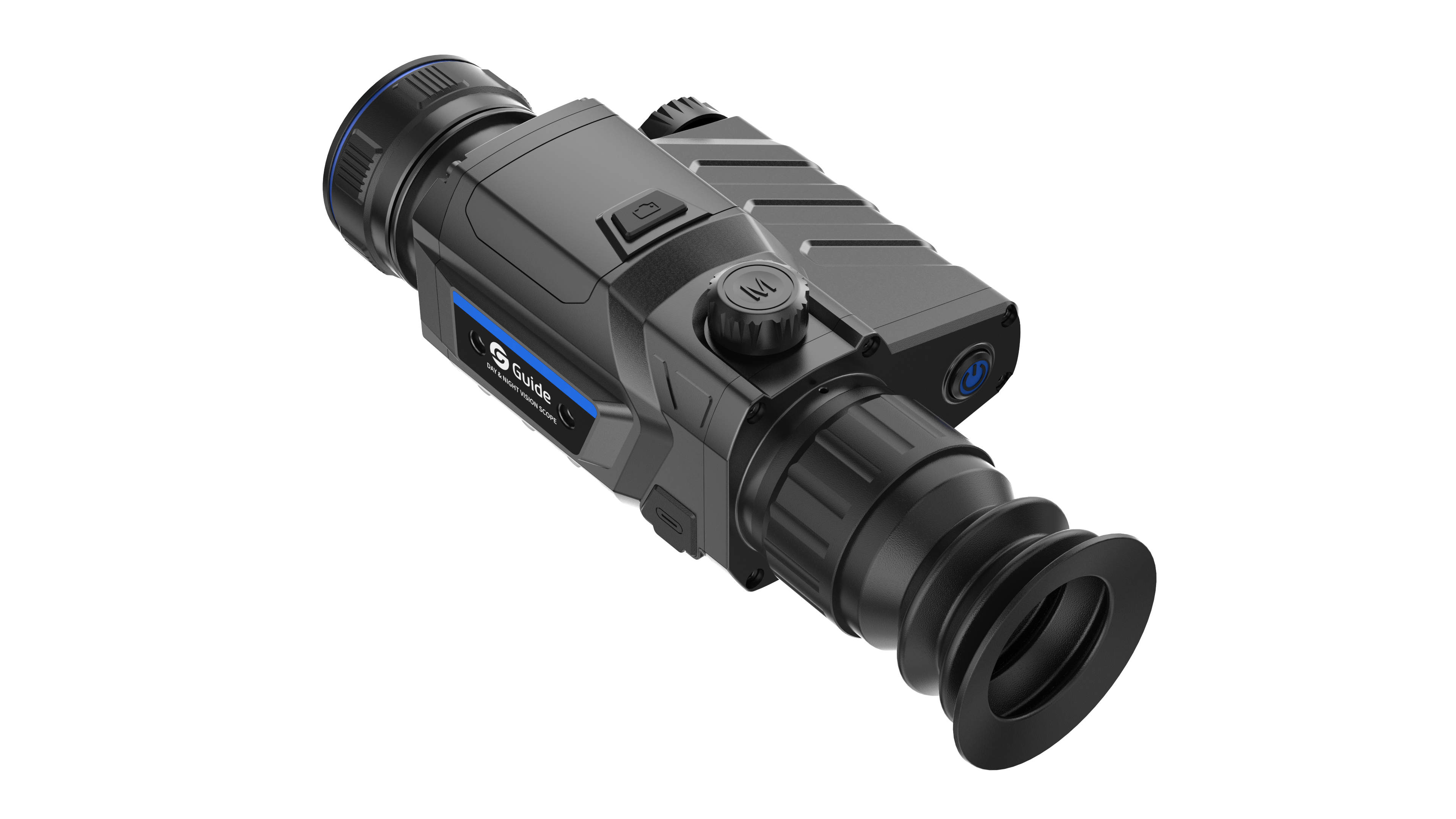

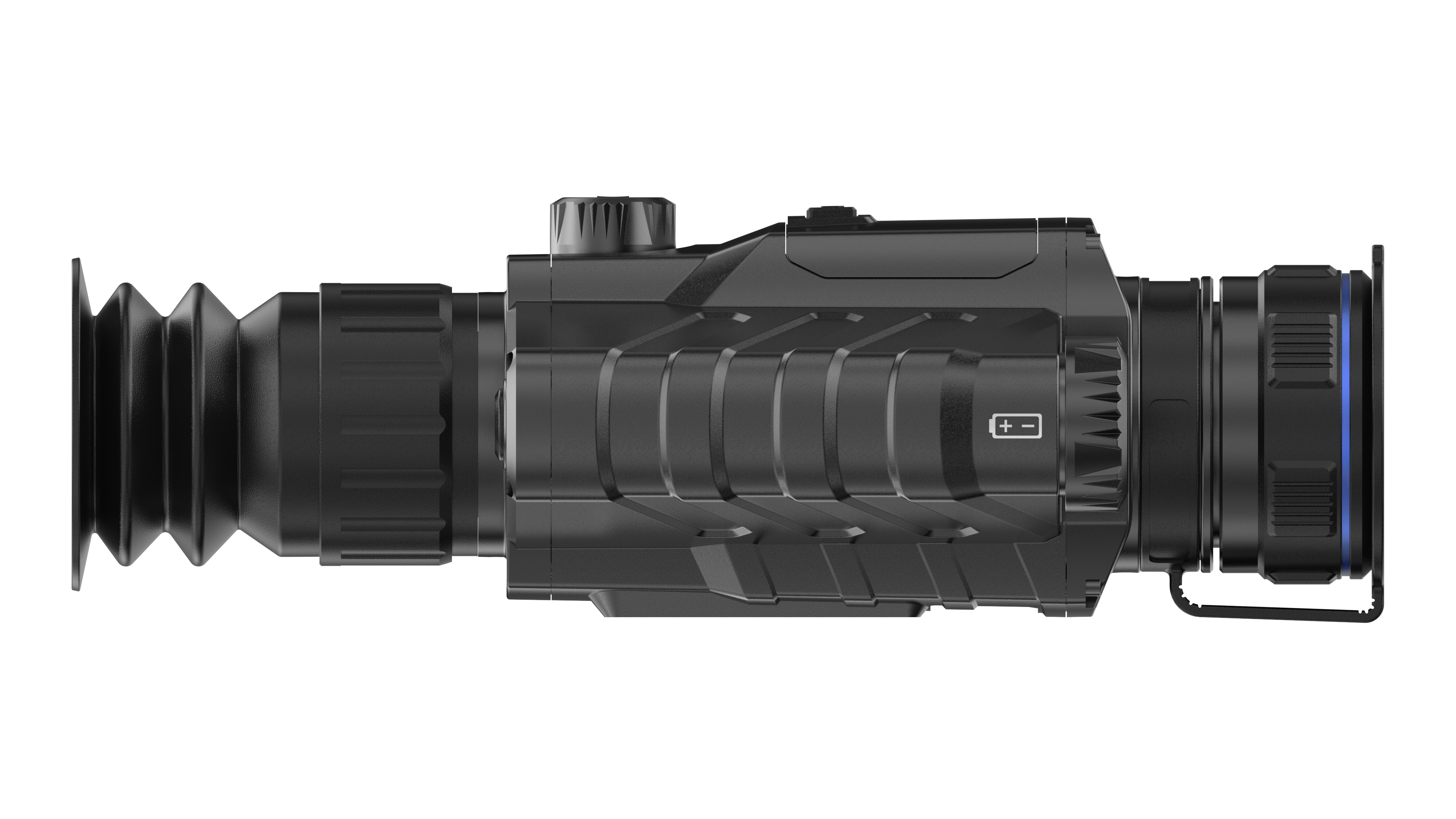

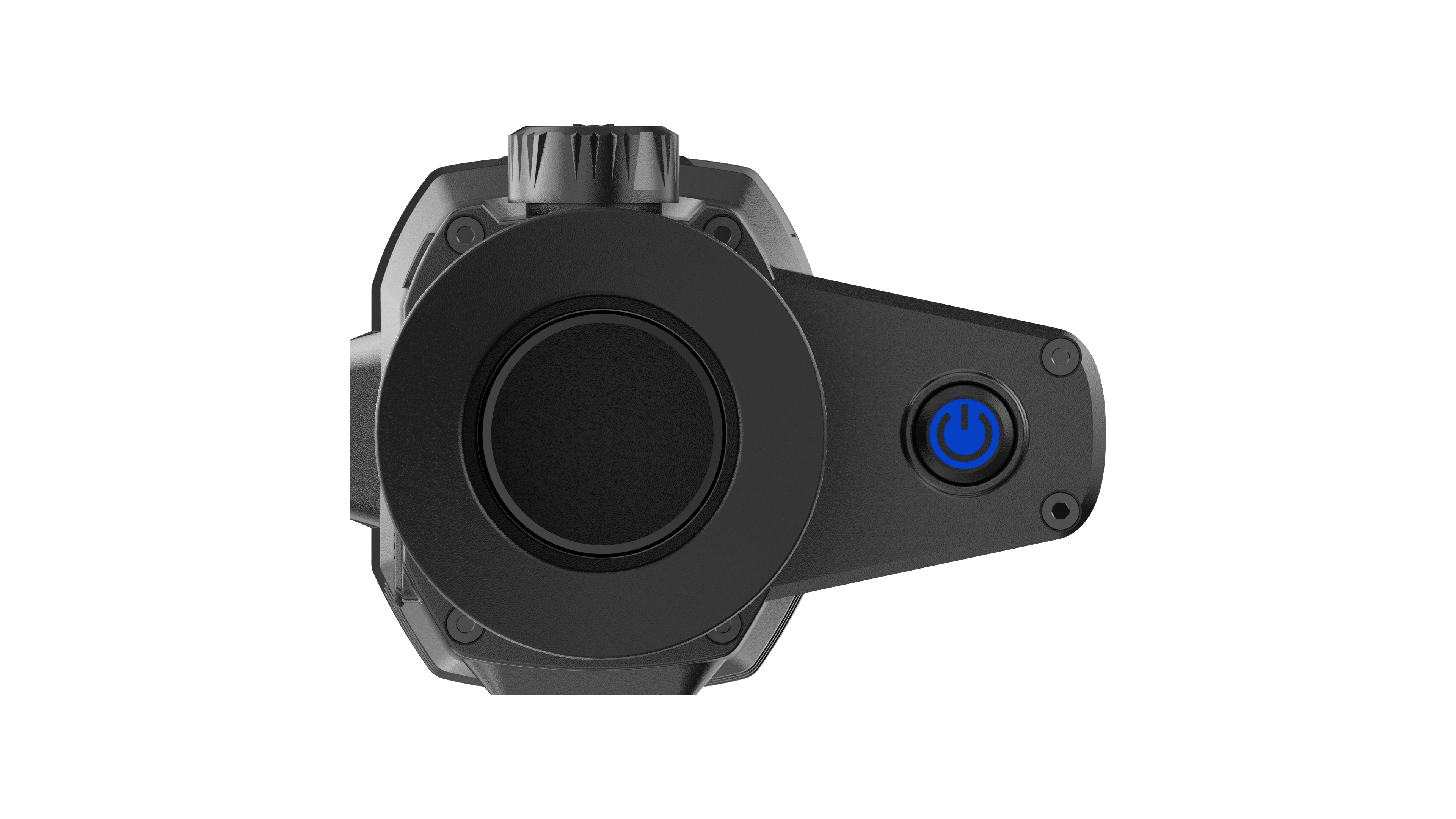

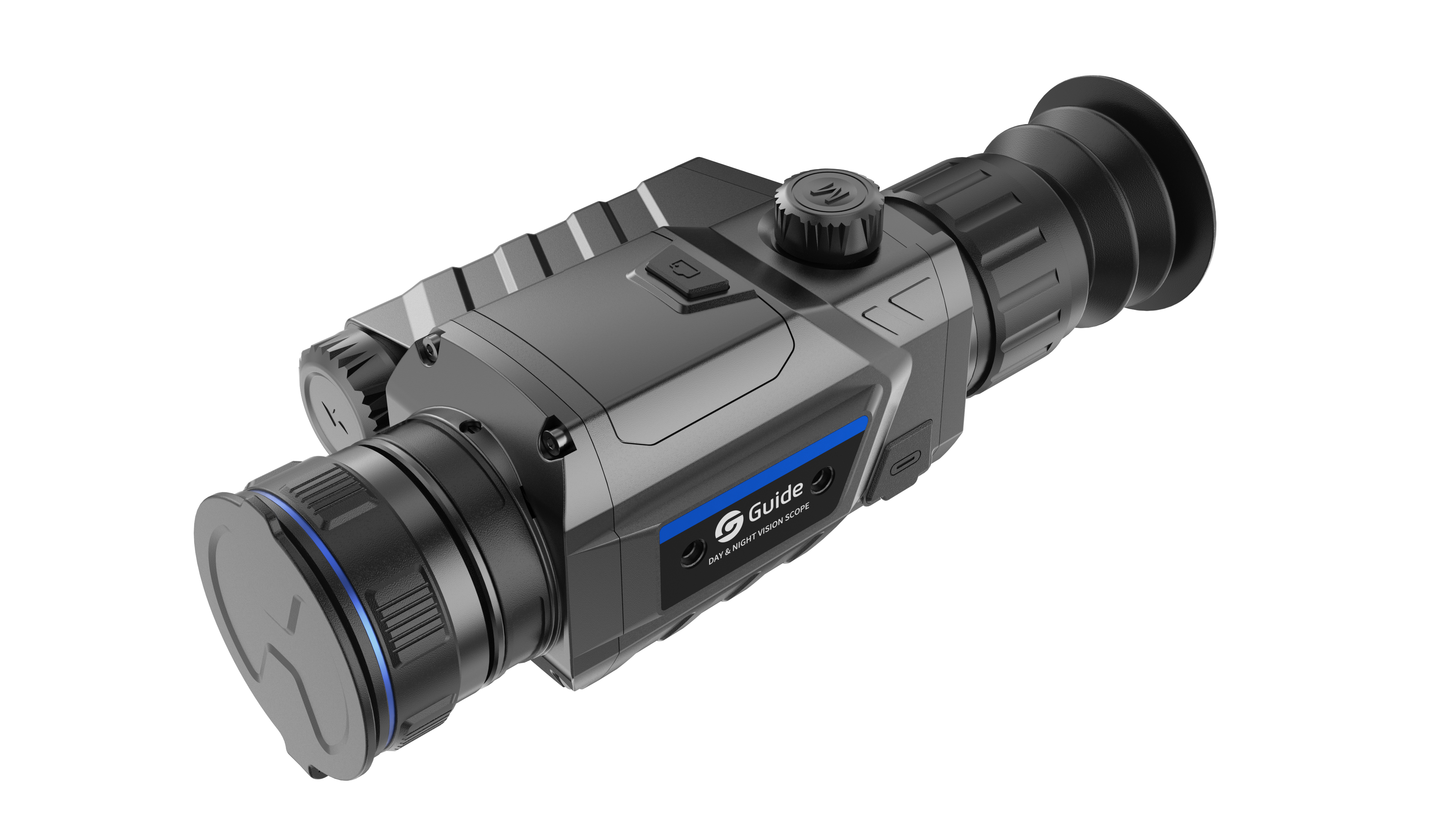

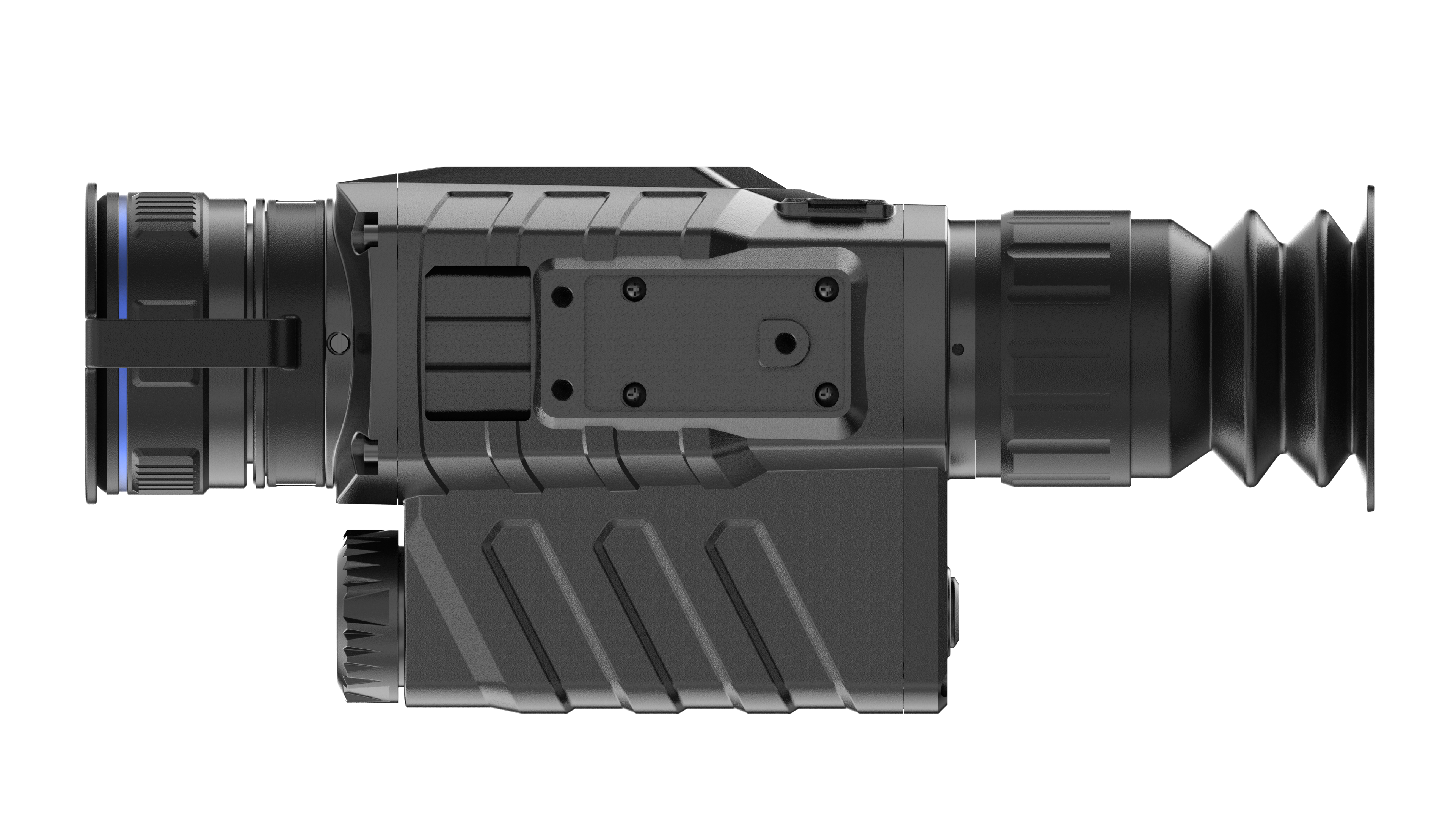

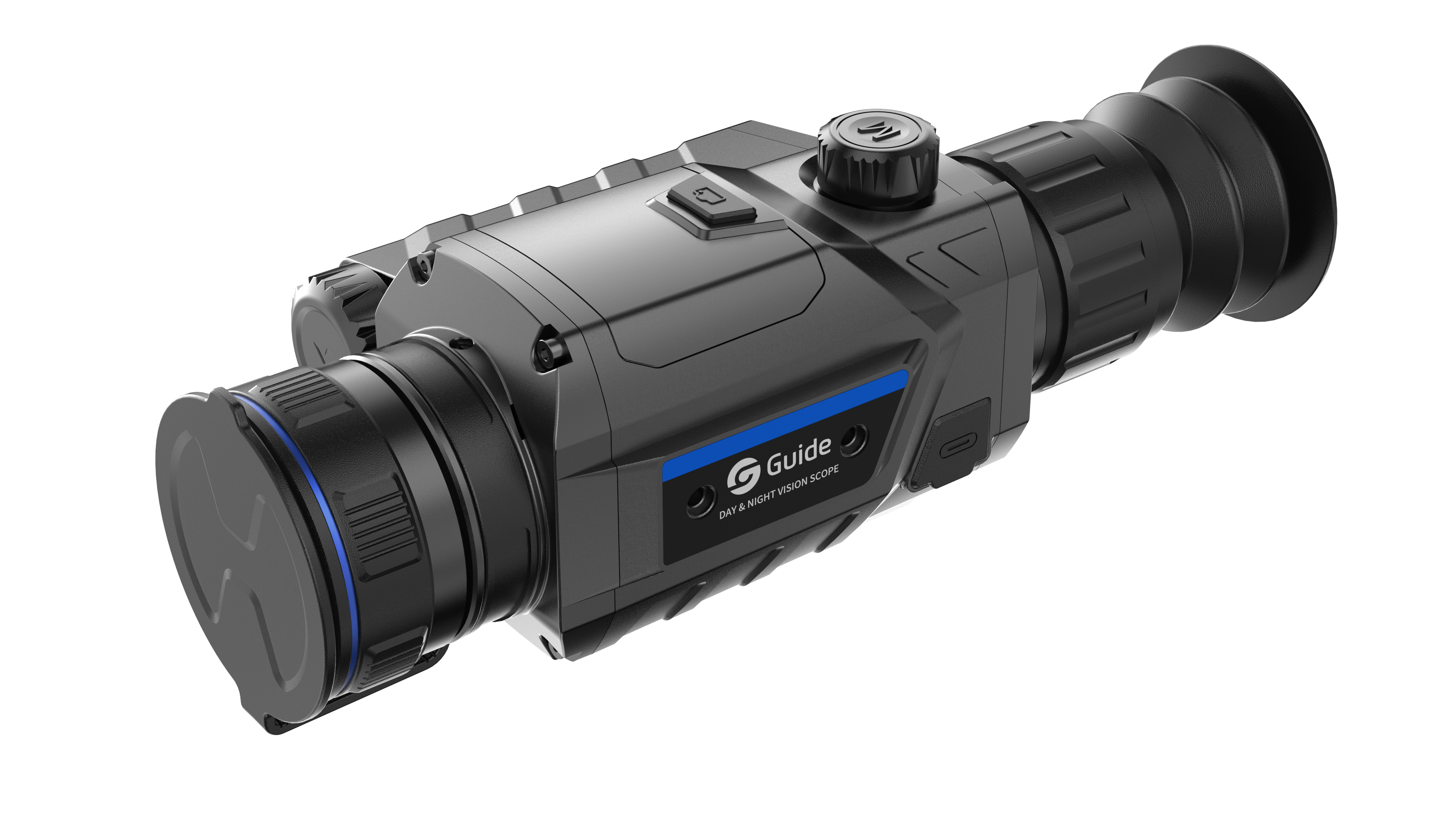

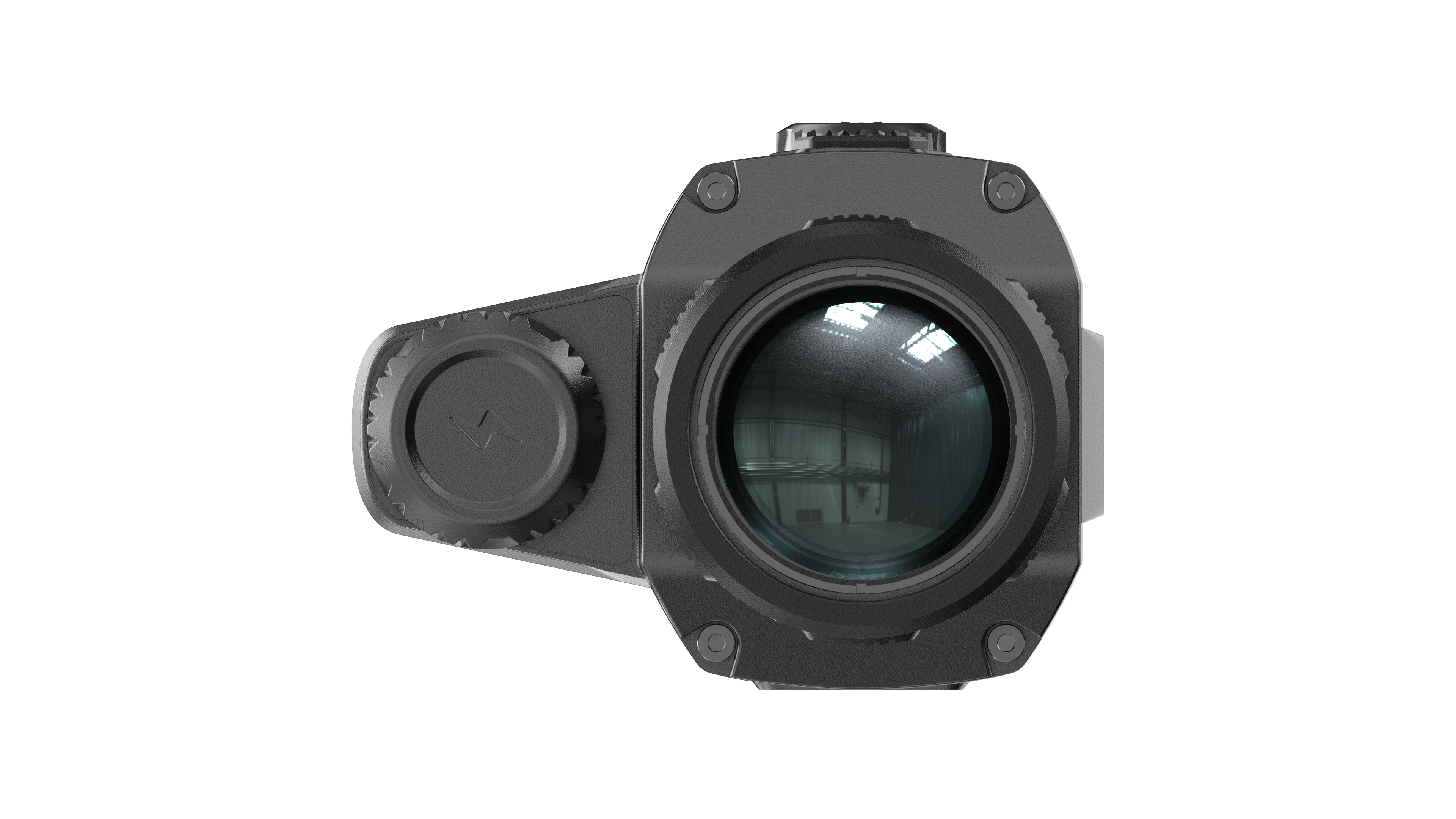

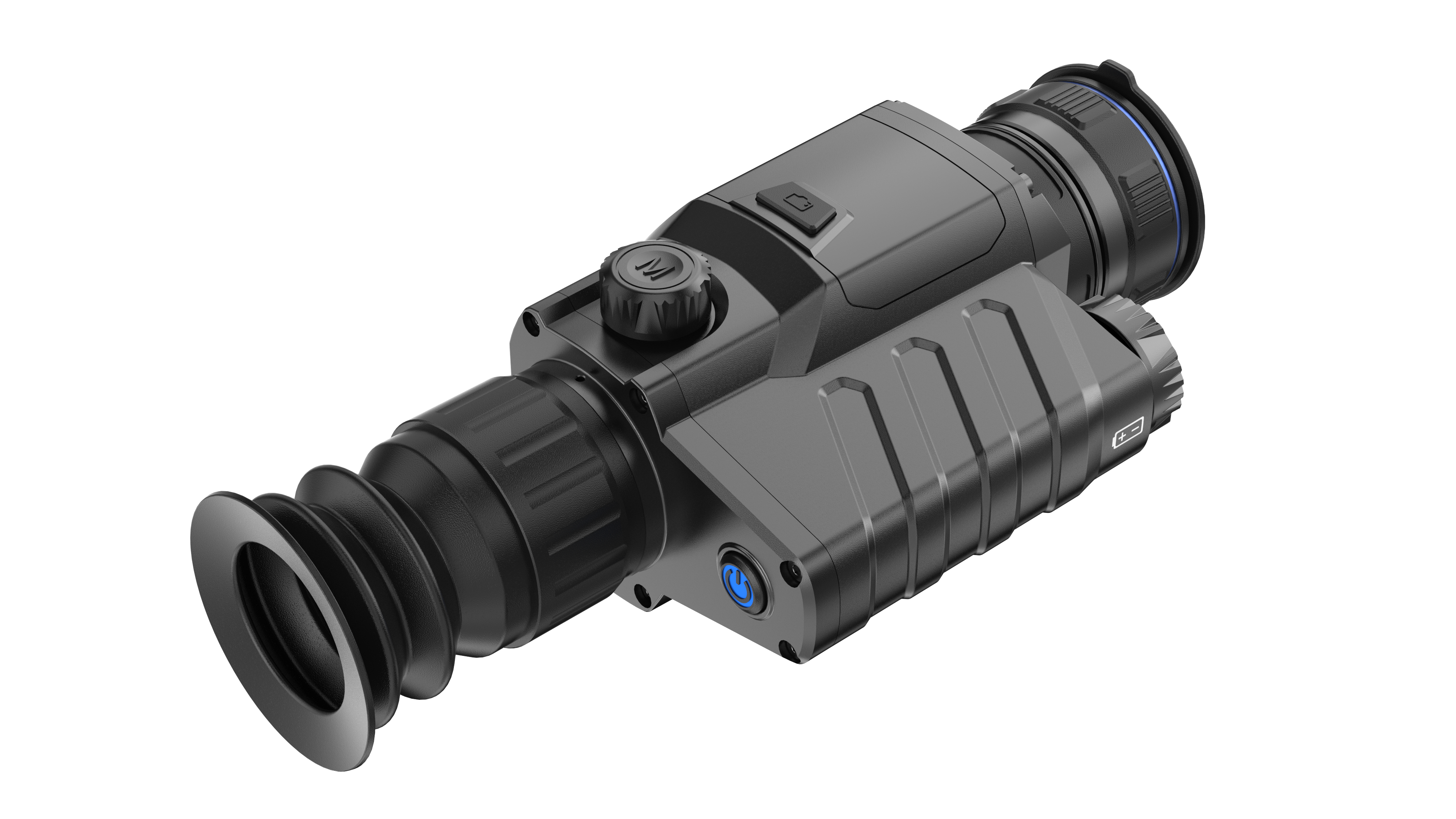

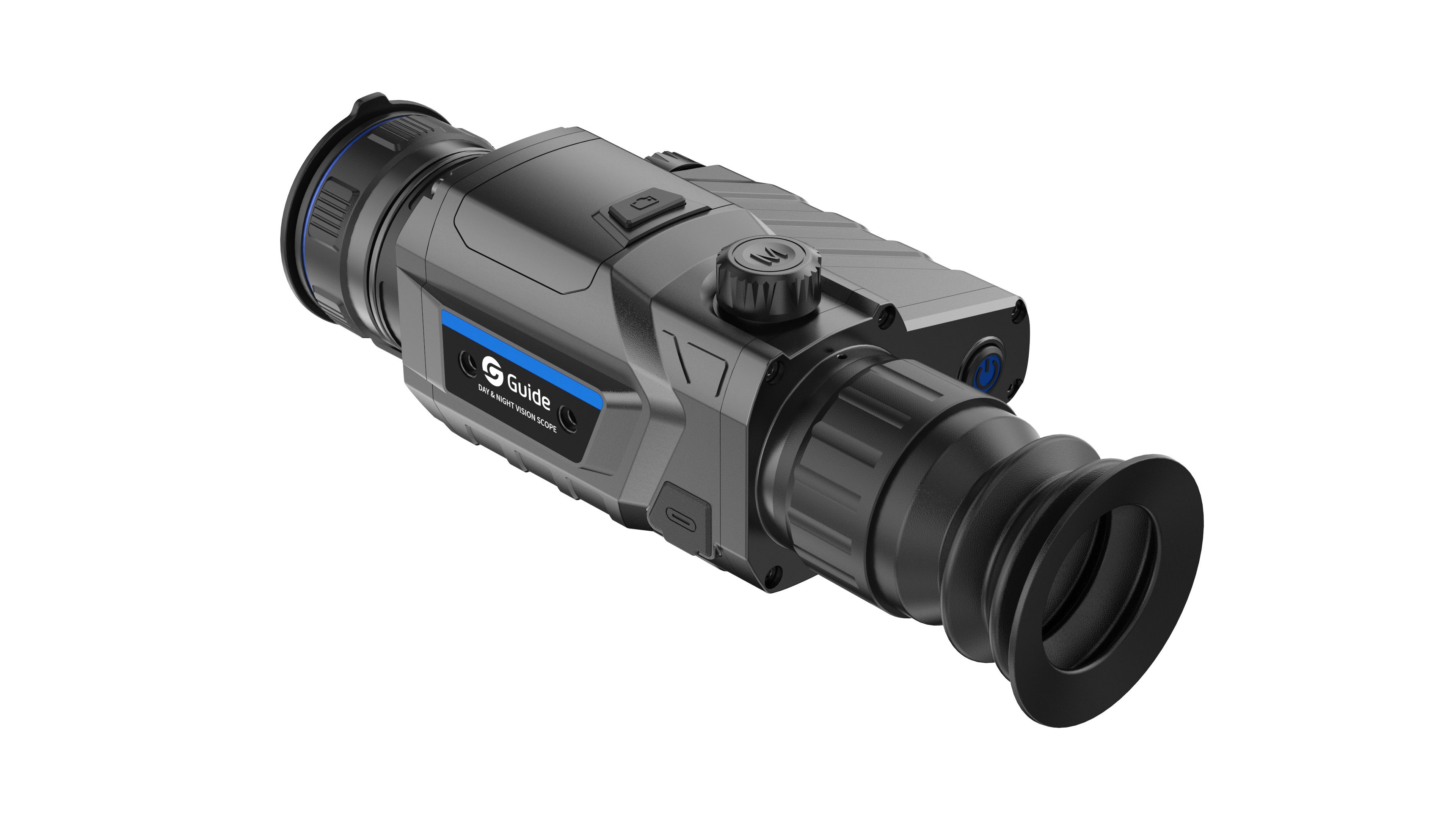

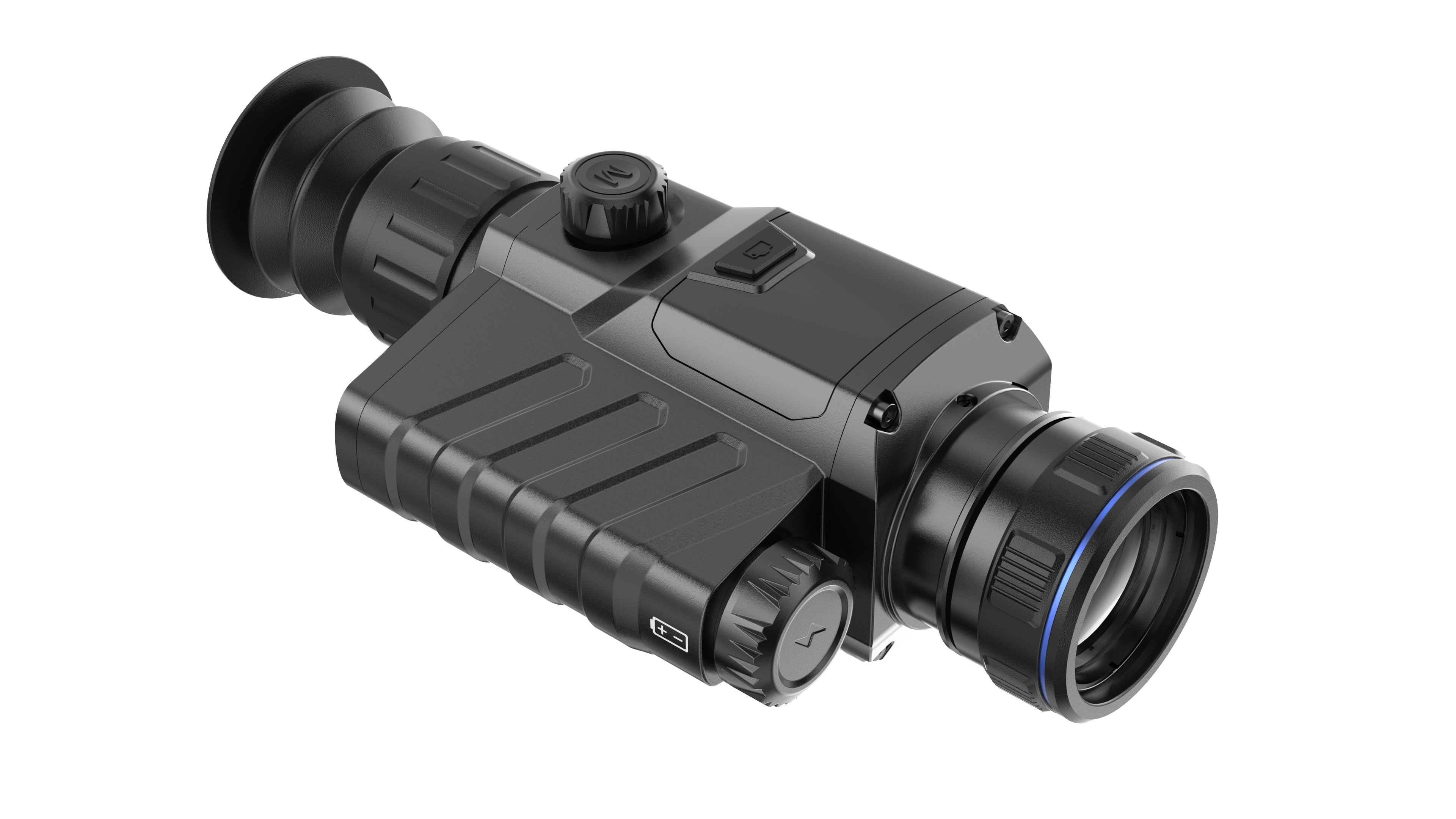

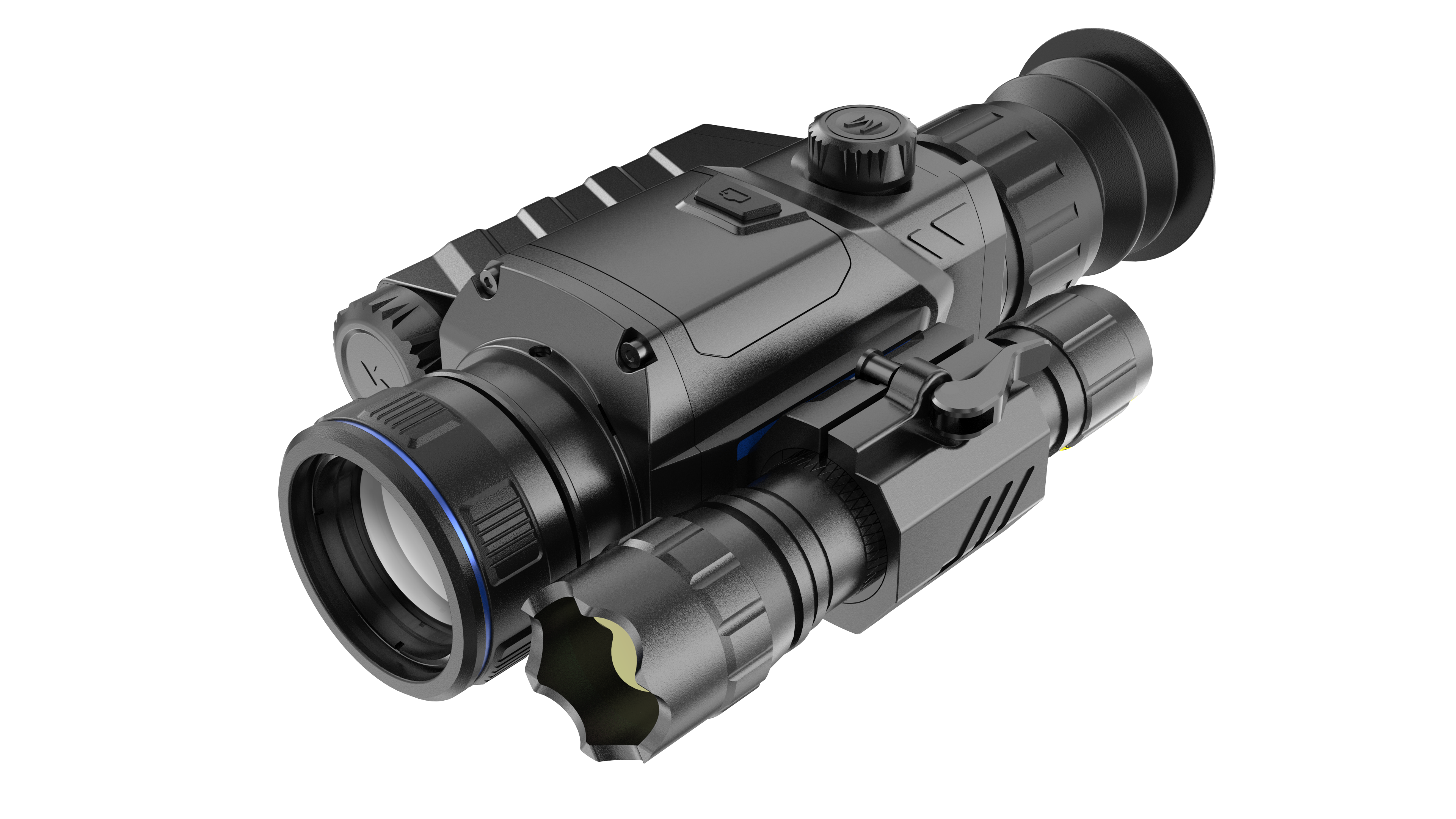

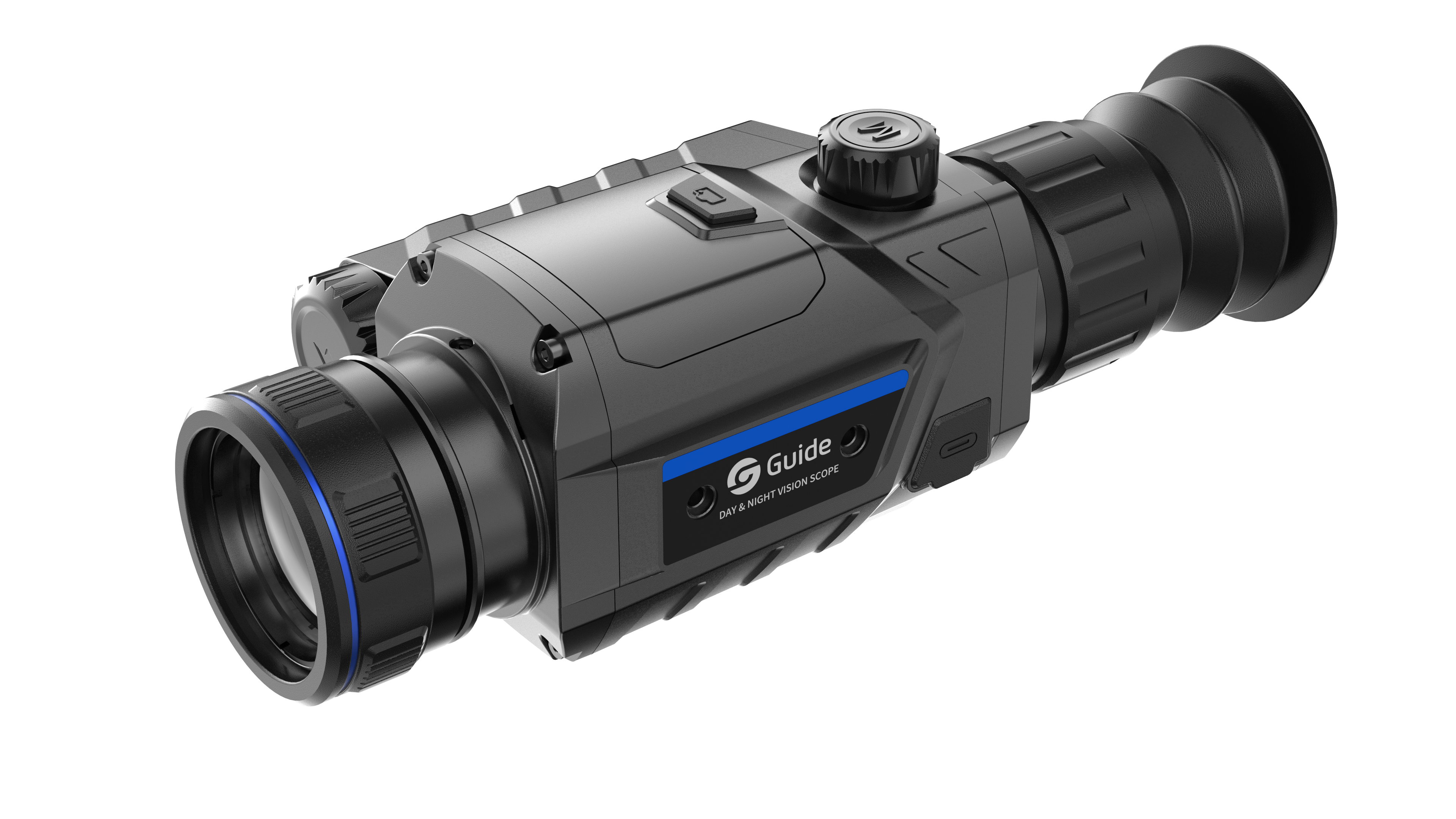

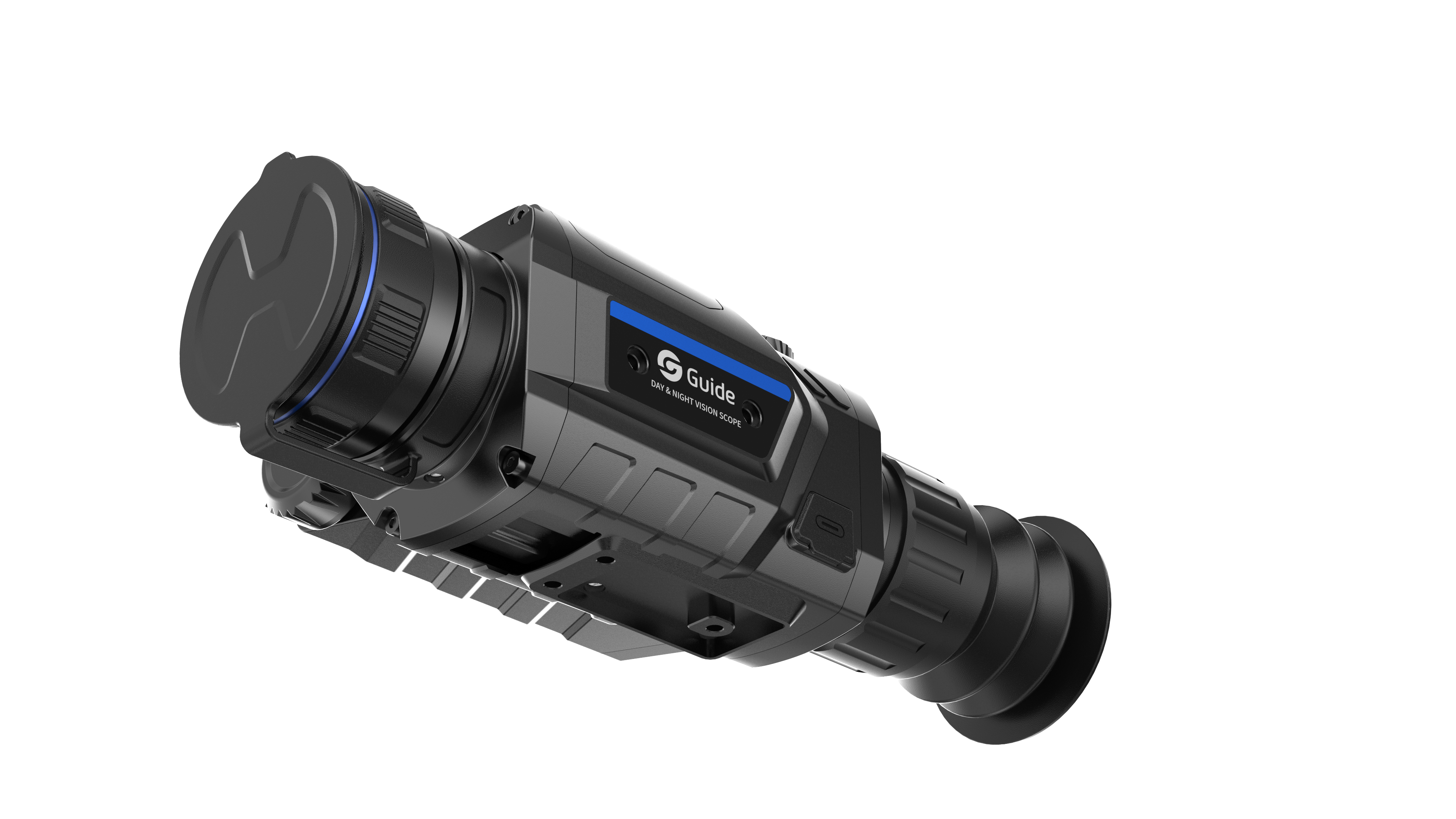

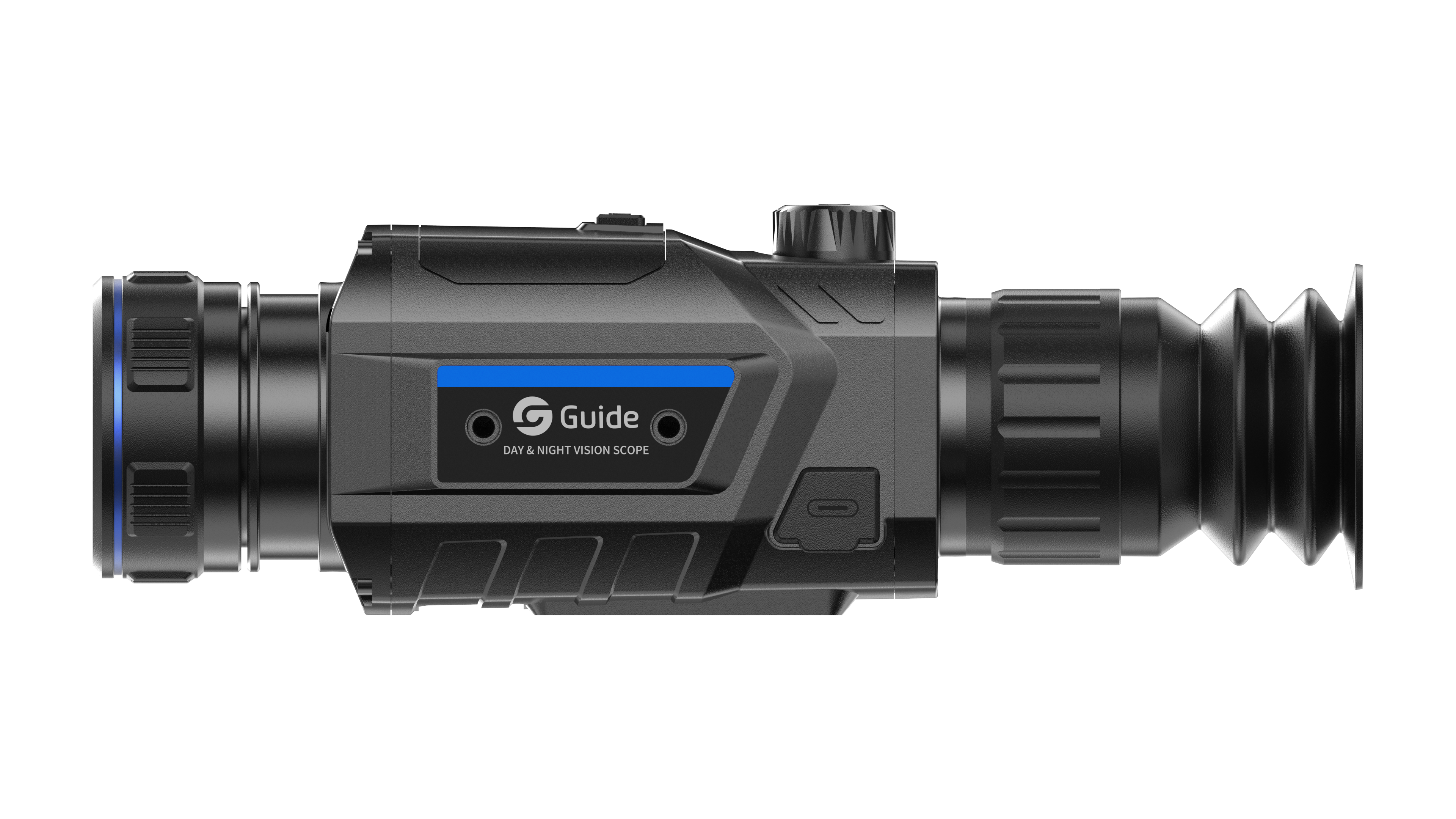

GUIDE Digital Day & Night Vision Scope DR30
€ 879,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
DR30
Product information "GUIDE Digital Day & Night Vision Scope DR30"
The DR Series is a powerful and professional day and night vision scope with outstanding night vision capability, featuring an excellent 1920×1080@4μm CMOS sensor with a 35mm lens to create a large field of view of 12.5°×7.06° while the 1920×1080 full HD OLED display ensures your viewing experience. The 18650 Li-ion battery lasts up to 6 hours max depending on usage, ever worry about insufficient power during a hunting trip. Elevate your vision with the DR Series!
Sensor
Type CMOS
Resolution 1920×1080@4μm
Minimum illuminance 0.001 lux
Frame rate 50Hz
Lens
Focal length 35mm F1.2
Field of view 12.52°×7.06°
Optical zoom 2.175x
Digital zoom 1x to 8x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution FHD 1920×1080
Eyepiece Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x
Video output Analog video
Range Performance
Detection range 500 (with IR 850 nm) / 450 (with IR 940 nm)
Hardware
IR illuminator 850 nm / 940 nm (Alternative)
Functions
Scene modes Day, Night and Low-light Modes
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Power

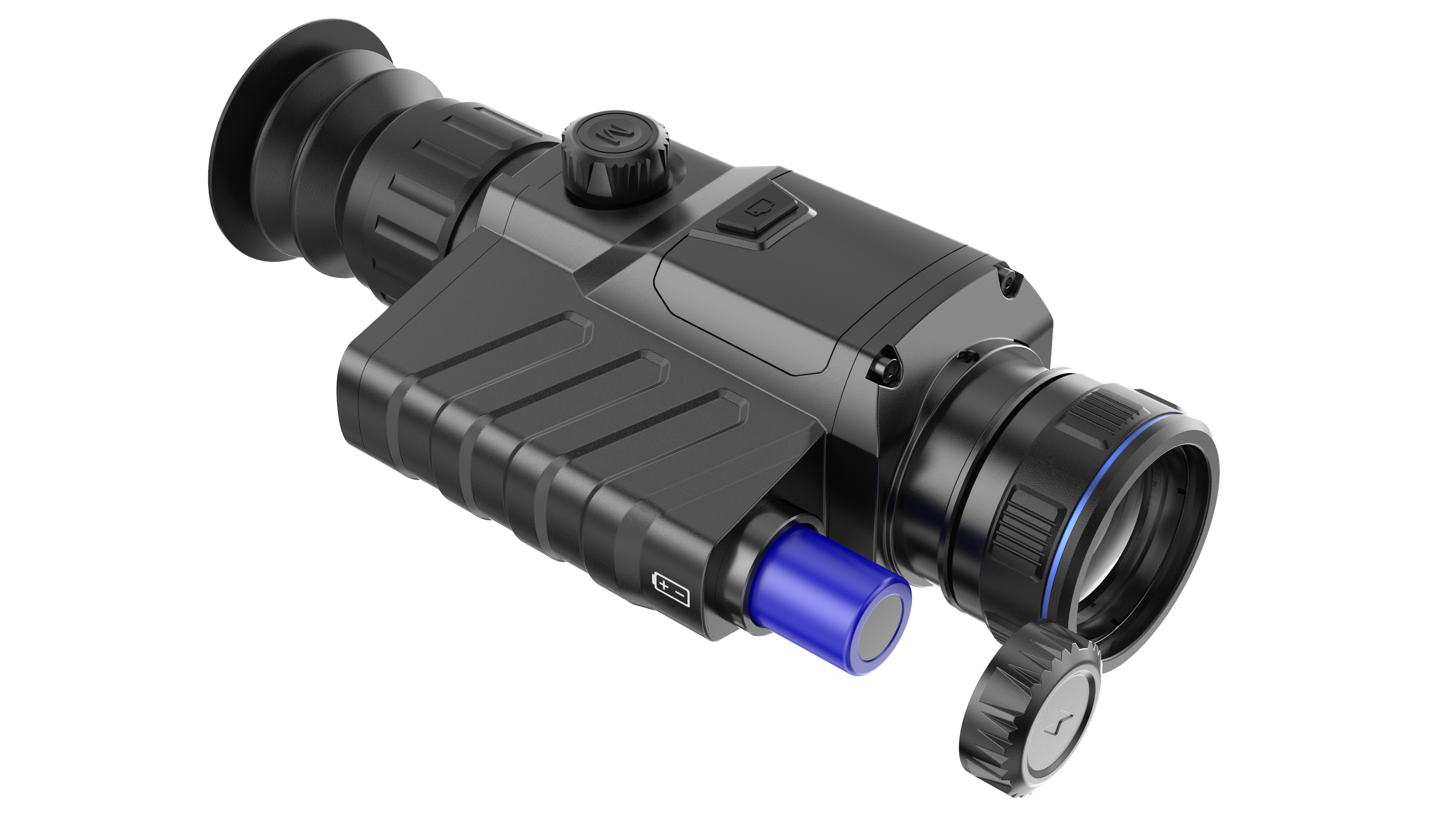

Battery type Single, replaceable 18650 battery
Operating time 6 hours
Interface
USB USB Type-C
Mechanical interface Picatinny
System
Language settings English, Russian, German, French, Italian, Spanish, Japanese, Korean, Polish
Memory capacity 32 GB
Environmental Operating temperature -30°C to 50°C
Storage temperature -40°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 800G/1ms semi-sinosoidal IEC60068-2-27
Encapsulation IP67
Certification CE, FCC, EAC, RoHS
Physical
Weight ≤565 g (without eye mask and battery)
Size ≤218×66×88 mm (without eye mask)

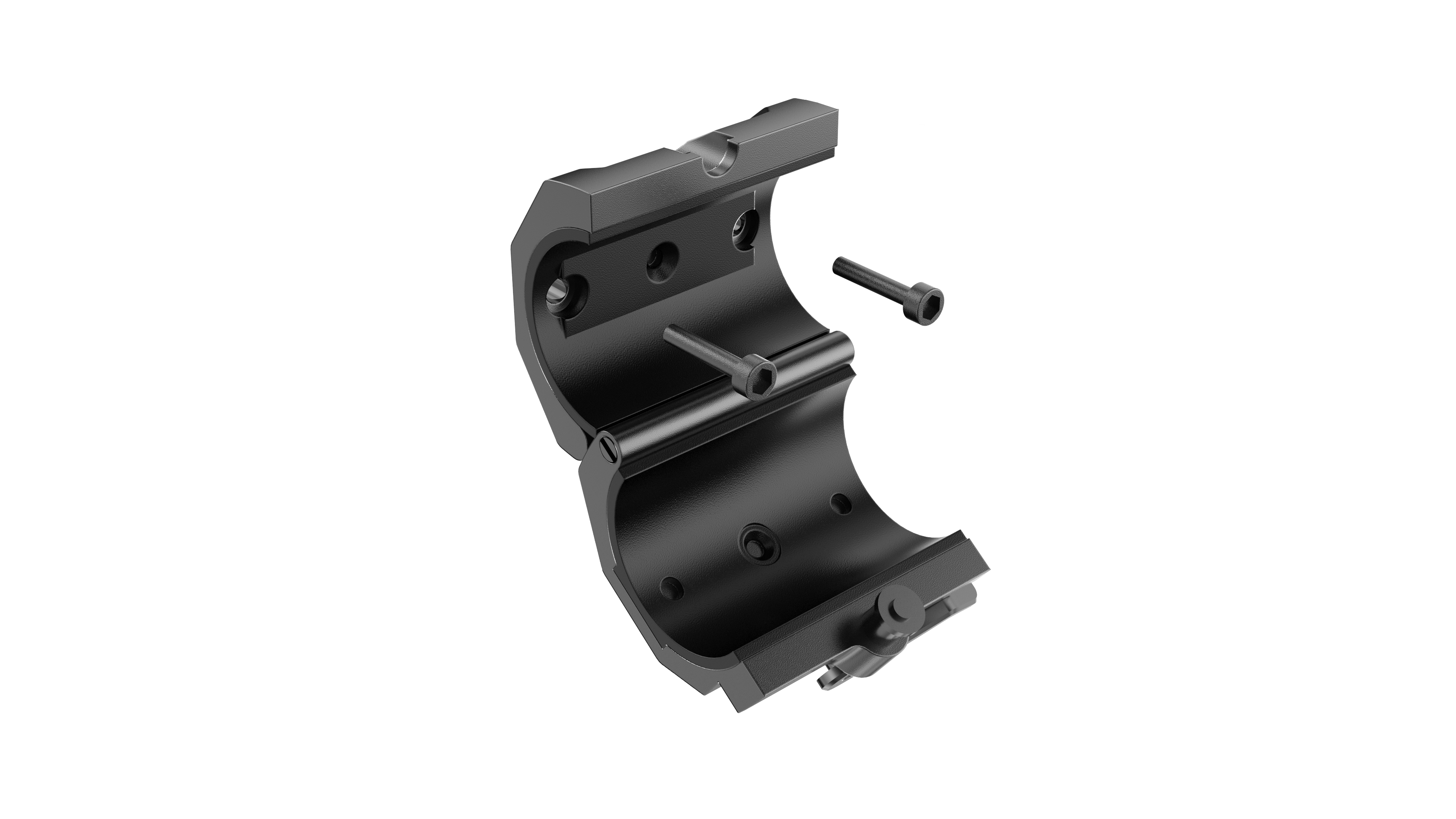

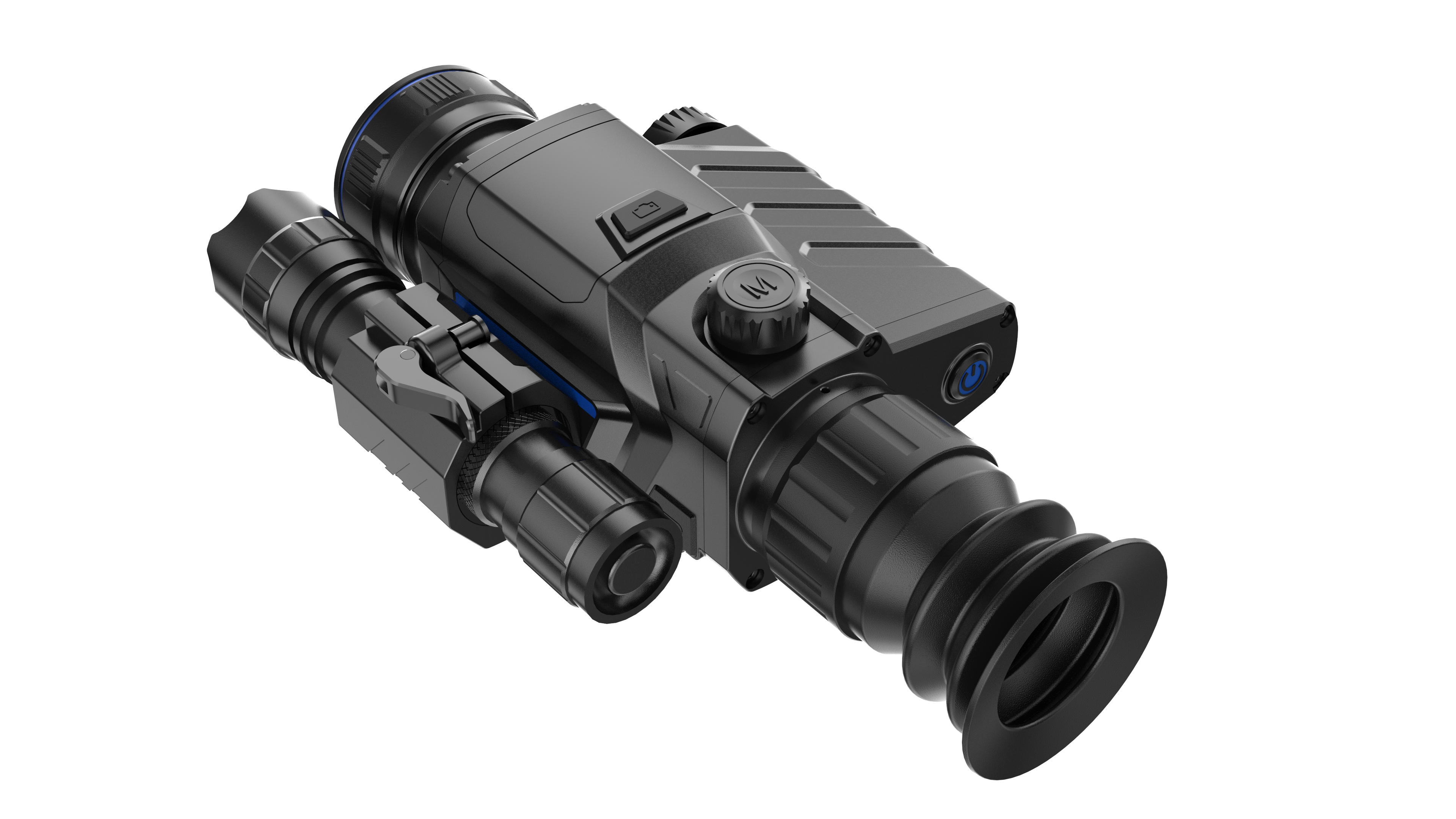

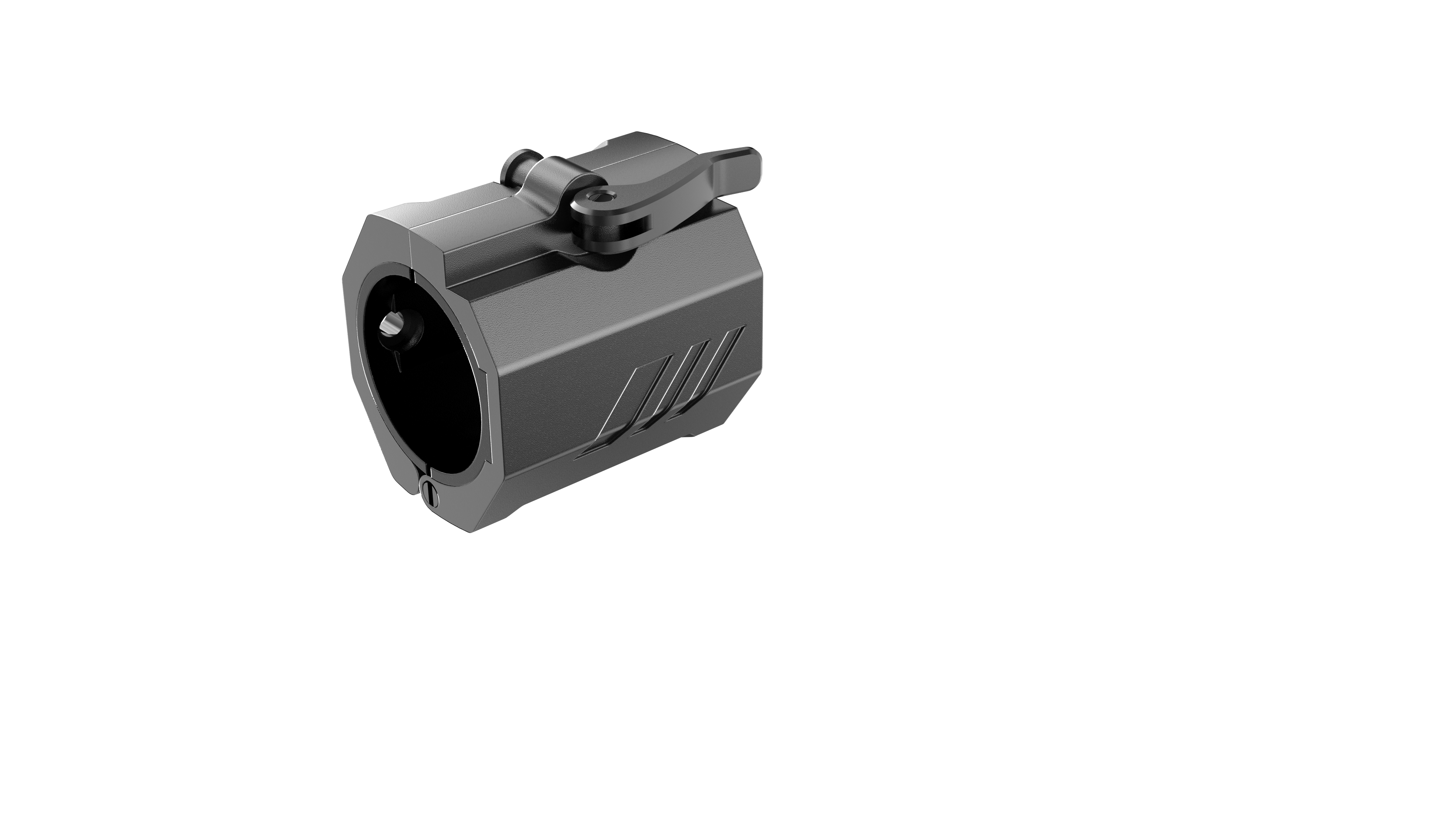

Standard Device, Sight base (Choose from two specifications), lens cover, eye mask, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, USB Type-C cable, IR illuminator, IR illuminator bracket, quick start guide
Optional Battery, Laser rangefinder, Bluetooth controller
- 12.52°x7.06° Ultra large FOV
- 1920×1080OLED display
- OTA upgrade
- 1920x1080 @4µm HD sensor
Ultra Large FOV Experience:
The 1920×1080@4μm sensor resolution comes with a 35mm lens creating a large field of view of 12.5°×7.06° while the 1920×1080 full HD OLED display ensures your viewing experience. Images are smoother and more detailed.
Clear Nighttime Imaging: Upgraded algorithms balance the image brightness on the display when using the scope with an IR illuminator. Additionally, they eliminate flood exposure from foreground objects and increase the brightness of distant objects to a comfortable level, thus offering exceptional crisp images with less noise, ensuring a professional nighttime outdoor experience.
Three Viewing Modes: Day Mode for realistic color rendering, Low-light Mode to capture and display every detail, and Night Mode for every motion capture.
IP67 Waterproof: IP67 offers strong protection even in various harsh outdoor environments such as wet and moist weather, featuring exceptionally high shock resistance up to 800G.
One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
Clear Nighttime Imaging: Upgraded algorithms balance the image brightness on the display when using the scope with an IR illuminator. Additionally, they eliminate flood exposure from foreground objects and increase the brightness of distant objects to a comfortable level, thus offering exceptional crisp images with less noise, ensuring a professional nighttime outdoor experience.
Three Viewing Modes: Day Mode for realistic color rendering, Low-light Mode to capture and display every detail, and Night Mode for every motion capture.
IP67 Waterproof: IP67 offers strong protection even in various harsh outdoor environments such as wet and moist weather, featuring exceptionally high shock resistance up to 800G.
One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
OTA Upgrade:
Firmware updates have become more intuitive, easier, and more convenient through OTA upgrades. By connecting to TargetIR APP, you can automatically update the firmware at home.
Sensor
Type CMOS
Resolution 1920×1080@4μm
Minimum illuminance 0.001 lux
Frame rate 50Hz
Lens
Focal length 35mm F1.2
Field of view 12.52°×7.06°
Optical zoom 2.175x
Digital zoom 1x to 8x
Focus Manual
Display
Display type 0.39’’ AMOLED
Resolution FHD 1920×1080
Eyepiece Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x
Video output Analog video
Range Performance
Detection range 500 (with IR 850 nm) / 450 (with IR 940 nm)
Hardware
IR illuminator 850 nm / 940 nm (Alternative)
Functions
Scene modes Day, Night and Low-light Modes
Recording function Photo/Video
WIFI 2.4G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Power
Battery type Single, replaceable 18650 battery
Operating time 6 hours
Interface
USB USB Type-C
Mechanical interface Picatinny
System
Language settings English, Russian, German, French, Italian, Spanish, Japanese, Korean, Polish
Memory capacity 32 GB
Environmental Operating temperature -30°C to 50°C
Storage temperature -40°C to 70°C
Humidity 10 % to 95 % non-condensing
Shock 800G/1ms semi-sinosoidal IEC60068-2-27
Encapsulation IP67
Certification CE, FCC, EAC, RoHS
Physical
Weight ≤565 g (without eye mask and battery)
Size ≤218×66×88 mm (without eye mask)
Standard Device, Sight base (Choose from two specifications), lens cover, eye mask, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, USB Type-C cable, IR illuminator, IR illuminator bracket, quick start guide
Optional Battery, Laser rangefinder, Bluetooth controller
